Air Flow Meter/Sensor: Locations

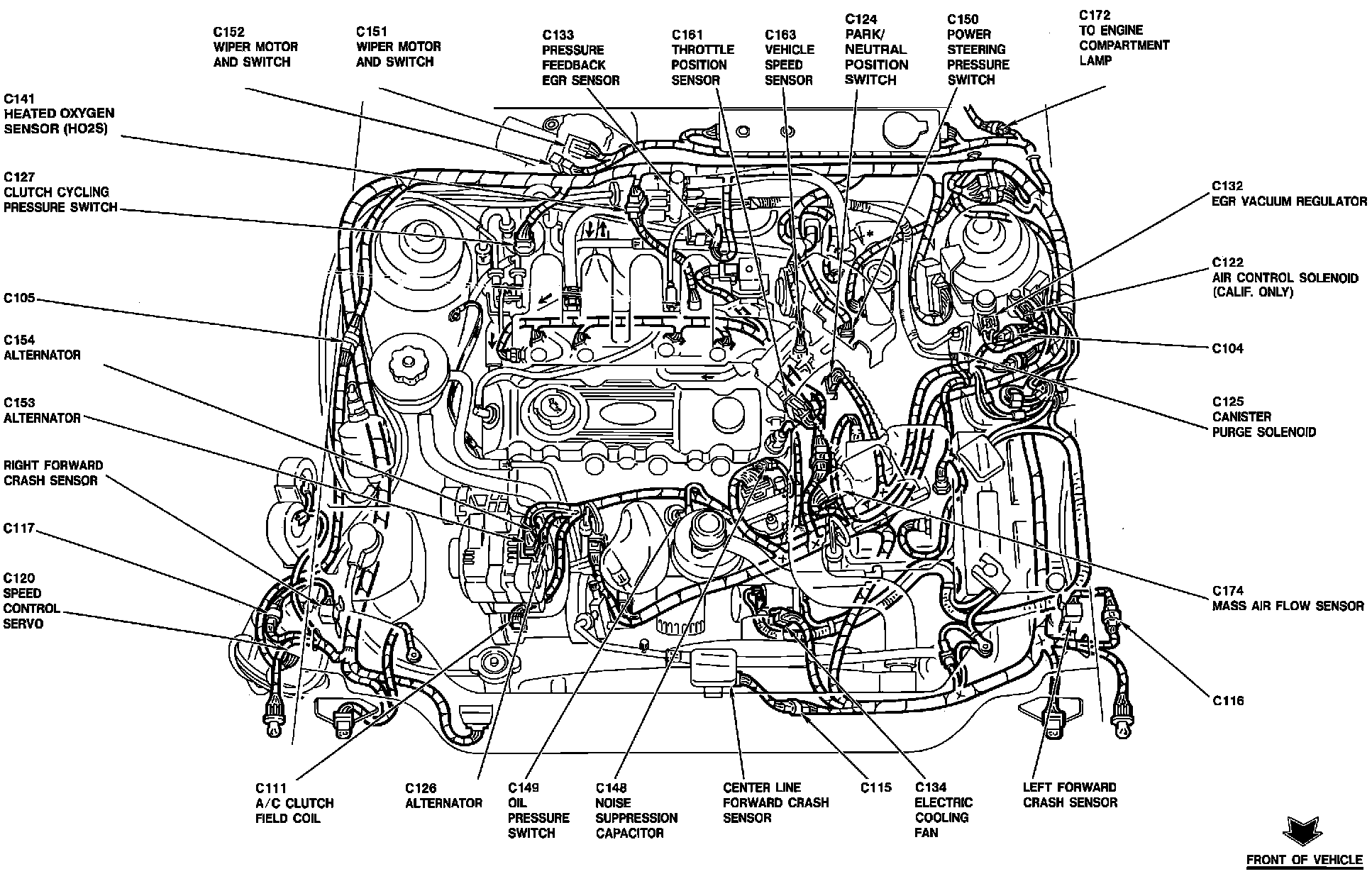

Component Locations:





The Mass Air Flow Sensor is located in the LH side of the engine compartment, on the air cleaner.
