DS - Programmable Speedometer/Odometer Module
>>
DS - Testing Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

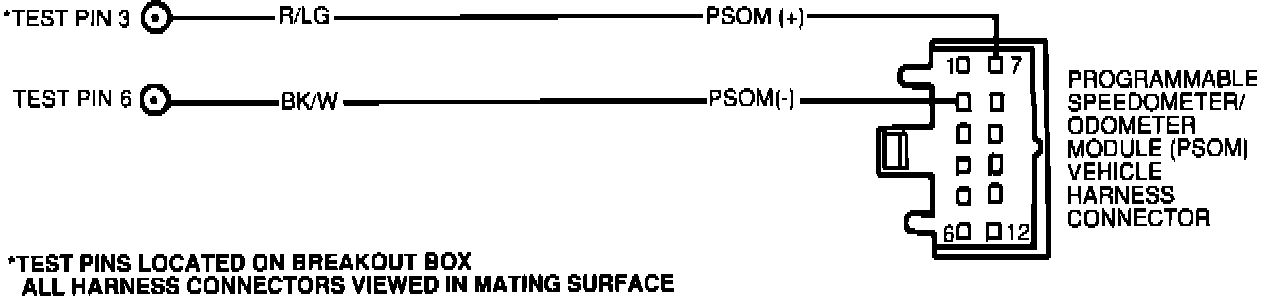

DS - Testing Schematic
Speedometer/Odometer Module:
