Tempo L4-140 2.3L HSC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>
Normal Scan Data Values (Includes PIDs)
>>
Automatic Transmission
>>
Non-Electronic Control
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Non-Electronic Control

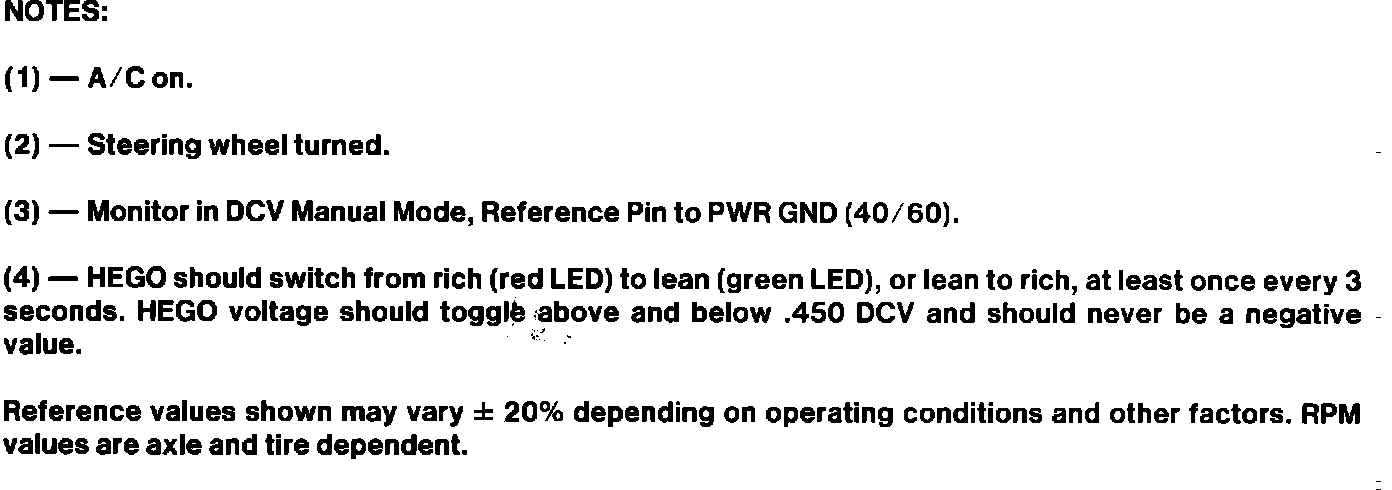

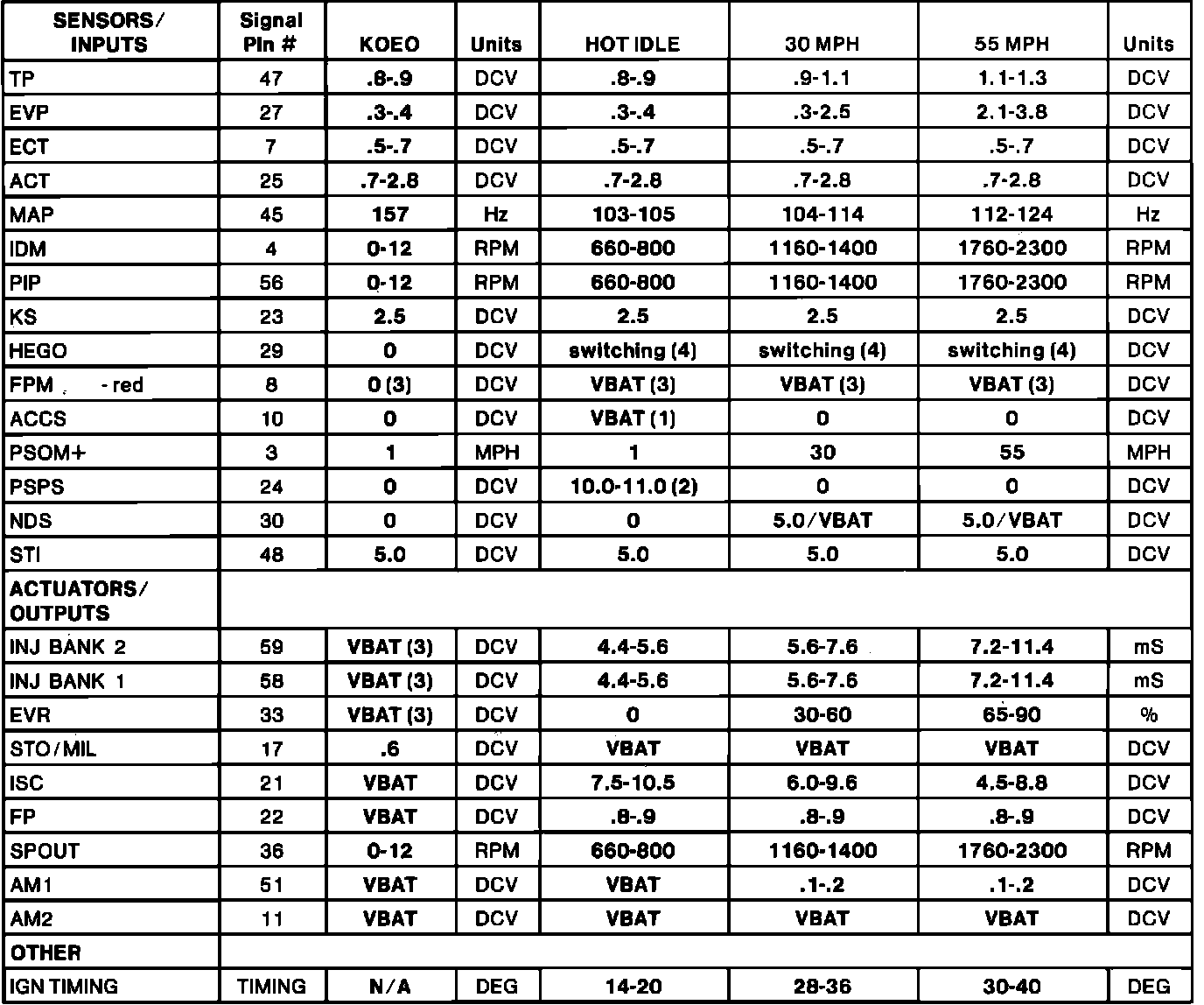

Reference Values:
Reference Values:
