Passive Restraint Control Module

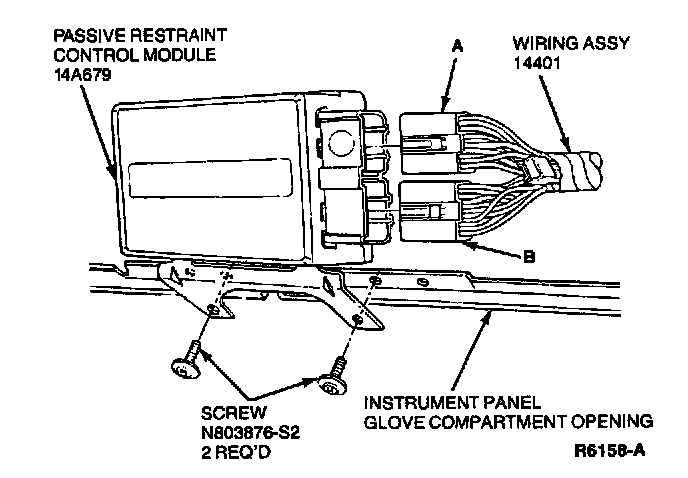

Control Module

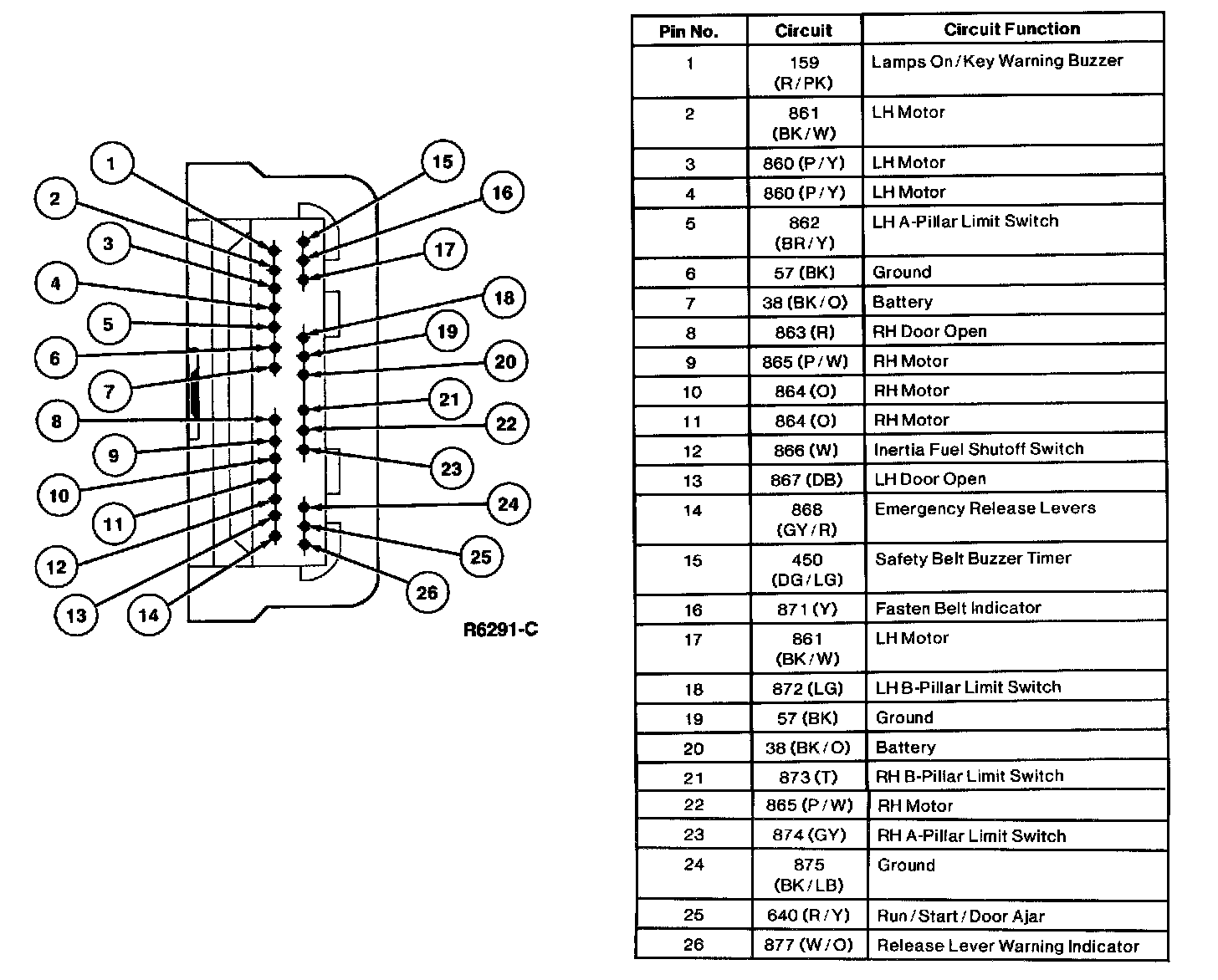

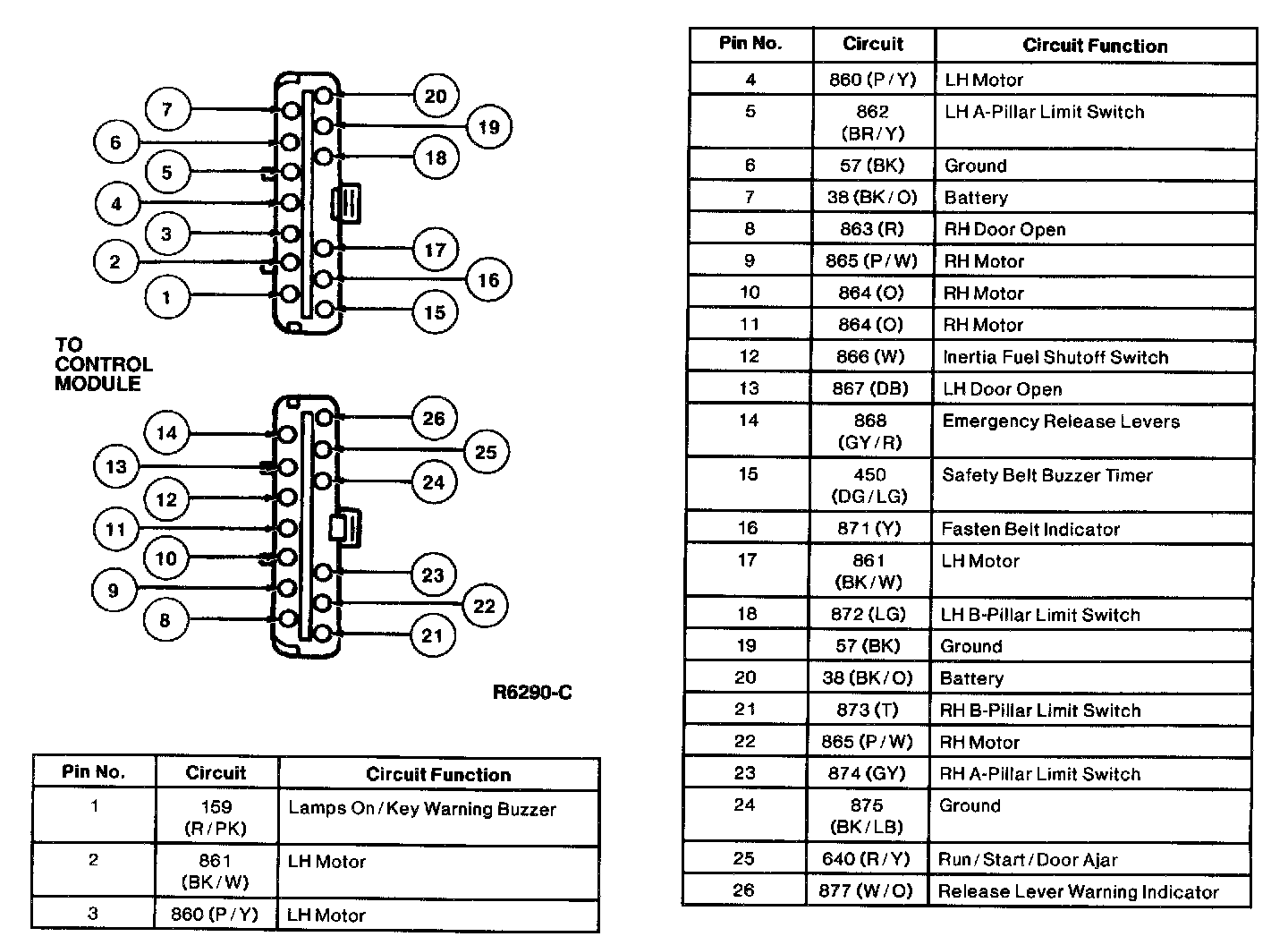

Connectors A and B are part of the wiring assembly. The control module is located beneath the instrument panel to the right of the steering column.
