Pinpoint Test BARO - Barometric Pressure Sensor

NOTE: Enter this procedure only when Code 14 is displayed during QUICK TESTS procedure or when directed here from another PINPOINT TEST. To prevent unnecessary replacement of components, note following non-EEC items may be at fault: unusually high or low atmospheric pressure, blocked vacuum lines, or basic mechanical engine components.

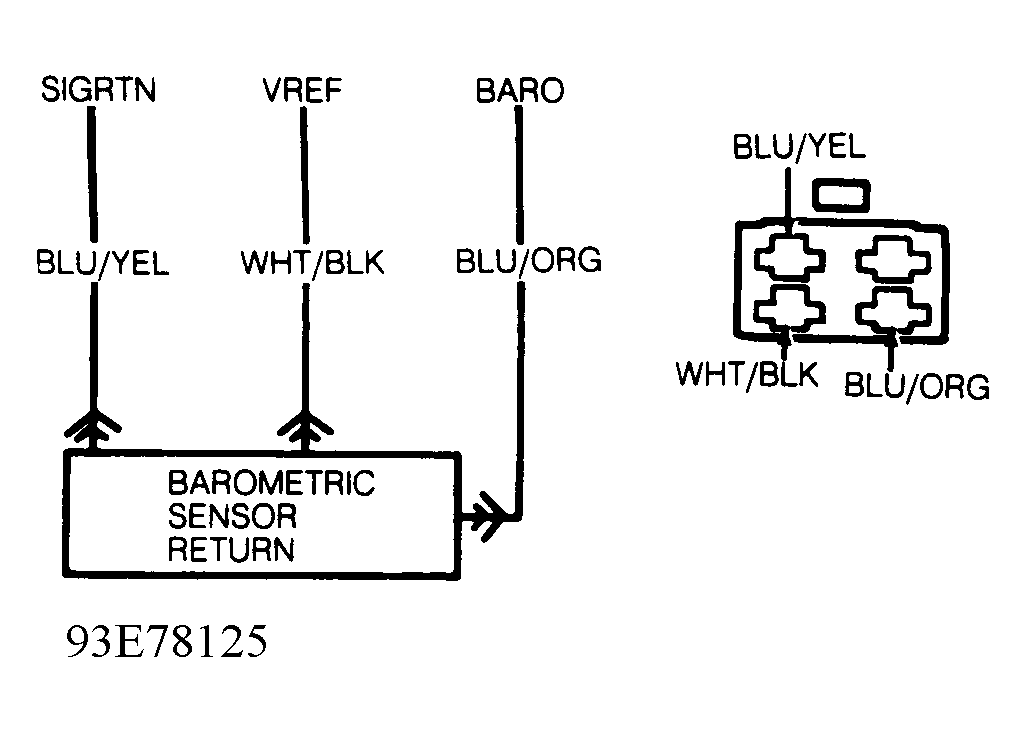

Fig 1: Identifying BARO Sensor Circuits (BARO)

BARO sensor is incorporated into PCM; it cannot be checked or serviced separately. If Code 14 is set and cannot be cleared, replace PCM.

BAROMETRIC PRESSURE SENSOR OUTPUT VOLTAGE

Vacuum (In. Hg)

⁽¹⁾ Voltage

3.84

3.36

2.66

1.93

1.26

.58

⁽¹⁾	Voltage may differ by 15 percent.
