Switch Monitor Test: VOM

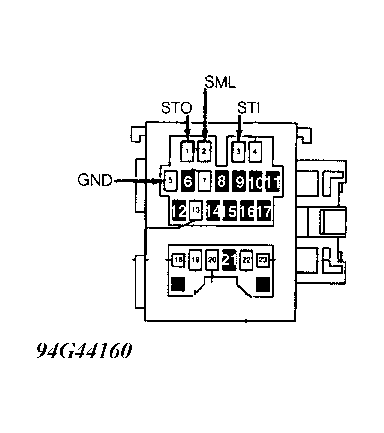

1) Ground STI connector. Connect VOM positive lead to SML terminal on self-test connector. Connect negative lead to ground. See Figure .
2) Operate each switch listed in SWITCH MONITOR TEST table below. Note output on VOM as each switch is operated. Go to specified PINPOINT TEST if any switch does not meet specification.
NOTE:
DO NOT
move throttle, clutch, or transmission range selector lever unless so directed.
SWITCH MONITOR TEST
| Switch | VOM Indication/Condition | (1) Pinpoint Test | ||||||
|---|---|---|---|---|---|---|---|---|
| A/C Switch | Less Than 1.5 Volts; A/C & Blower Switch On | STG | ||||||
| Blower Motor Switch | Less Than 1.5 Volts; Switch Set To "2" Or Higher | STG | ||||||
| Brake On/Off Switch | Less Than 1.5 Volts; Brake Pedal Partially Pressed | STP | ||||||
| Clutch Engage/Neutral Gear Switch (2) | Less Than 1.5 Volts; In Gear, Clutch Released | STG | ||||||
| Coolant Temperature Switch | Less Than 1.5 Volts; Cooling Fan On | STP | ||||||
| Cooling Fan Relay | Less Than 1.5 Volts; Accelerator Pedal Pressed (3) | ROC | ||||||
| Defrost Switch | Less Than 1.5 Volts; Defrost Switch On | STP | ||||||
| Headlight Switch | Less Than 1.5 Volts; Headlight Switch On | STP | ||||||
| Idle Switch | Less Than 1.5 Volts; Accelerator Pedal Pressed | STG | ||||||
| Manual Lever Position Switch | Less Than 1.5 Volts; Transaxle In Park Or Neutral | STP | ||||||
| Wide Open Throttle Switch | Less Than 1.5 Volts; Accelerator Pedal Fully Pressed | STG | ||||||
|
||||||||
