Master Window Switch With Door Lock & Keyless Entry

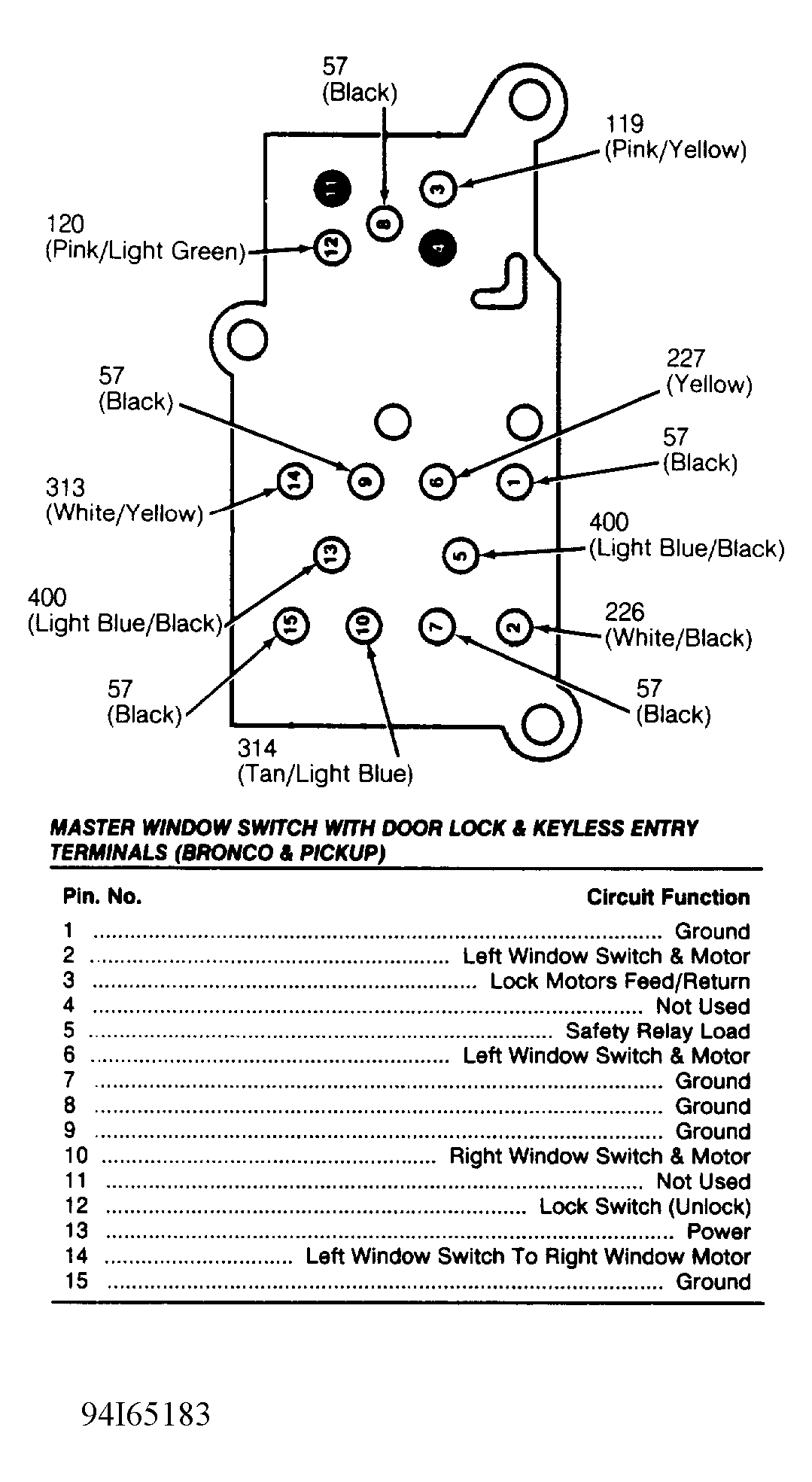

Testing information is not available from manufacturer. See illustration for master window switch with door lock and keyless entry terminal locations. See Fig 1 .
MASTER WINDOW SWITCH WITH DOOR LOCK & KEYLESS ENTRY TERMINALS
| Pin. No. | Circuit Function |
|---|---|
| 1 | Ground |
| 2 | Left Window Switch & Motor |
| 3 | Lock Motors Feed/Return |
| 4 | Not Used |
| 5 | Safety Relay Load |
| 6 | Left Window Switch & Motor |
| 7 | Ground |
| 8 | Ground |
| 9 | Ground |
| 10 | Right Window Switch & Motor |
| 11 | Not Used |
| 12 | Lock Switch (Unlock) |
| 13 | Power |
| 14 | Left Window Switch To Right Window Motor |
| 15 | Ground |
