Right Window Switch With Door Lock

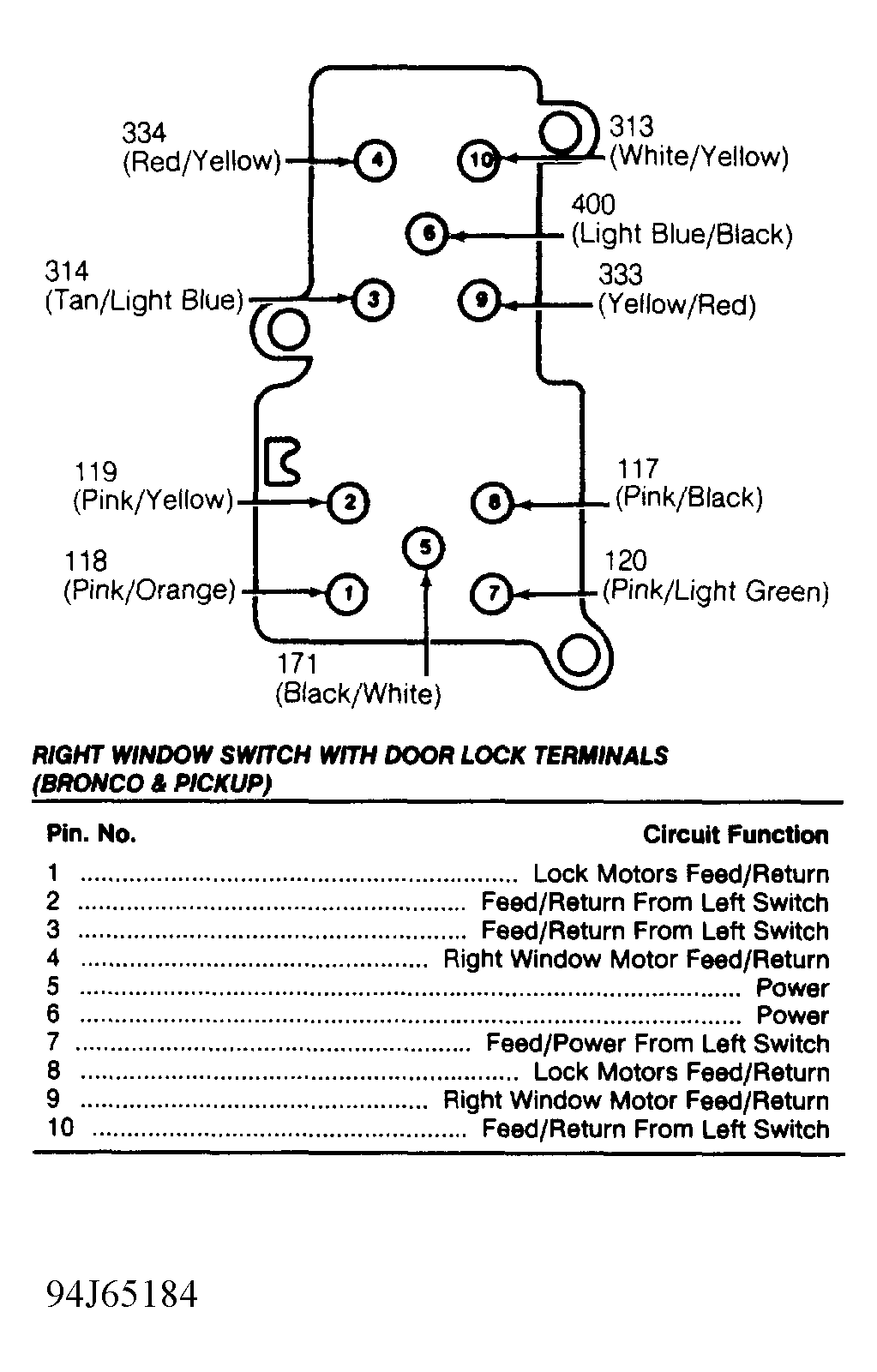

Testing information is not available from manufacturer. See illustration for master window switch with door lock terminal locations. See Fig 1 .
RIGHT WINDOW SWITCH WITH DOOR LOCK TERMINALS
| Pin. No. | Circuit Function |
|---|---|
| 1 | Lock Motors Feed/Return |
| 2 | Feed/Return From Left Switch |
| 3 | Feed/Return From Left Switch |
| 4 | Right Window Motor Feed/Return |
| 5 | Power |
| 6 | Power |
| 7 | Feed/Power From Left Switch |
| 8 | Lock Motors Feed/Return |
| 9 | Right Window Motor Feed/Return |
| 10 | Feed/Return From Left Switch |
