Tailgate Window Switch

  1. Remove window switch from vehicle. See WINDOW SWITCH under REMOVAL & INSTALLATION. Use a self-powered test light or ohmmeter to test window switch. With switch in neutral position, there should be continuity between terminals No. 1, 2, and 3. See Fig 1 .
  2. With rear window glass up position, there should be continuity between terminals No. 1 and 5, and No. 2 and 4. With rear window glass in down position, there should be continuity between terminals No. 2 and 5, and No. 3 and 4. If window switch does operate as specified, replace tailgate mounted window switch.

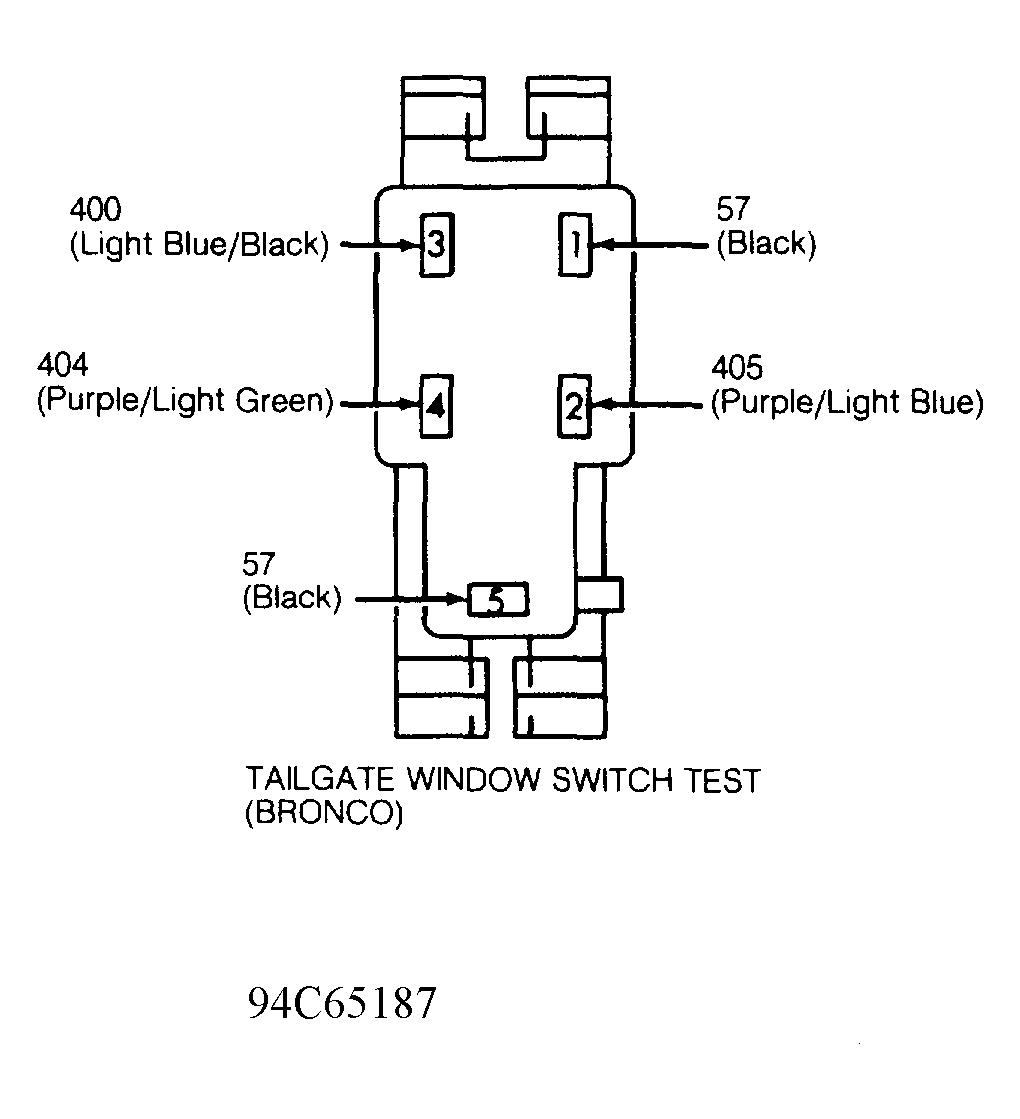

Fig 1: Bronco Tailgate Instrument Panel Mounted Window Switch Terminals ID
G94C65187Courtesy of FORD MOTOR CO.
