On-Board Self-Tests: Notes

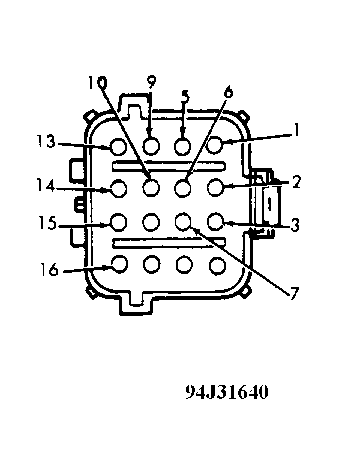

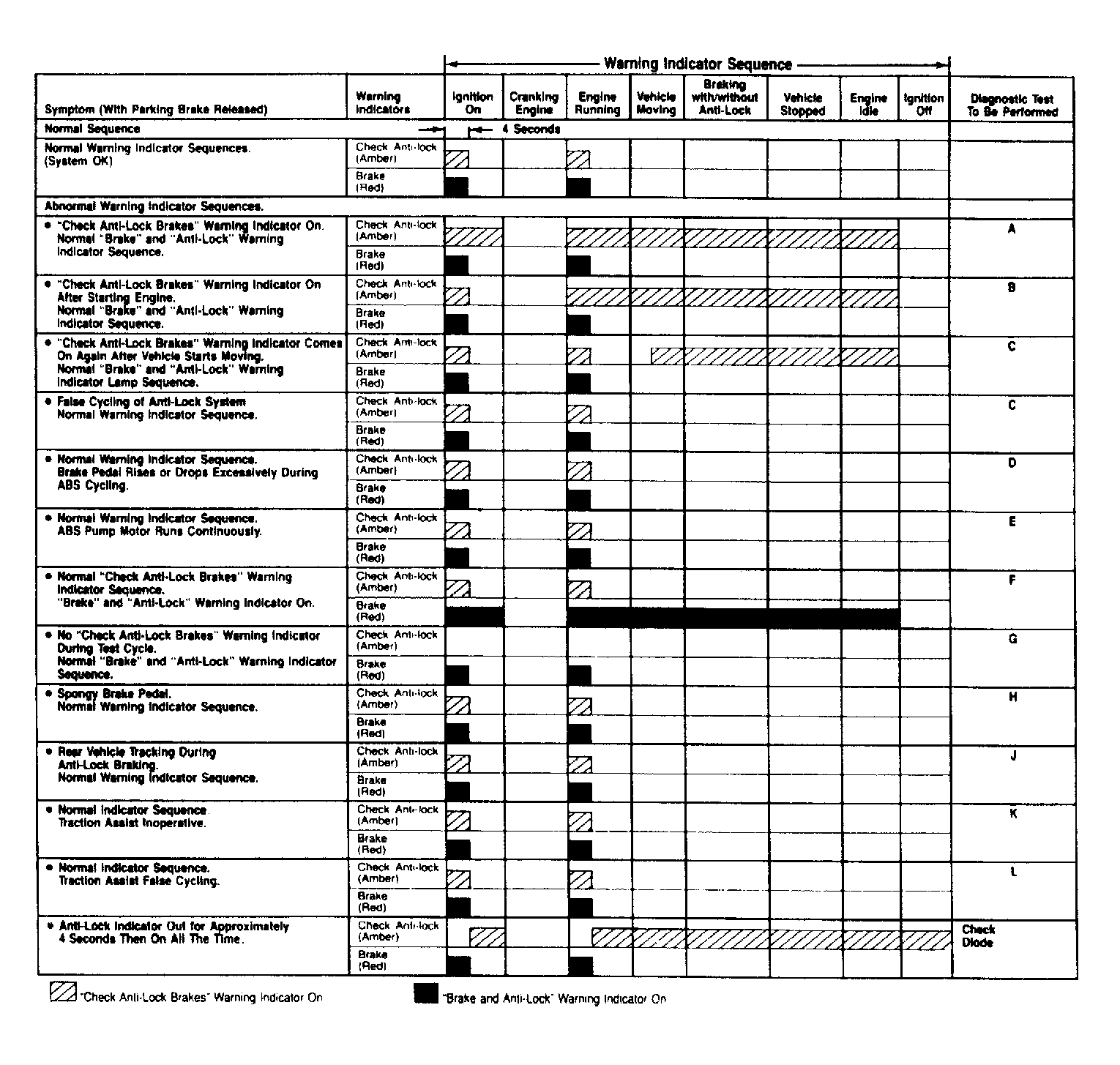

NOTE: Tests require Breakout Box (014-00322) and ABS Adapter (T90P-50-ALA). See Figure for WARNING LIGHT SYMPTOM SEQUENCE CHART. See Figure -13 for pin locations and circuit identification.
