Terminal Identification

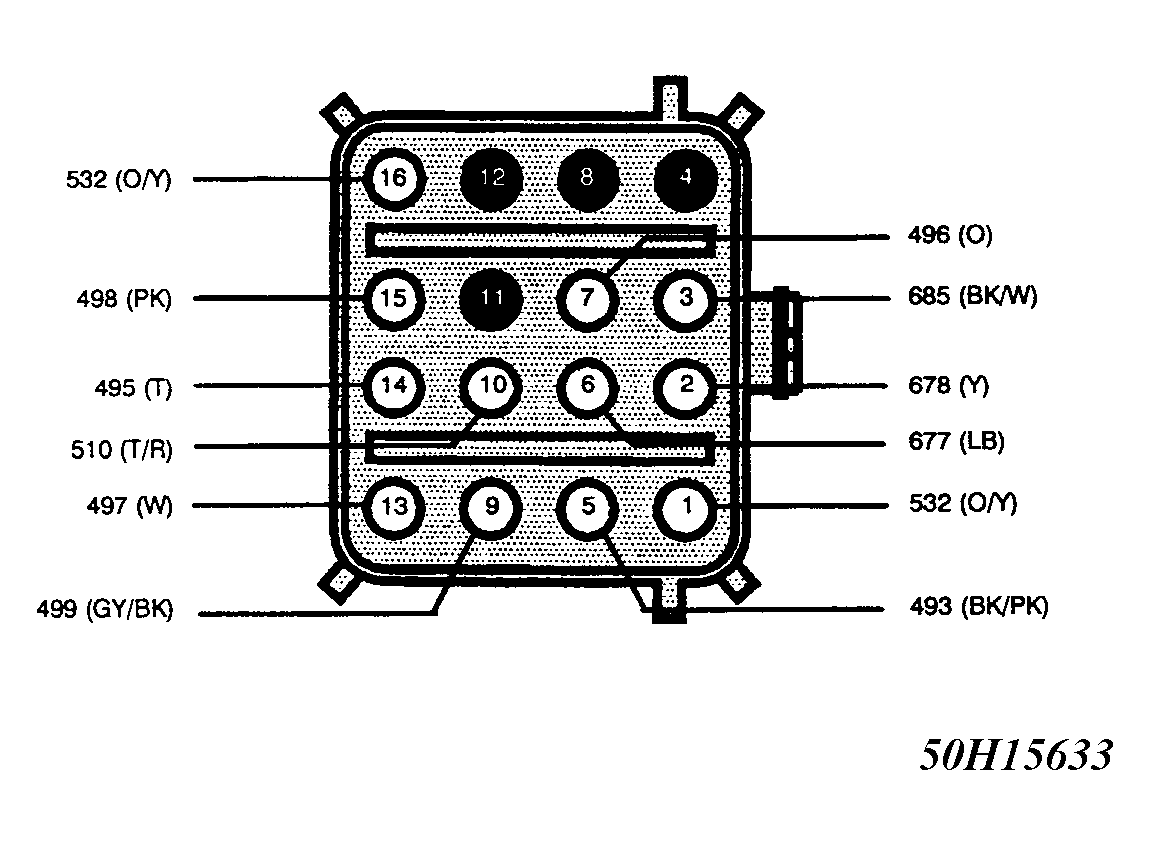

Fig 1: 16-Pin Valve Body Connector Terminals Id (Harness Side)

Courtesy of FORD MOTOR CO.

Fig 2: 16-Pin Valve Body Connector Terminals Id (Control Unit Side)

Courtesy of FORD MOTOR CO.

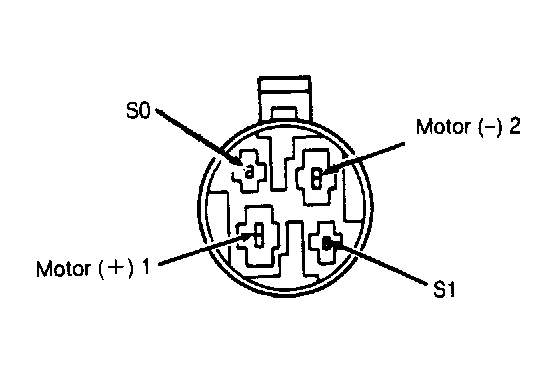

Fig 3: Identifying 4-Pin Pump Motor Connector Terminals

Courtesy of FORD MOTOR CO.

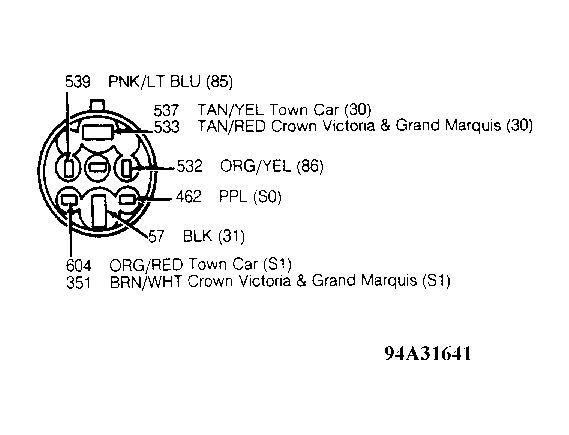

Fig 4: Identifying 7-Pin Pump Motor Relay Connector Terminals

Courtesy of FORD MOTOR CO.

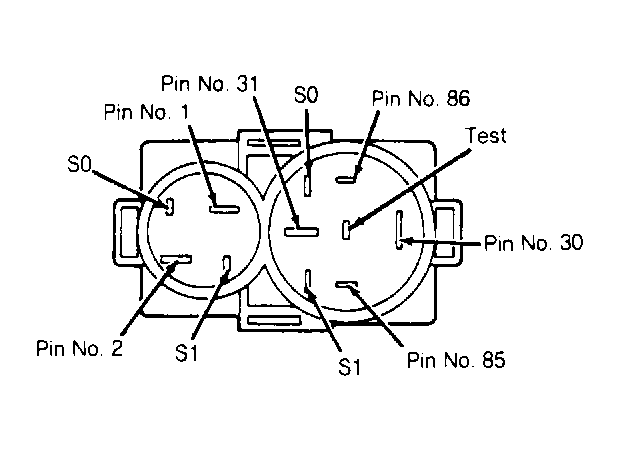

Fig 5: Identifying Pump Motor Relay Terminals

Courtesy of FORD MOTOR CO.

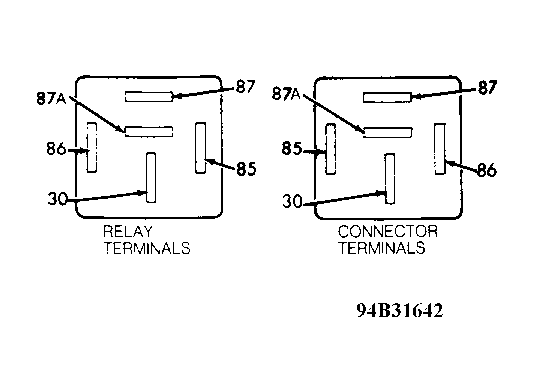

Fig 6: Identifying Main Power Relay Terminals

Courtesy of FORD MOTOR CO.

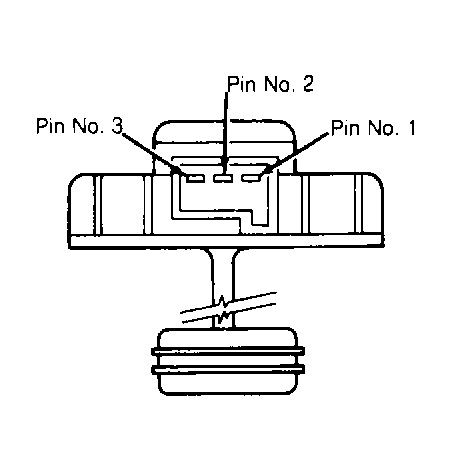

Fig 7: Identifying Master Cylinder Fluid Reservoir Cap Terminals

Courtesy of FORD MOTOR CO.
