4-Door Master Window Switch With Door Lock
Testing information is not available from manufacturer. See illustration for 4-door master window switch with door lock terminal locations. See Fig 1 .

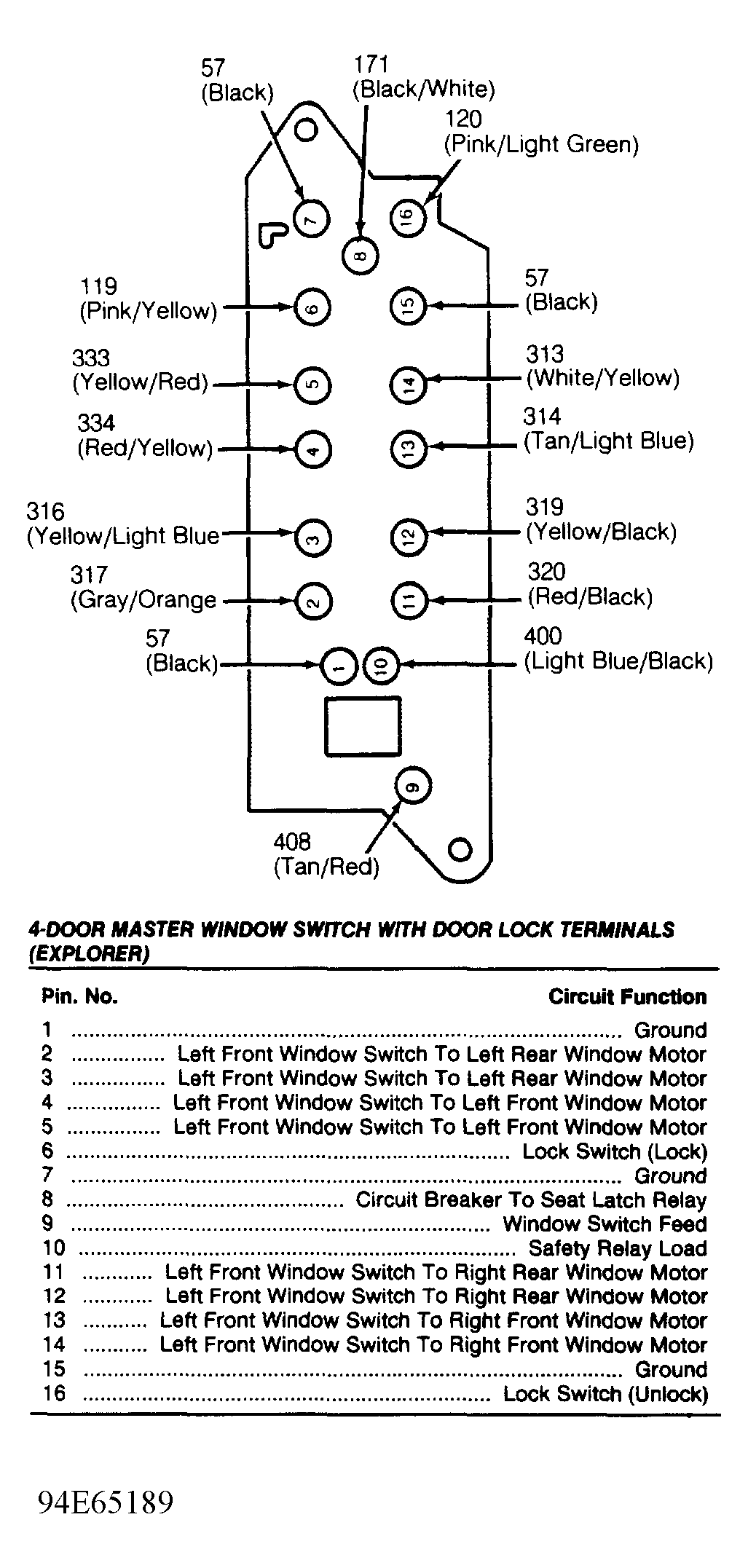

4-DOOR MASTER WINDOW SWITCH WITH DOOR LOCK TERMINALS
| Pin. No. | Circuit Function |
|---|---|
| 1 | Ground |
| 2 | Left Front Window Switch To Left Rear Window Motor |
| 3 | Left Front Window Switch To Left Rear Window Motor |
| 4 | Left Front Window Switch To Left Front Window Motor |
| 5 | Left Front Window Switch To Left Front Window Motor |
| 6 | Lock Switch (Lock) |
| 7 | Ground |
| 8 | Circuit Breaker To Seat Latch Relay |
| 9 | Window Switch Feed |
| 10 | Safety Relay Load |
| 11 | Left Front Window Switch To Right Rear Window Motor |
| 12 | Left Front Window Switch To Right Rear Window Motor |
| 13 | Left Front Window Switch To Right Front Window Motor |
| 14 | Left Front Window Switch To Right Front Window Motor |
| 15 | Ground |
