Right Window Switch With Door Lock

Testing information is not available from manufacturer. See illustration for right window switch with door lock terminal locations. See Fig 1 .

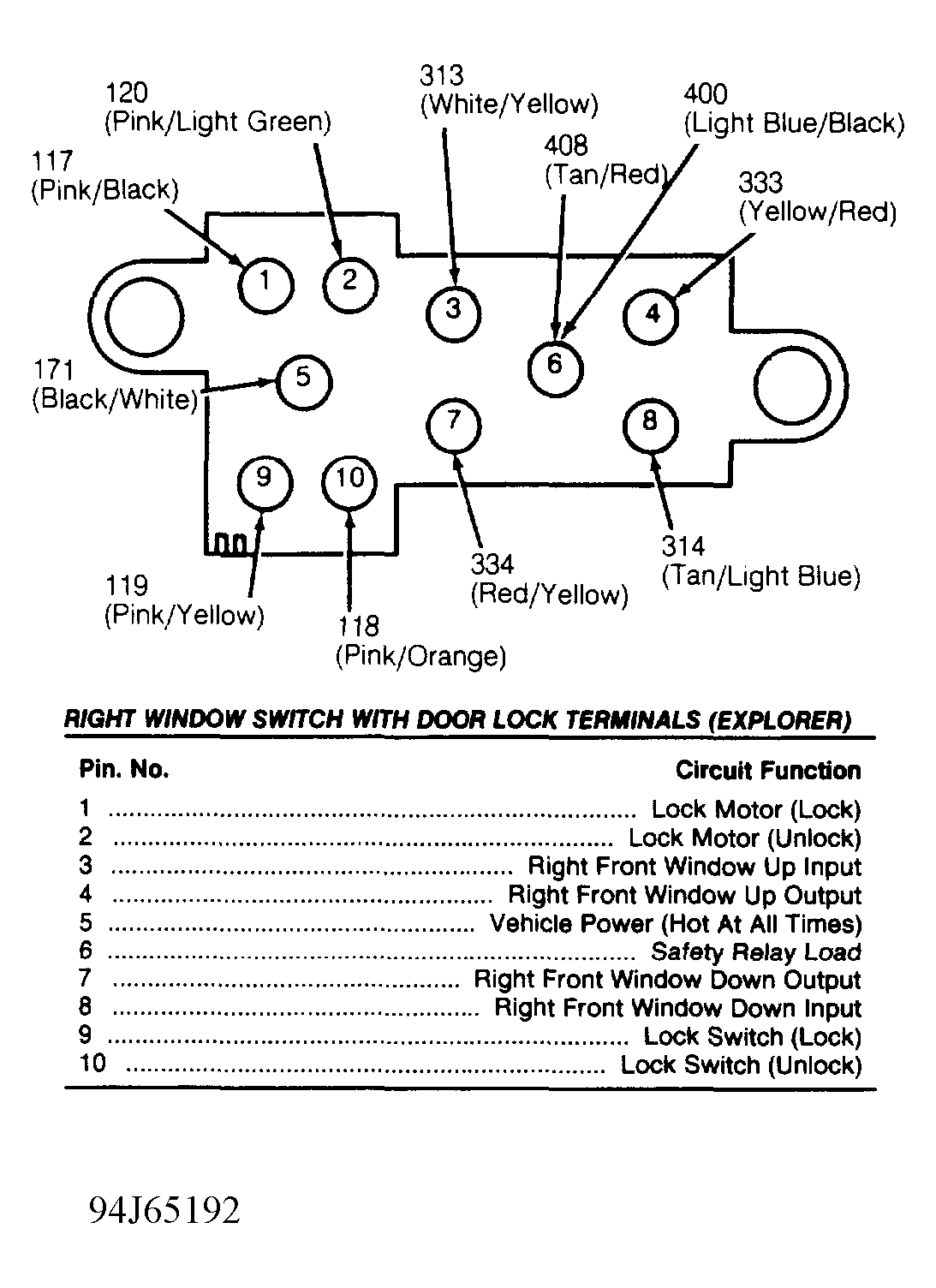

Fig 1: Right Window Switch With Door Lock Terminals ID
G94J65192Courtesy of FORD MOTOR CO.
RIGHT WINDOW SWITCH WITH DOOR LOCK TERMINALS

Pin. No. Circuit Function
1 Lock Motor (Lock)
2 Lock Motor (Unlock)
3 Right Front Window Up Input
4 Right Front Window Up Output
5 Vehicle Power (Hot At All Times)
6 Safety Relay Load
7 Right Front Window Down Output
8 Right Front Window Down Input
9 Lock Switch (Lock)
10 Lock Switch (Unlock)
