Terminal Identification

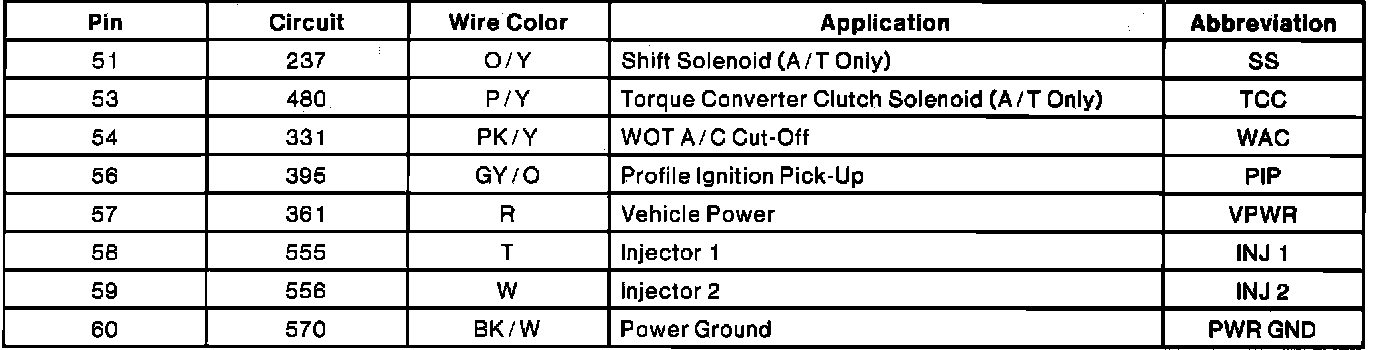

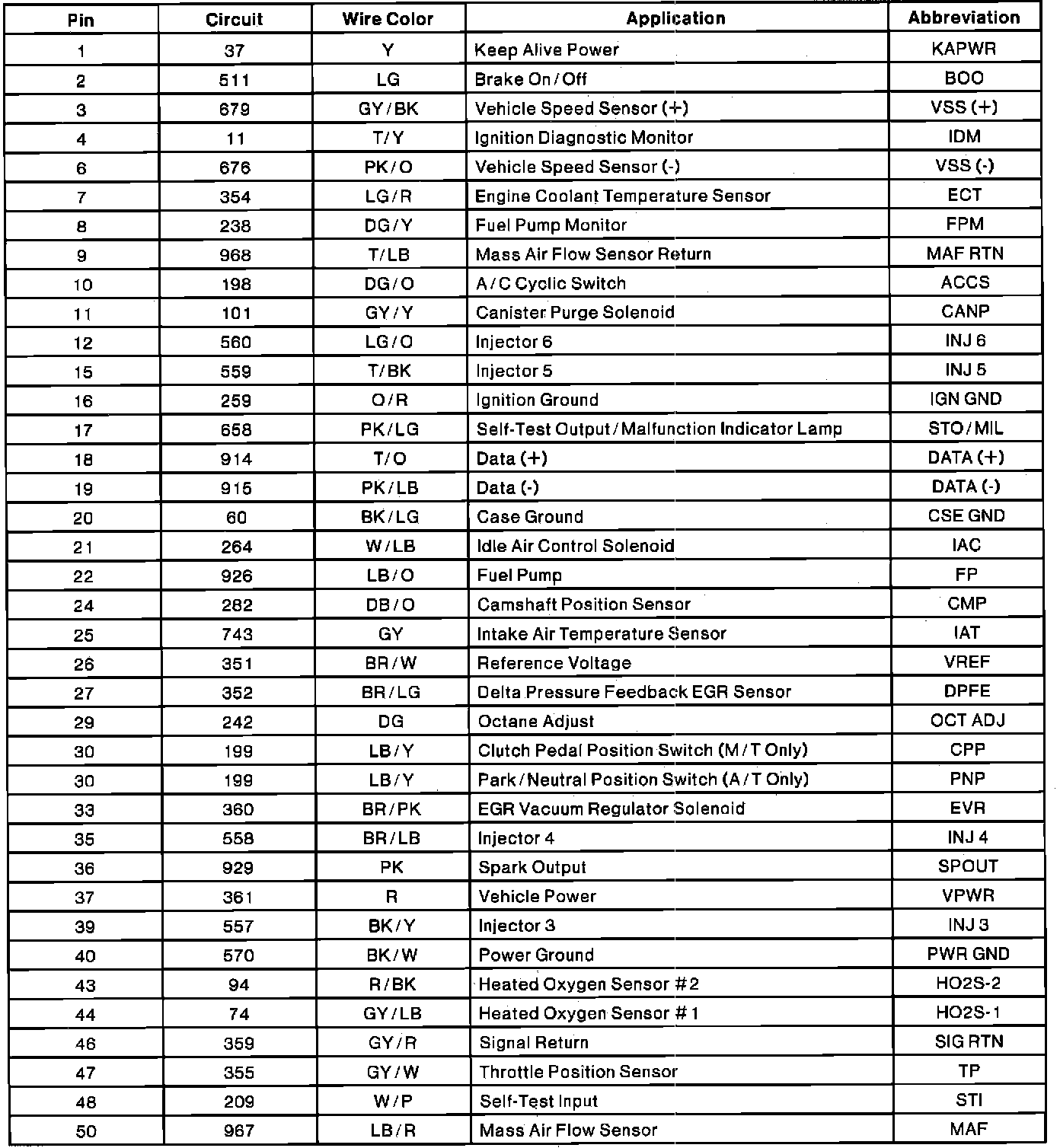

Powertrain Control Module Connector Pin Useage:
Powertrain Control Module Connector Pin Useage:
