Coolant Temperature Sensor/Switch (For Computer)

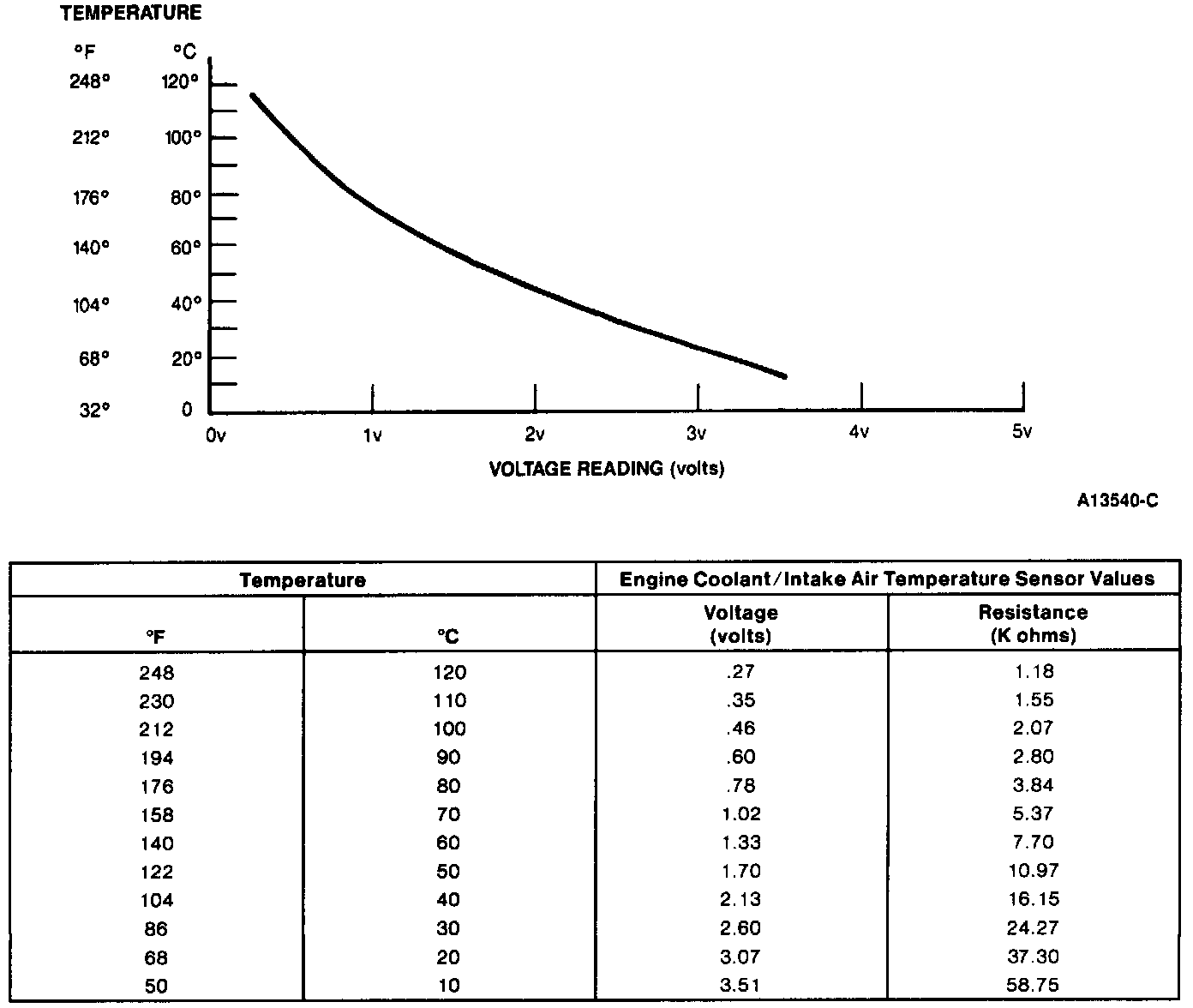

Engine Coolant/Intake Air Temperature Sensor Values:

NOTES: Engine coolant temperature must be greater than 10°C (50°F) to pass the KOEO Self-Test and greater than 82°C (180°F) to pass the KOER Self-Test. To accomplish this, the engine should be at normal operating temperature.

Voltage values were calculated for VREF=5.0 volts. These values may vary 16 percent due to sensor and VREF variations.
