Ford 8.8 Inch

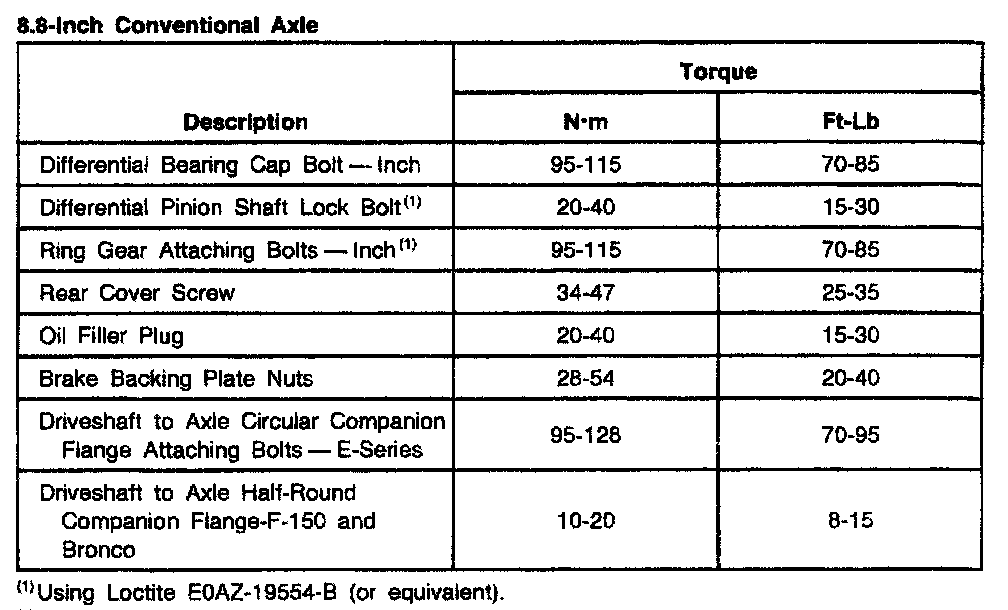

Ford 8.8 Inch, Differential Torque:

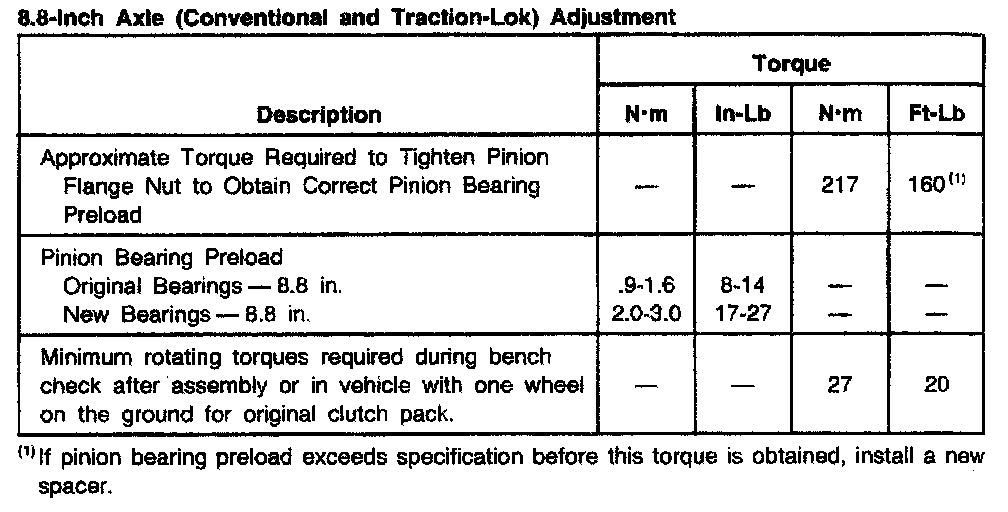

Ford 8.8 Inch/Trac Lok, Pinion Preload Torque:

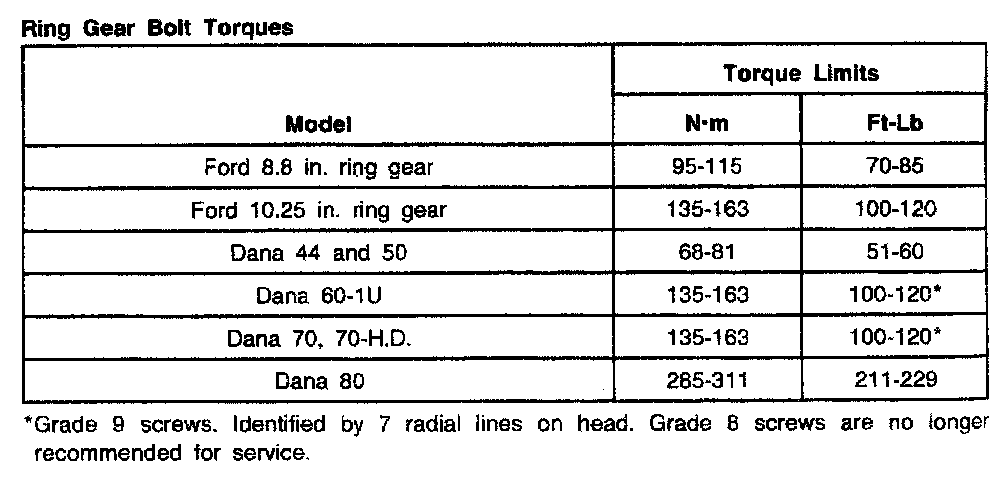

Ford 8.8 Inch, Ring Gear Bolt:
