M/T Technical Data

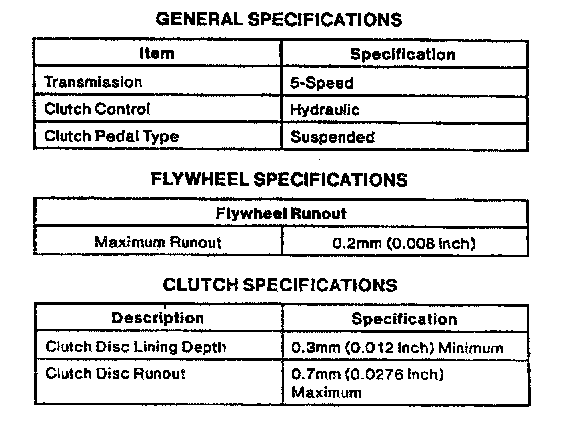

M5OD 5-spd M/T, Flywheel/Clutch (Aerostar, Ranger):

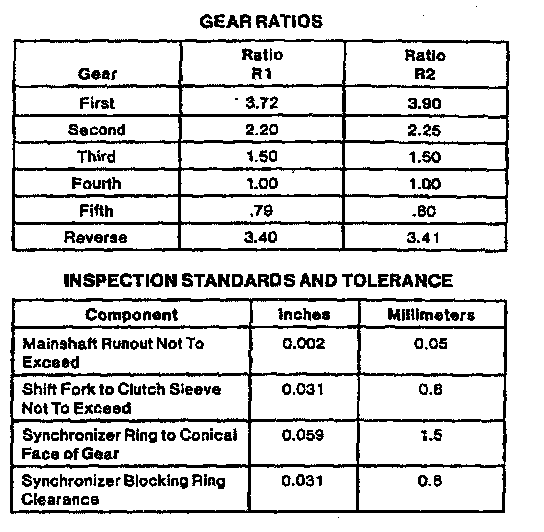

M5OD 5-spd M/T, Gear Ratios/Tolerances (Ranger):

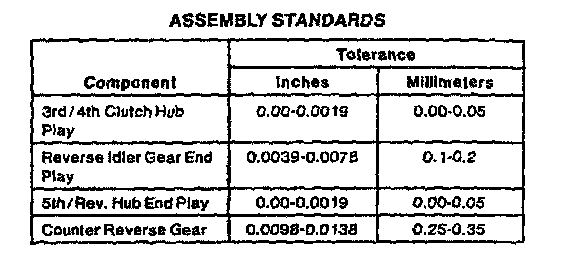

M5OD 5-spd A/T, Assembly Tolerances:

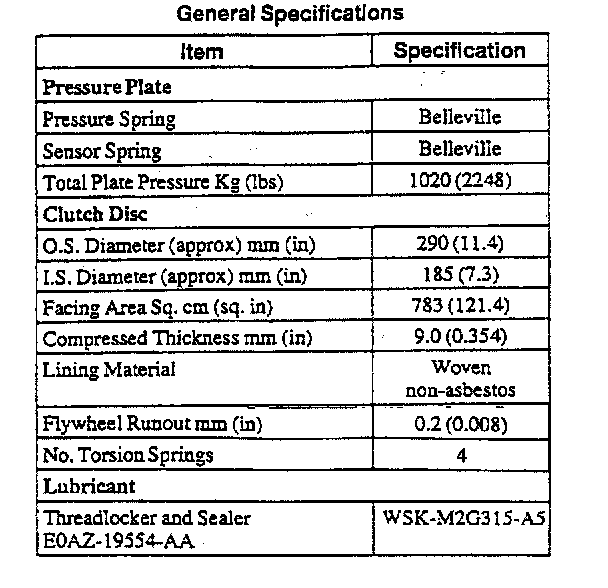

M5OD 5-spd M/T, Clutch Housing (F150/250):

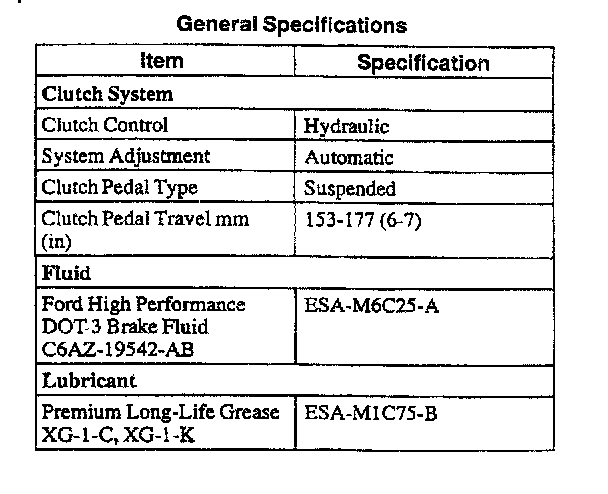

M5OD 5-spd M/T, Clutch Controls:

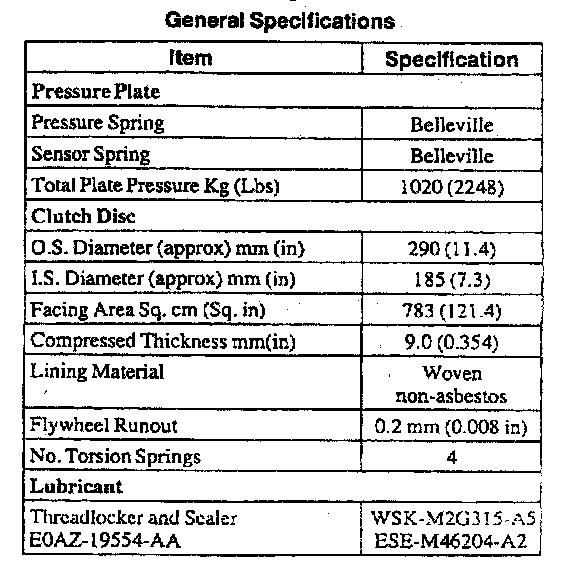

M5OD 5-spd M/T, Clutch Housing (Explorer, Mountaineer):

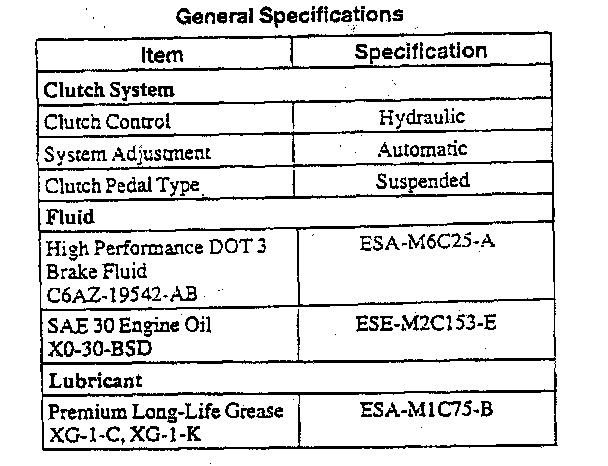

M5OD 5-spd M/T, Clutch Controls:

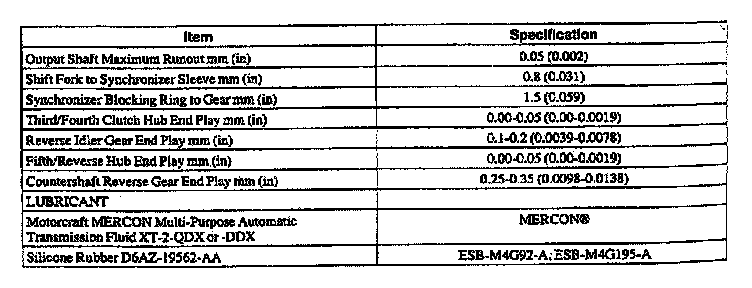

M5OD 5-spd M/T, Transmission Tolerances (Explorer, Mountaineer):
