No-Load Test

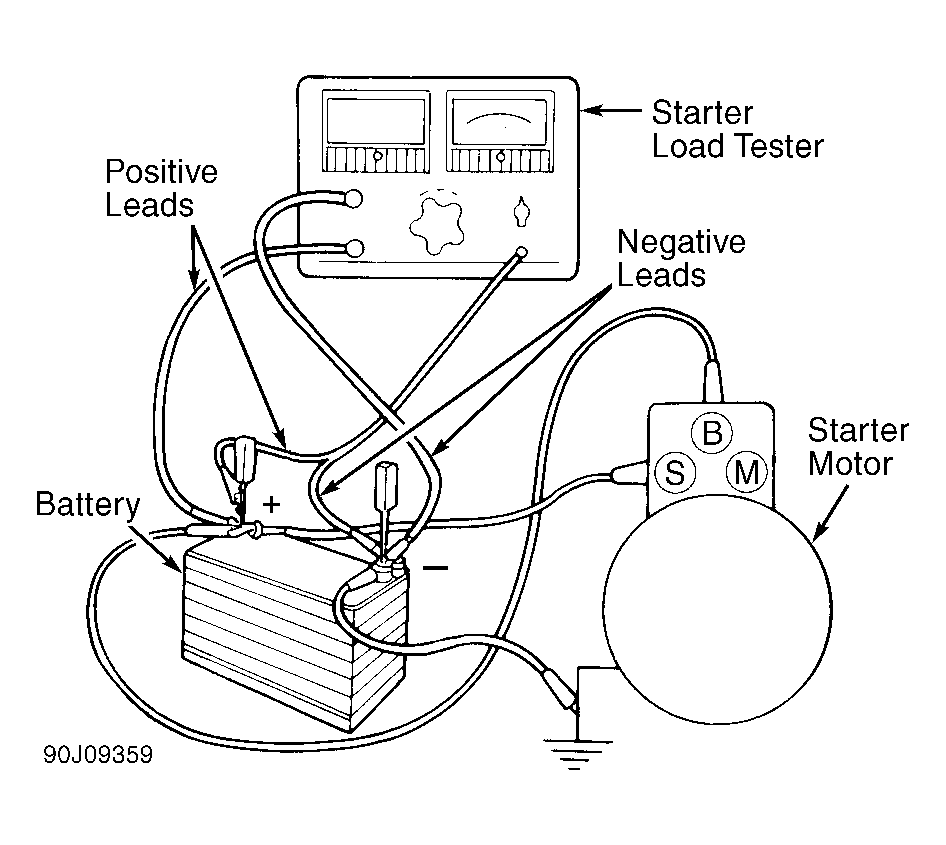

- Mount starter securely in vise. Connect voltmeter to battery terminals. Connect battery, jumper cables and starter load tester to starter. See Fig 1
. Ensure no current is flowing through the ammeter and carbon pile of tester.
- Note voltmeter reading. Disconnect battery from starter. Turn carbon pile to achieve voltage obtained while starter was operating. Note ammeter reading. Replace or repair starter if current exceeds specification. See STARTER SPECIFICATIONS TABLE
.
Courtesy of FORD MOTOR CO.
