2-Door Master Window Switch With Door Lock
Testing information is not available from manufacturer. See illustration for 2-door master window switch with door lock terminal locations. See Fig 1 .

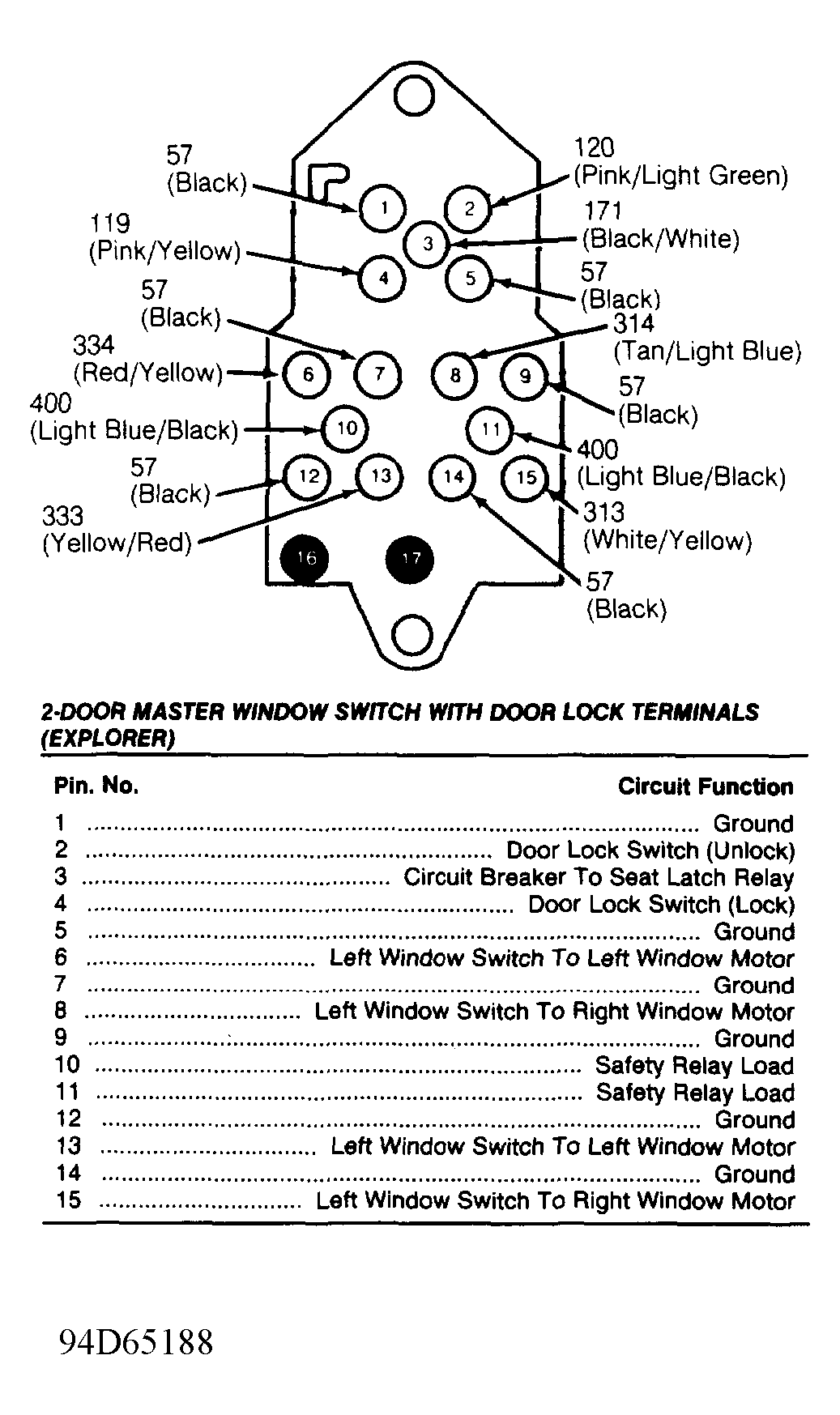

2-DOOR MASTER WINDOW SWITCH WITH DOOR LOCK TERMINALS
| Pin. No. | Circuit Function |
|---|---|
| 1 | Ground |
| 2 | Door Lock Switch (Unlock) |
| 3 | Circuit Breaker To Seat Latch Relay |
| 4 | Door Lock Switch (Lock) |
| 5 | Ground |
| 6 | Left Window Switch To Left Window Motor |
| 7 | Ground |
| 8 | Left Window Switch To Right Window Motor |
| 9 | Ground |
| 10 | Safety Relay Load |
| 11 | Safety Relay Load |
| 12 | Ground |
| 13 | Left Window Switch To Left Window Motor |
| 14 | Ground |
| 15 | Left Window Switch To Right Window Motor |
