Drive Belt

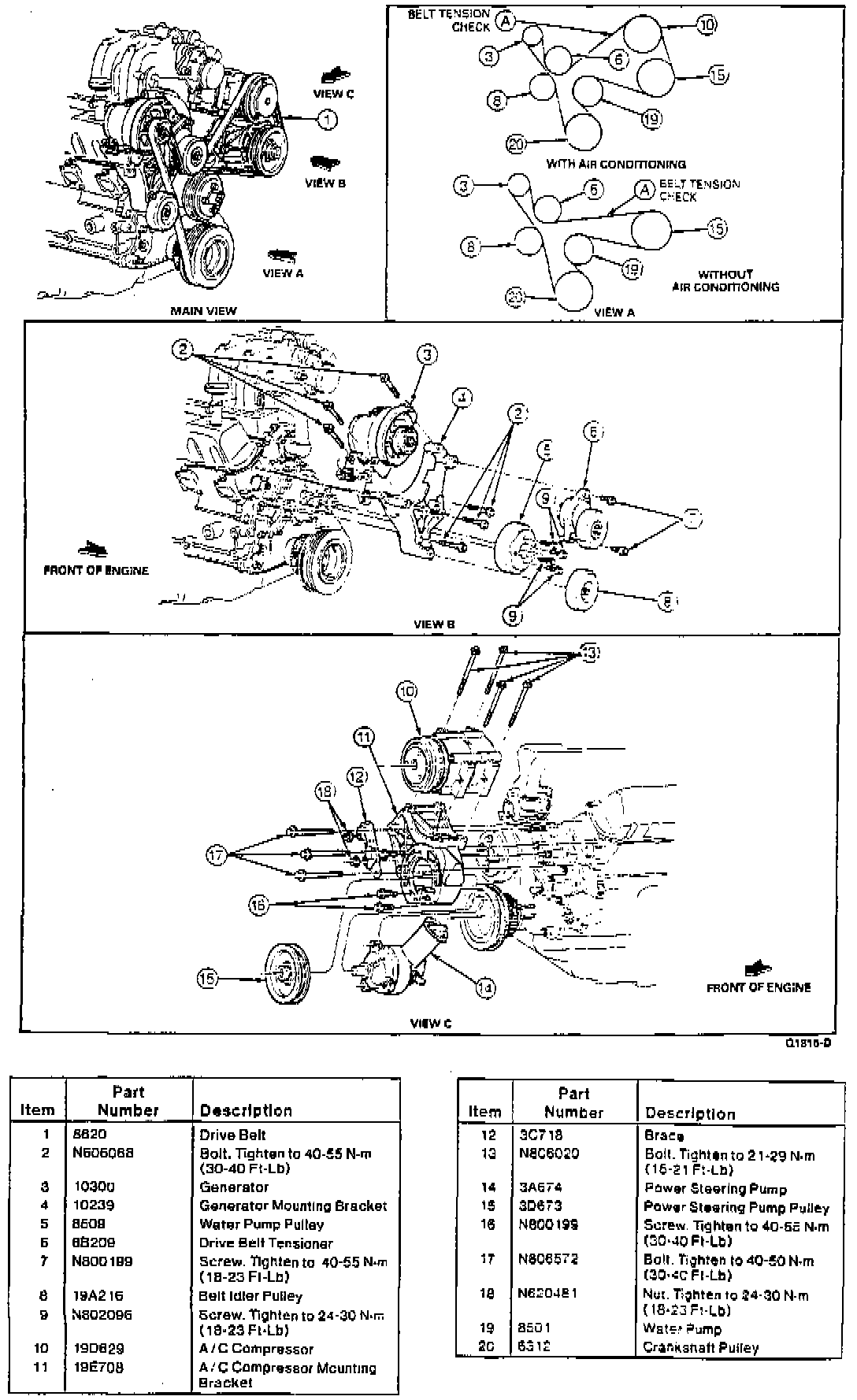

Drive Belt Routing:






New Or Used Belt (Measured At "A") 480-586 Newtons (108-132 lbs)
Allowable Minimum 480 Newtons (108 lbs)
