2 Door

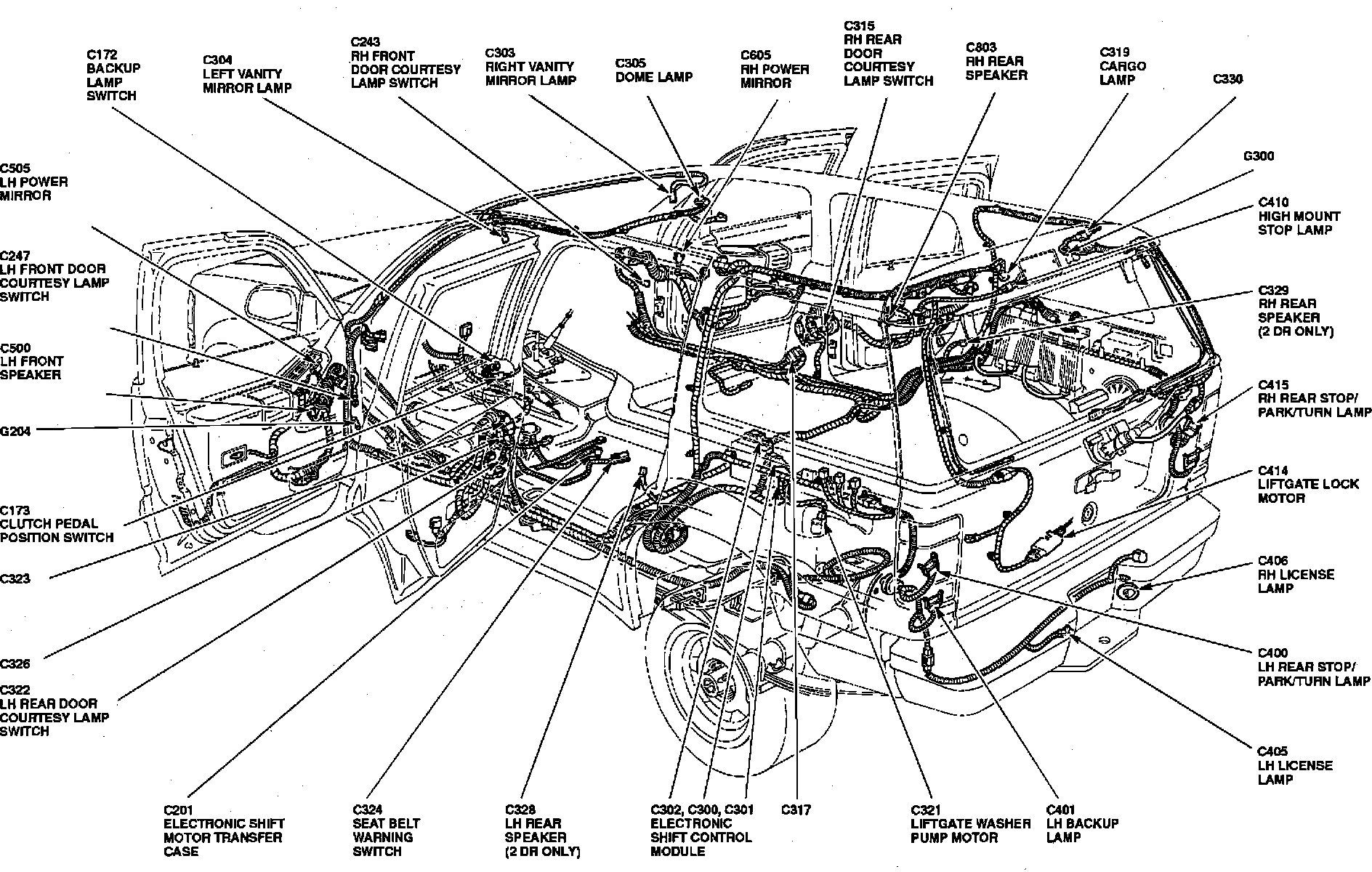

Component Locations:

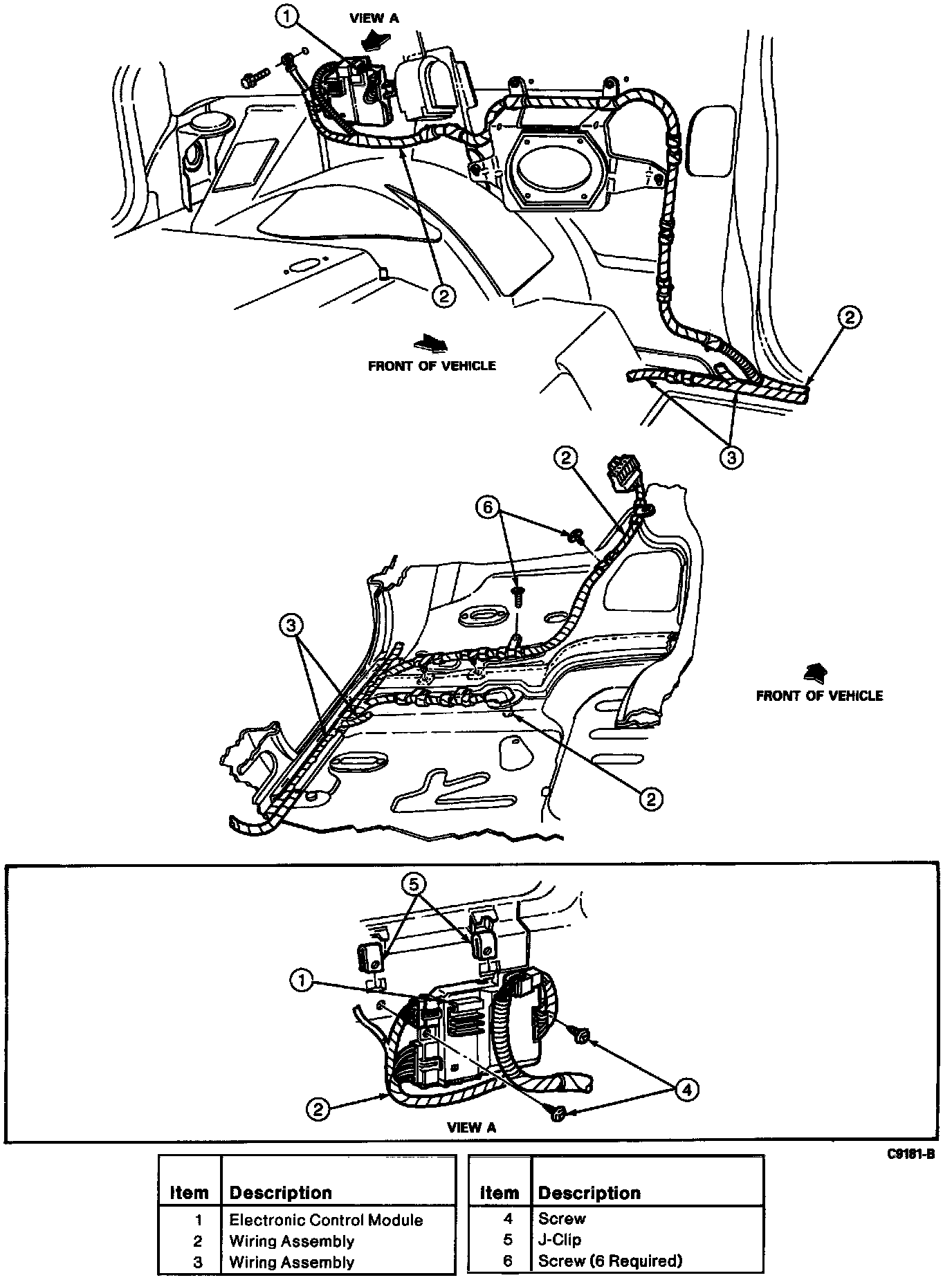

Control Module and Wiring Harness, Explorer 2-Door:





The Electronic Shift Control Module is located at the rear of vehicle, over the left wheel well.
