Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Control Module | ||
| 3.8L | In right front of engine bay, behind radiator. See Figure . | |
| 5.0L | In right front of engine bay, behind radiator. See Figure . | |
| Air Bag Diagnostic Module | Behind lower center of dash. See Figure . | |

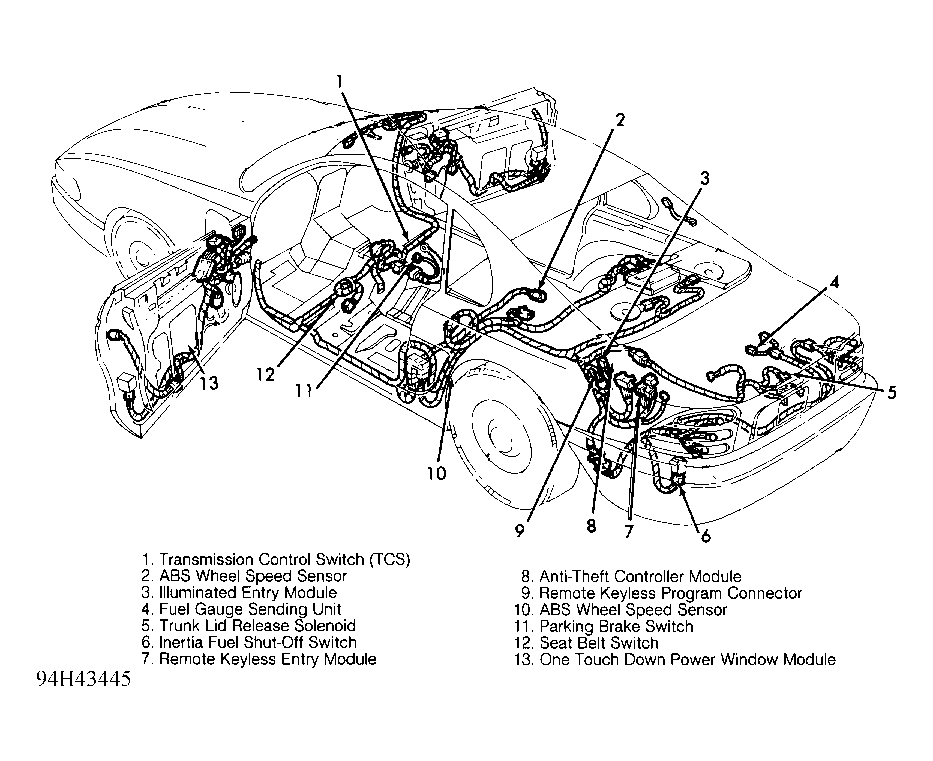

| Anti-Theft Controller Module | In left rear of trunk, behind trim panel. See Figure . | |
| Constant Control Relay Module (CCRM) | ||
| 3.8L | Mounted on bracket, behind engine coolant reservoir. See Figure . | |
| 5.0L | Mounted on bracket, behind engine coolant reservoir. See Figure . | |
| Daytime Running Lights (DRL) Module | ||
| 3.8L | In left front corner of engine bay, below horns. See Figure . | |
| 5.0L | In left front corner of engine bay, below horns. See Figure . | |
| Ignition Control Module (ICM) | ||
| 3.8L | On right inner fender panel, forward of strut tower. See Figure . | |
| 5.0L | On right inner fender panel, forward of strut tower. See Figure . | |
| Illuminated Entry Module | In left side of trunk, behind side trim panel. See Figure . | |
| One Touch Down Power Window Module | In lower rear of left door. See Figure . | |
| Powertrain Control Module (PCM) | Behind right kick panel. | |
| Remote Keyless Entry Module | In left rear of trunk, behind side trim panel. See Figure . | |
| Transmission Control Switch Module (TCSM) 5.0L | Behind right side of dash. See Figure . | |
| Warning Chime Module | Behind center of dash, to right of radio. See Figure . | |
| Windshield Wiper Control Module | Behind left side of dash, near top of kick panel. See Figure . | |
