Pinpoint Testing
NOTE:
See appropriate ANTI-THEFT DIAGNOSIS CHART under TESTING to determine testing according to vehicle system problem.
Before performing any tests on anti-theft system, check the following items to eliminate common problems:
- Hood/trunk/liftgate properly aligned.
- Door locks not binding.
- Fuses not blown.
- Loose or corroded connections.
- Damaged wiring harness.
- Damaged Central Processing Unit (CPU).
- Horn, headlights, hazard flashers, interior lights, trunk lights, power door locks and remote entry systems operational.
ANTI-THEFT/CPU MODULE CONNECTOR CIRCUITS
| Pin No. | Circuit (Color) | Function |
|---|---|---|

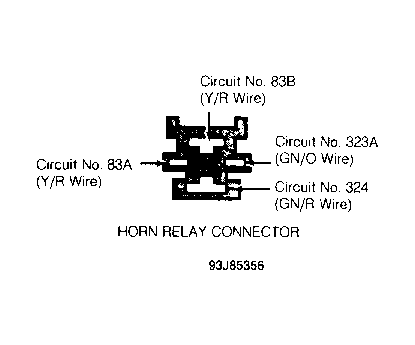

| 1 | 323C (GN/O) | Horn Relay |

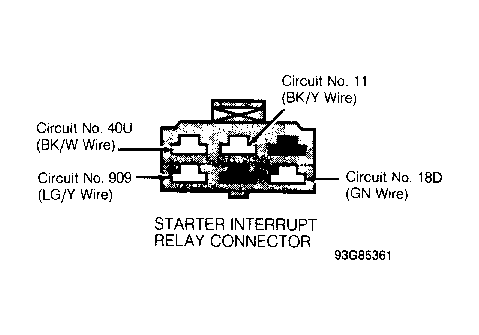

| 2 | 909 (LG/Y) | Starter Interrupt Relay |

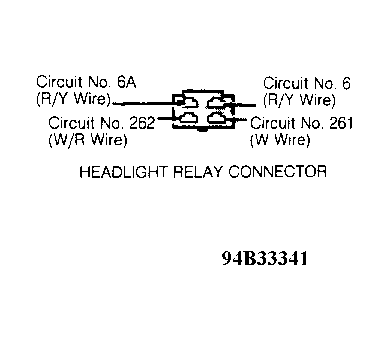

| 3 | 261D (W) | Headlight Relay |
| 4 | 270E (R/W) | Combination Switch |
| 5 | 266 (R/BL) | Headlight Cover Motor |

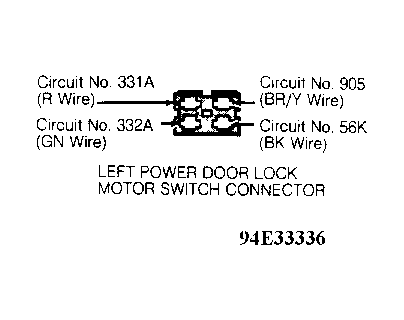

| 6 | 905 (BR/Y) | LH Pwr. Door Lock Switch |

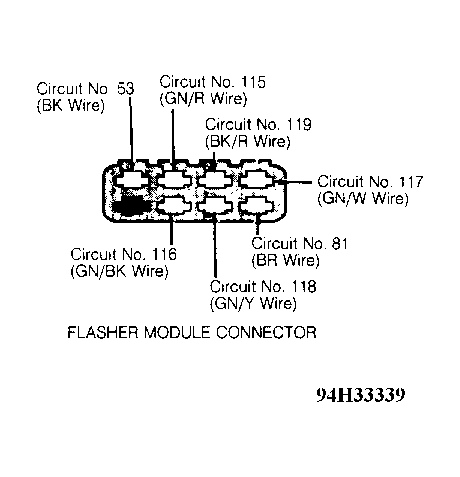

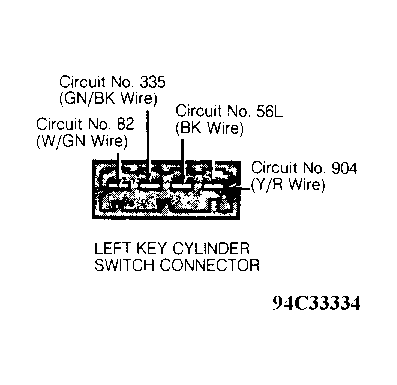

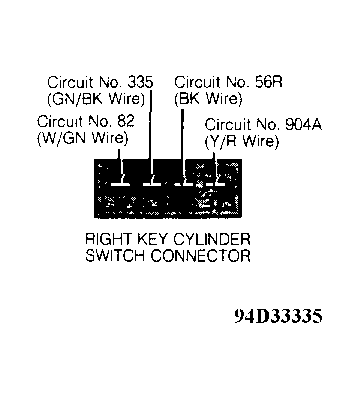

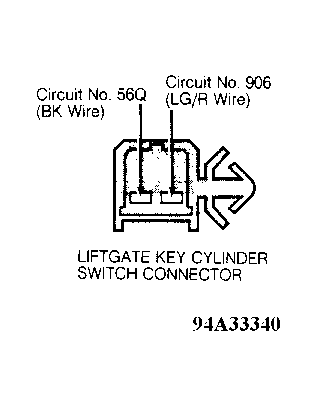

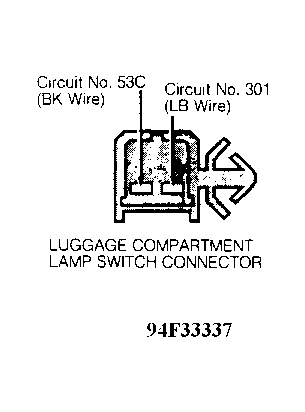

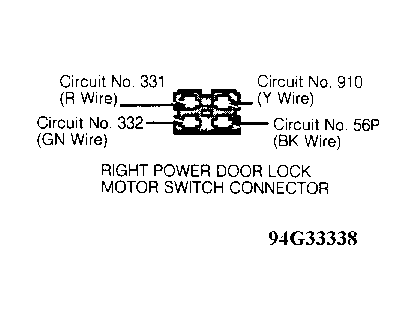

| 7 | 115 (GN/R) | Flasher Module |
| 8 | 267 (W/BL) | Headlight Cover Motor |
| 9 | 7C (R/GN) | Power Supply |
| 10 | Not Used | Not Used |
| 11 | 262A (W/R) | Headlight Relay |
| 12 | 901 (LG) | Instrument Cluster |
| 13 | 904 (Y/R) | Power Door Lock Switches |
| 14 | 906 (LG/R) | Liftgate Switch |
| 15 | 301A (LB) | Liftgate Lamp Switch |
| 16 | 910 (Y) | RH Pwr. Door Lock Switch |

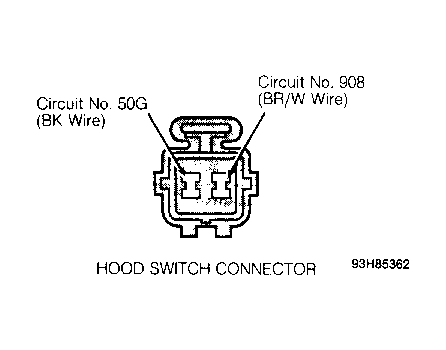

| 17 | 908 (BR/W) | Hood Switch |
| 18-20 | Not Used | Not Used |
INSTRUMENT CLUSTER MODULE CONNECTOR CIRCUITS
| Pin No. | Circuit (Color) | Function |
|---|---|---|
| 1B | 53A (BK) | Ground |
| 2B | 305A (GN/Y) . Inst. Panel Lights Return | 3B |
| 80A (O) | Inst. Panel Light Power | 4B |
| 301B (LB) | Trunk Compart. Light Sw. | 5B |
| 731 (GN) | Tach Signal From Ignition | 6B |
| 110 (P/Y) | Oil Pressure Sender | 7B |
| 746 (BL) | Malfunction Light Signal | 8B |
| 307 (BR/BK) | Seat Belt Light Sig. From CPU | 9B |
| 824 (BR/Y) | O/D Off Light Signal | 10B |
| 901 (LG) | Theft Warning Light Signal | 11B |
| 84R (BL/R) | Power | 12B |
| 952A (R/GN) | Air Bag Diag. Module | 13B |
| 244 (W/R) | Inertia Fuel Cutoff Switch | 14B |
| 117C (GN/W) | RH Signal From Flasher | 15B |
| 300A (R/W) | Door Switches & CPU | 16B |
| 20 (W/BK) | Generator/Voltage | Reg. Signal |
WARNING CHIME/CPU MODULE CONNECTOR CIRCUITS
| Pin No. | Circuit (Color) | Function |
|---|---|---|
| 1 | N/A | Power N/A |
| 2 | 300 (R/W) | Seat Belt Indicator |
| 3 | Seat Belt Indicator | Pwr. & Key Reminder Switch |
| 4 | 53F (BK) | Ground |
| 5 | 300 (R/W) | Door Jamb Switches & Ajar Light |
| 6 | 333D (GN) | Dome, Map & Foot Lights |
| 7 | 304 (PK) | Illuminated Entry Lights |
| 8 | Not Used | Not Used |
| 9 | 303 (BL/Y) | Key Reminder Switch |
| 10 | 302 (R/Y) | Interior Light Switches |
| 11 | 308 (BR/W) | Seat Belt Buckle Switch |
| 12 | Not Used | Not Used |
| 13 | Not Used | Not Used |
| 14 | Not Used | Not Used |
| 15 | 108 (R/Y) | Backup Lights & Switch |
| 16 | 80 (O) | Parking Light Relay |
INDICATOR FLASHER CONNECTOR CIRCUITS
| Pin No. | Circuit (Color) | Function |
|---|---|---|
| 1 | 53K (BK) | Ground |
| 2 | 115 (GN/R) | Hazard Switch Input |
| 3 | 119 (BK/R) | RH Turn Signal Input |
| 4 | 117 (GN/W) | RH Turn Signal Output |
| 5 | Not Used | Not Used |
| 6 | 116 (GN/BK) | LH Turn Signal Output |
| 7 | 118 (GN/Y) | LH Turn Signal Input |
| 8 | 81 (BR) | Power |
