Ignition Timing: 1.8L
- Ensure engine is at operating temperature, all accessories are off, and transmission is in Park or Neutral. Set parking brake. Ensure idle speed is correct.

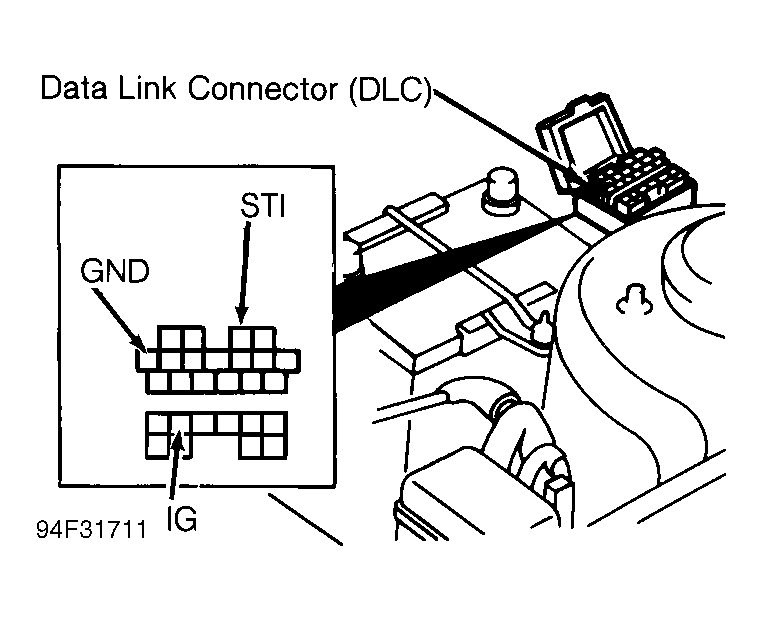

- Connect timing light to No. 1 spark plug wire. Use jumper wire to connect Data Link Connector (DLC) STI terminal to GND terminal. See Fig 1
. Start engine. Check base ignition timing. See BASE IGNITION TIMING table.
- If timing is not to specification, loosen distributor hold-down bolt. Adjust timing as necessary. Turn engine off. Remove jumper wire from DLC terminals. Start engine. Ensure advance mechanism is functioning correctly.
Courtesy of FORD MOTOR CO.
