Spark Check
- Check the EI (high data rate) system (formerly Electronic Distributorless Ignition System - EDIS) for fault codes and repair if necessary. See QUICK TEST in appropriate TESTS W/CODES

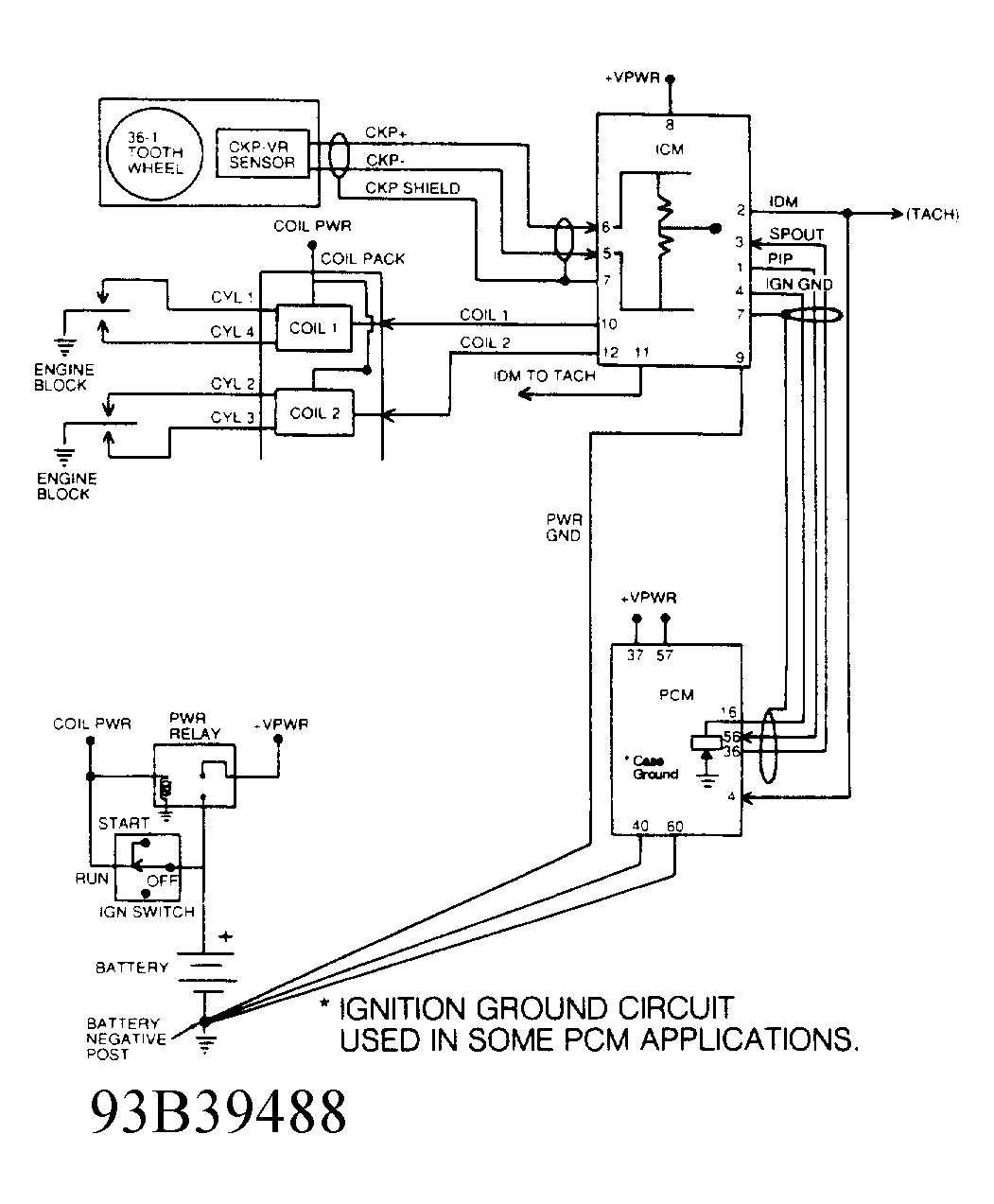

article as listed below. If no fault codes are present, check ignition system wiring harness connectors for corrosion and tight fit. See Fig 1
. Clean or repair connectors as necessary.
- If wiring and connectors are okay, use Neon Bulb Spark Tester (D89P-6666-A) to check for spark at each spark plug wire while cranking engine. If spark is strong and consistent at each spark plug (one spark per crankshaft revolution), ignition system is okay. If spark is not present, see IGNITION SYSTEMS in appropriate SYSTEM/COMPONENT TESTS
article as listed below.
- G - TESTS W/CODES - EEC 1.8L (for Escort & Tracer)
- G - TESTS W/CODES - EEC-IV (1.9L) (for Escort & Tracer)
- G - TESTS W/CODES - EEC-IV (2.0L) (for Probe)
- G - TESTS W/CODES - EEC-IV (2.3L) (for Tempo & Topaz)
- Additional information unavailable for Escort & Tracer 1.8L.
- I - SYSTEM/COMPONENT TESTS - EEC-IV (1.9L) (for Escort & Tracer 1.9L)
- I - SYSTEM/COMPONENT TESTS - EEC-IV (2.0L) (for Probe)
- I - SYSTEM/COMPONENT TESTS - EEC-IV (2.3L) (for Tempo & Topaz)
Courtesy of FORD MOTOR CO.
