KOEO Wiggle Test Procedure

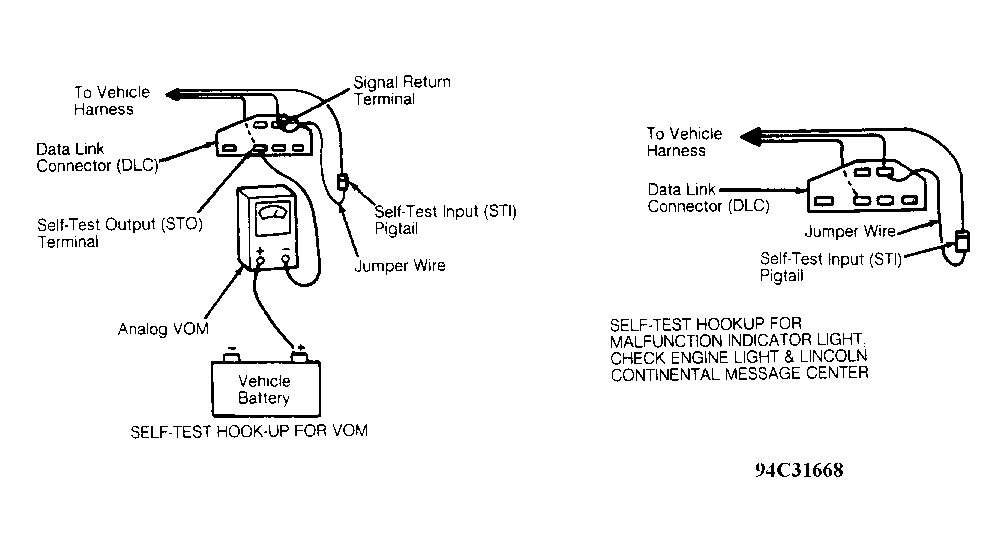

Connect test equipment. See Figure. Turn ignition on. Activate self-test using jumper lead or diagnostic tester. Wait 10 seconds, and then deactivate and reactivate self-test. Wiggle test mode is now activated. Tap, move and wiggle suspect sensor and/or harness area. If a fault is detected, a diagnostic trouble code may be stored in memory and indicated at diagnostic tester or scan tester. Retrieve code, and perform appropriate test. See DIAGNOSTIC TROUBLE CODE REFERENCE CHARTS.
