Cylinder Identification Sensor: Locations

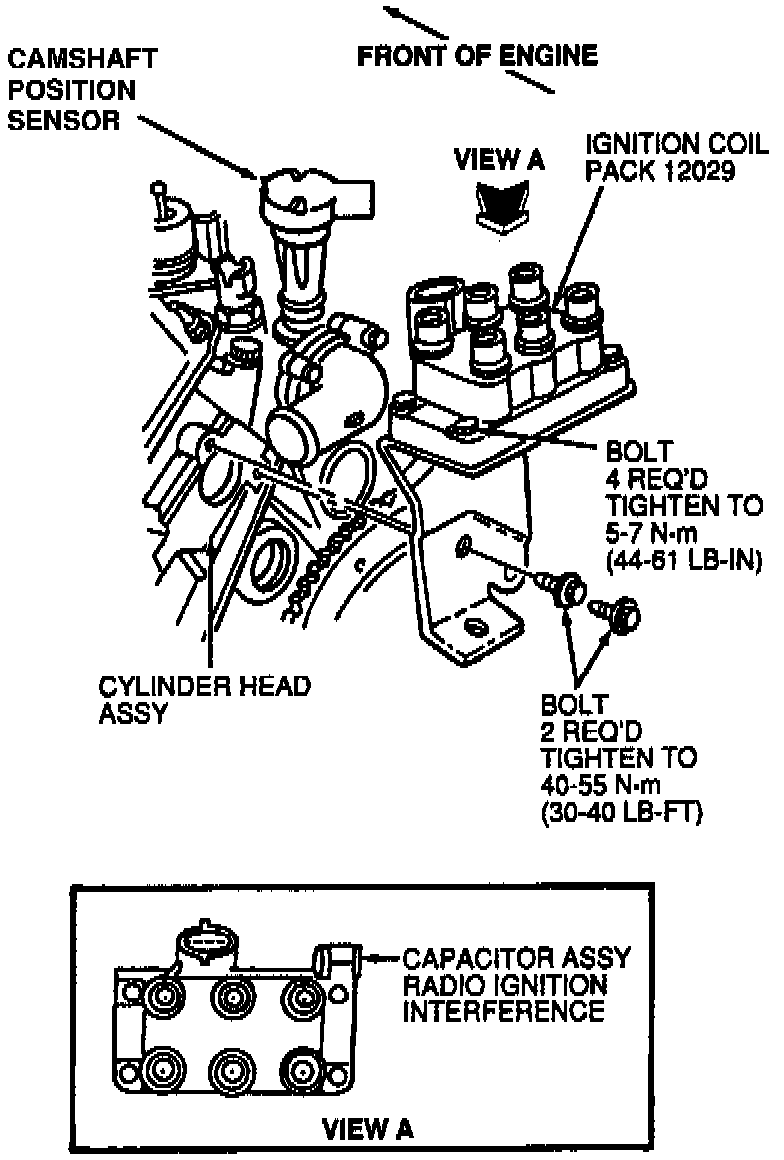

Ignition Coil And Camshaft Position Sensor:




Component Locations:






The Cylinder Identification (CID) Sensor/Camshaft Position Sensor, (C178), is located on the right hand rear of the engine.
