Taurus V6-182 3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Switch
>>
Right Front
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Right Front

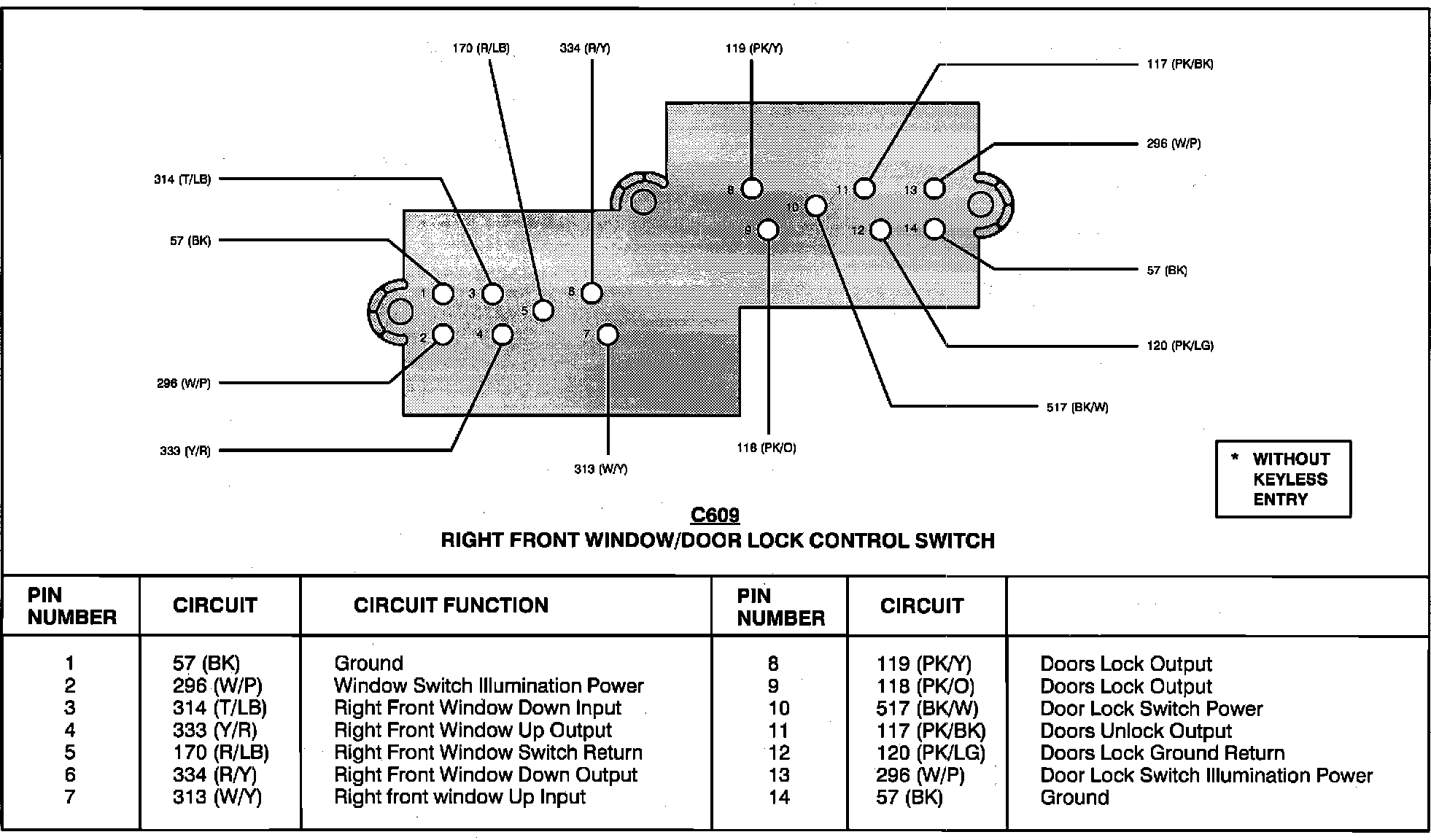

Right Front Window/Door Lock Control Switch:
