AX4S

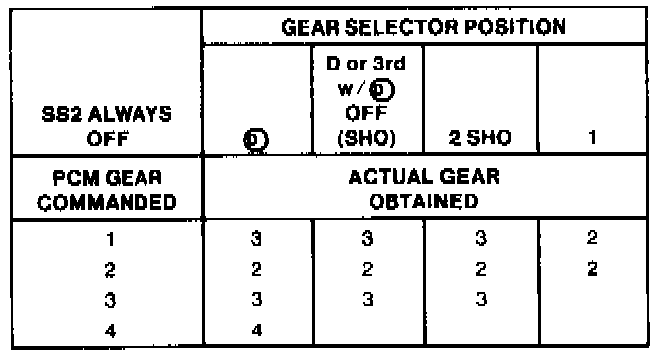

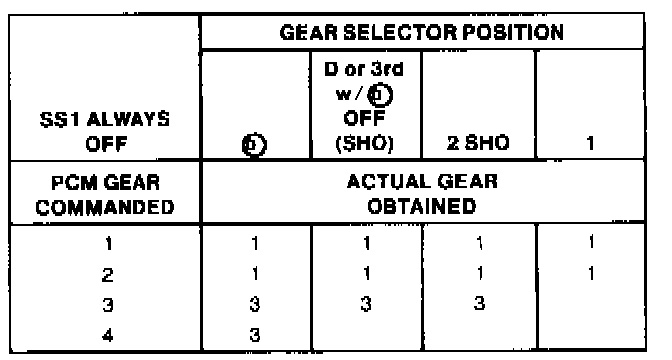

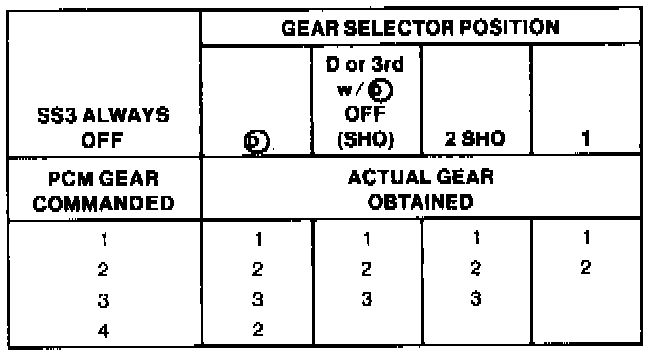

SHIFT SOLENOID FAILURE "ALWAYS OFF"











Failed OFF due to powertrain control module and/or vehicle wiring concerns, and/or solenoid electrically stuck off and/or hydraulically stuck OFF.

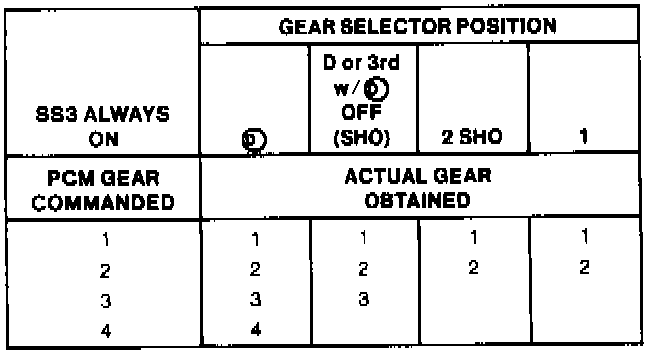

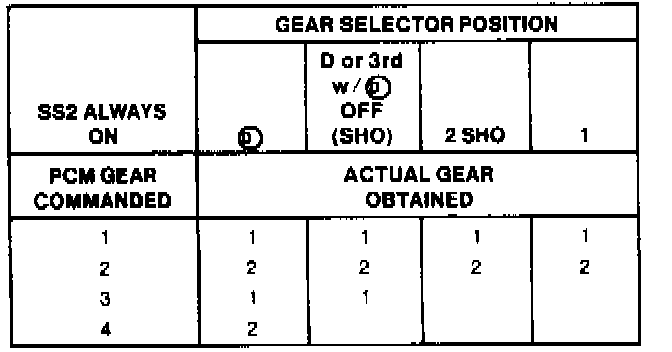

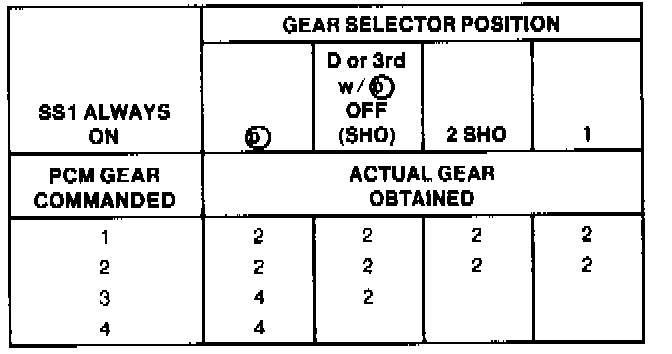

SHIFT SOLENOID FAILURE "ALWAYS ON"











Failed ON due to Powertrain Control Module (PCM) and/or vehicle wiring concerns; solenoid electrically or mechanically stuck ON.
