Engine Controls

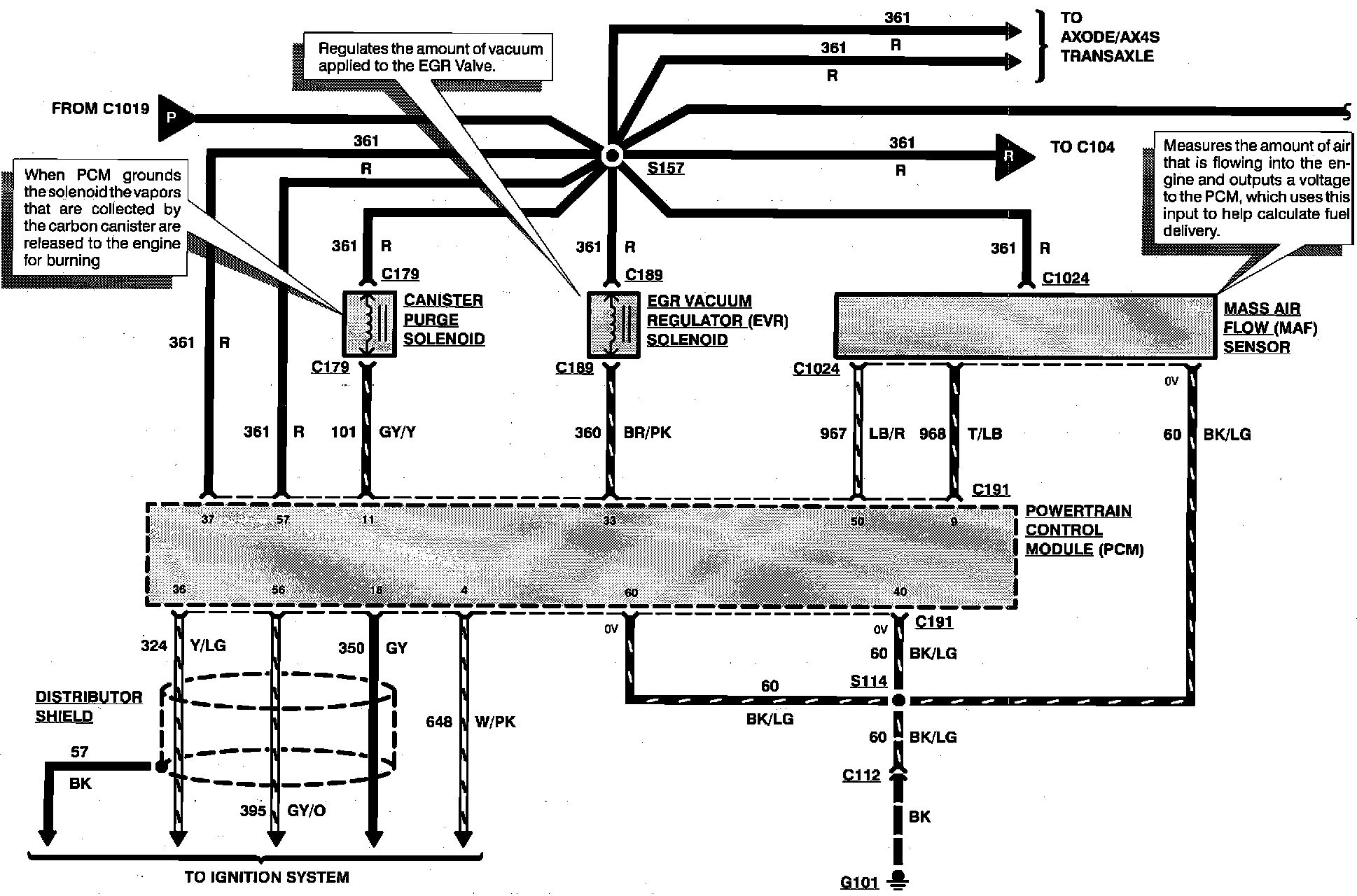

Engine Controls:
CANISTER PURGE SOLENOID
EGR VACUUM REGULATOR SOLENOID
MASS AIR FLOW SENSOR
POWERTRAIN CONTROL MODULE

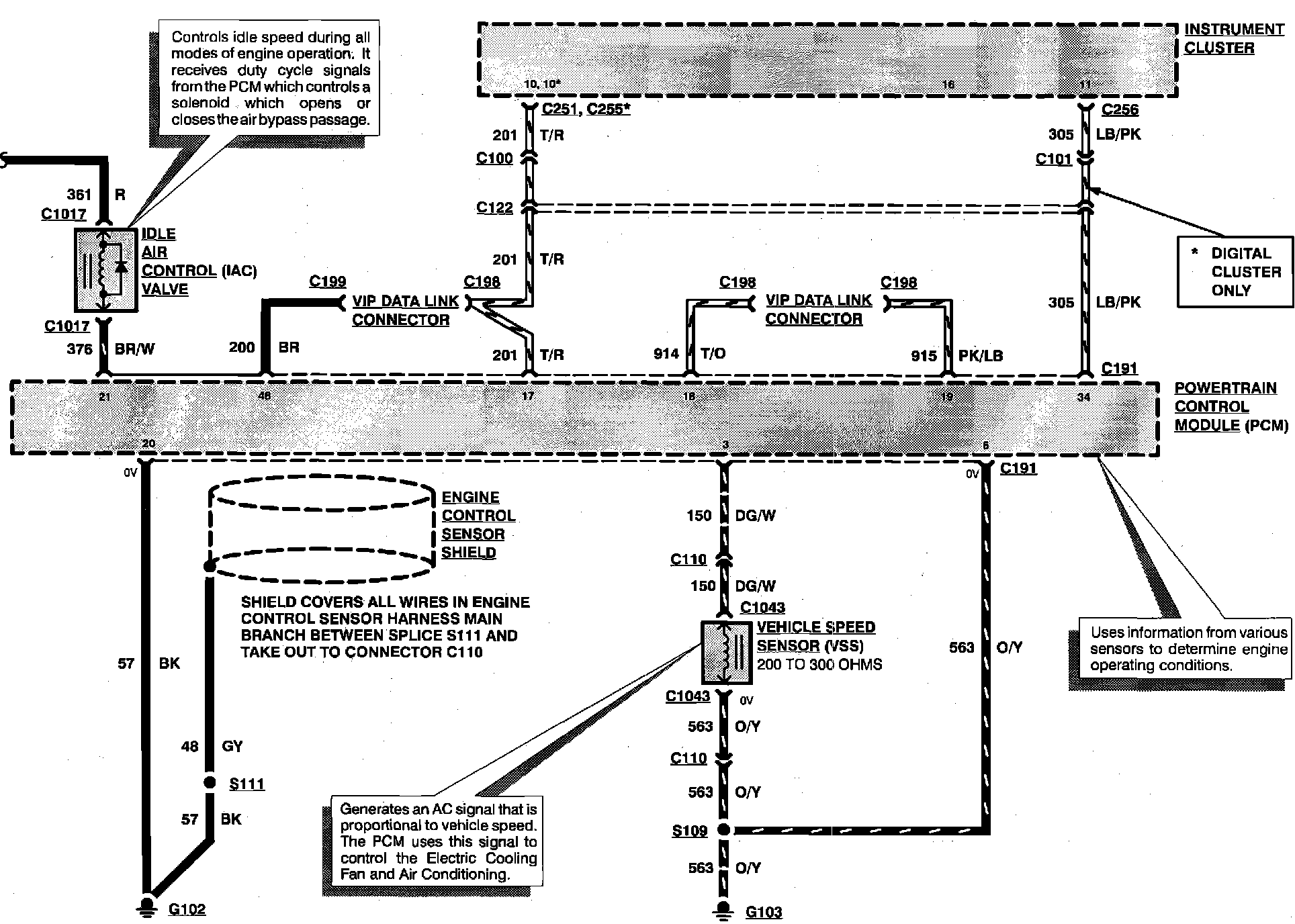

Engine Controls:
IDLE AIR CONTROL VALVE
INSTRUMENT CLUSTER
POWERTRAIN CONTROL MODULE
VEHICLE SPEED SENSOR
VIP DATA LINK CONNECTOR

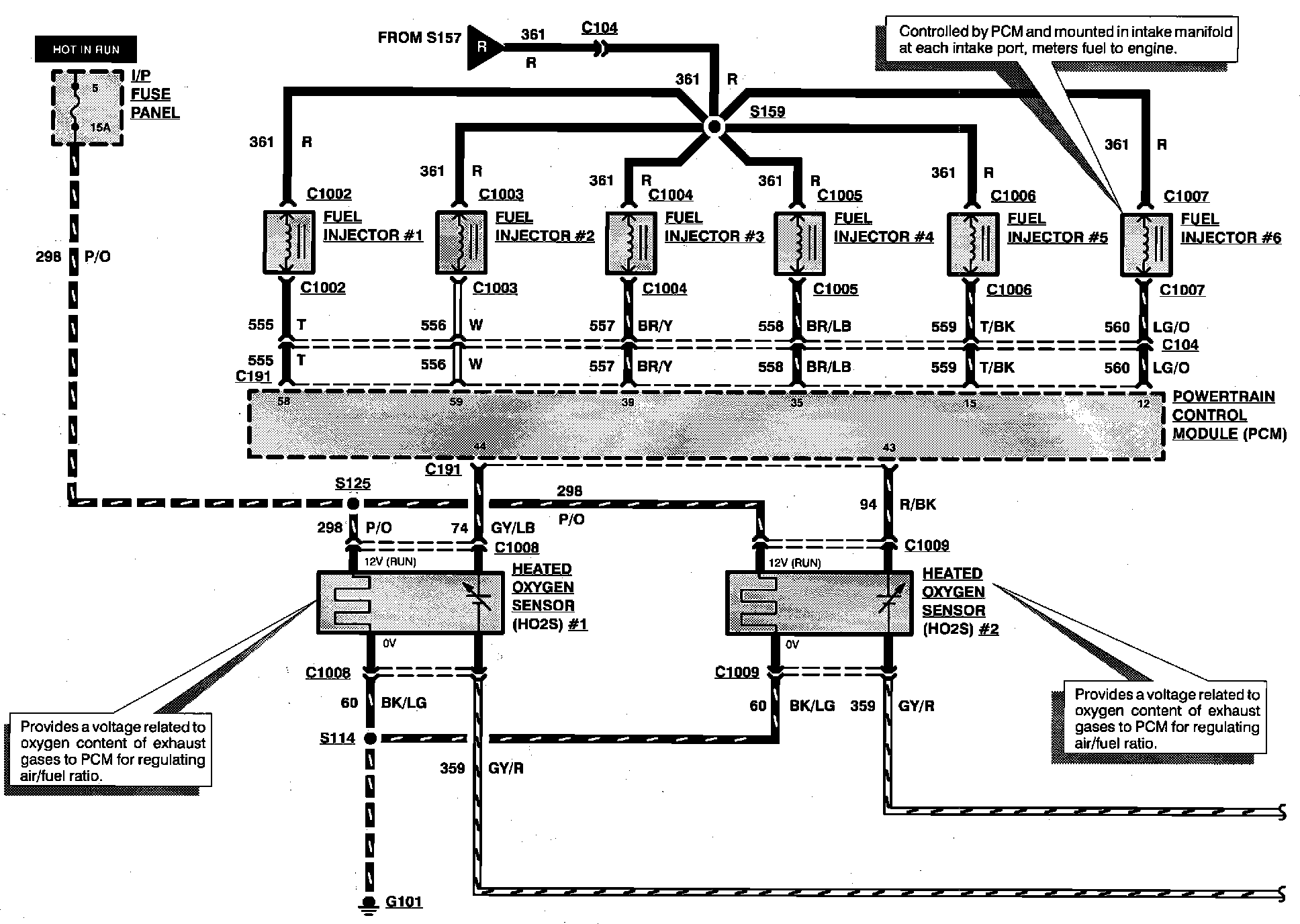

Engine Controls:
FUEL INJECTORS
HEATED OXYGEN SENSOR #1
HEATED OXYGEN SENSOR #2
INSTRUMENT PANEL FUSE PANEL
POWERTRAIN CONTROL MODULE

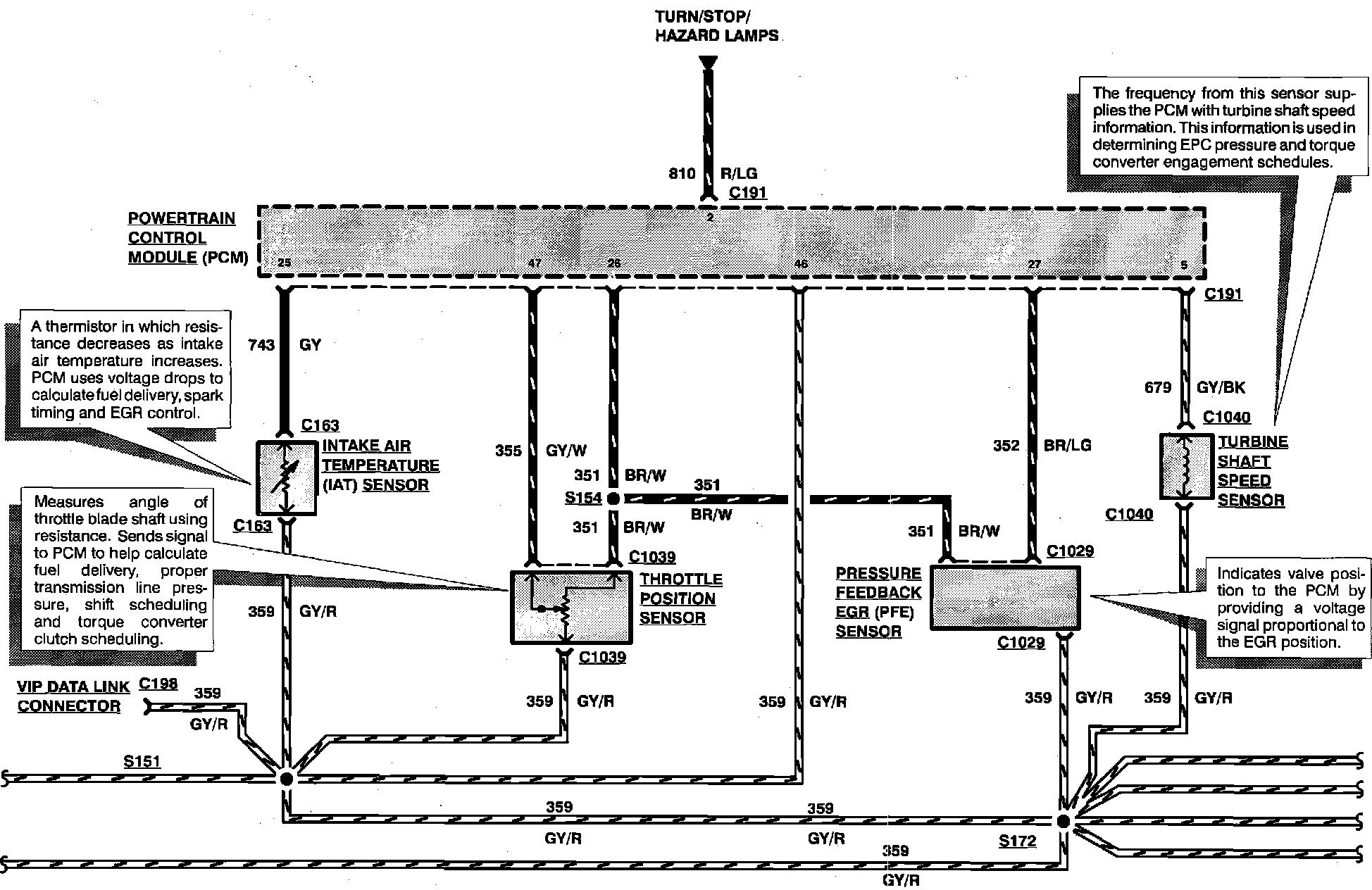

Engine Controls:
INTAKE AIR TEMPERATURE SENSOR
POWERTRAIN CONTROL MODULE
PRESSURE FEEDBACK EGR SENSOR
THROTTLE POSITION SENSOR
TURBINE SHAFT SPEED SENSOR

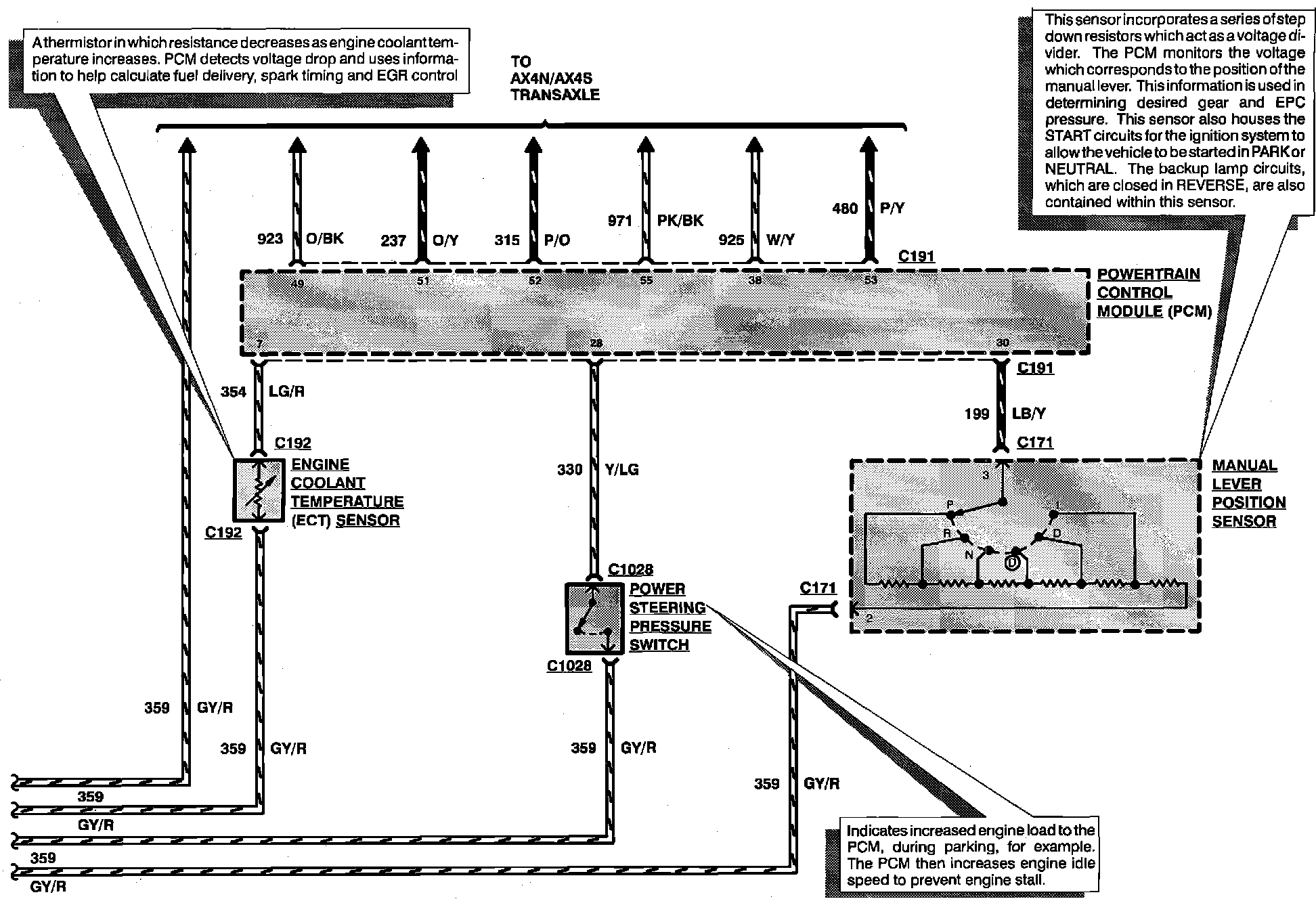

Engine Controls:
ENGINE COOLANT TEMPERATURE SENSOR
MANUAL LEVER POSITION SENSOR
POWER STEERING PRESSURE SWITCH
POWERTRAIN CONTROL MODULE

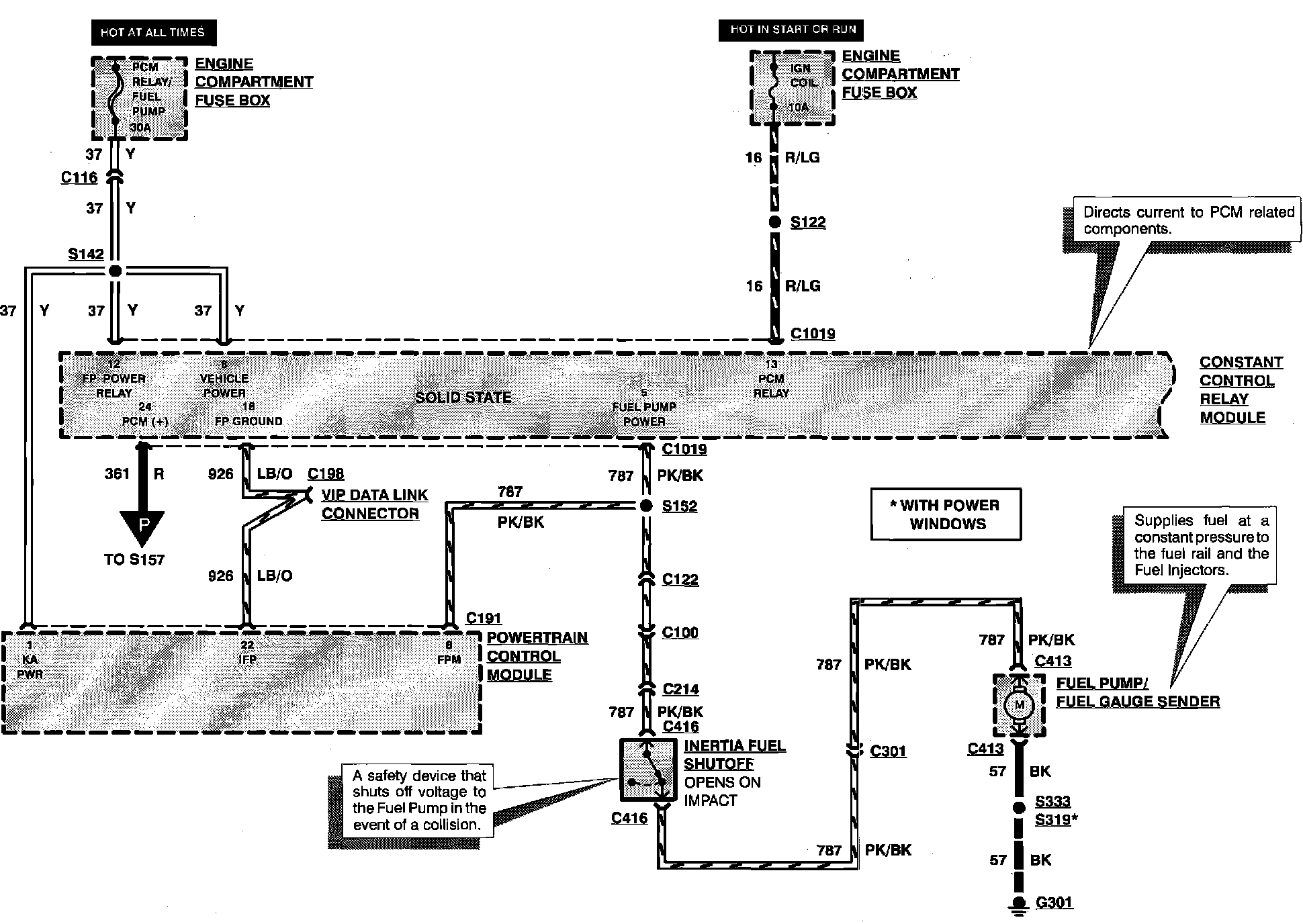

Engine Controls:
CONSTANT CONTROL RELAY MODULE
ENGINE COMPARTMENT FUSE BOX
FUEL PUMP/FUEL GAUGE SENDER
INERTIA FUEL SHUTOFF
POWERTRAIN CONTROL MODULE

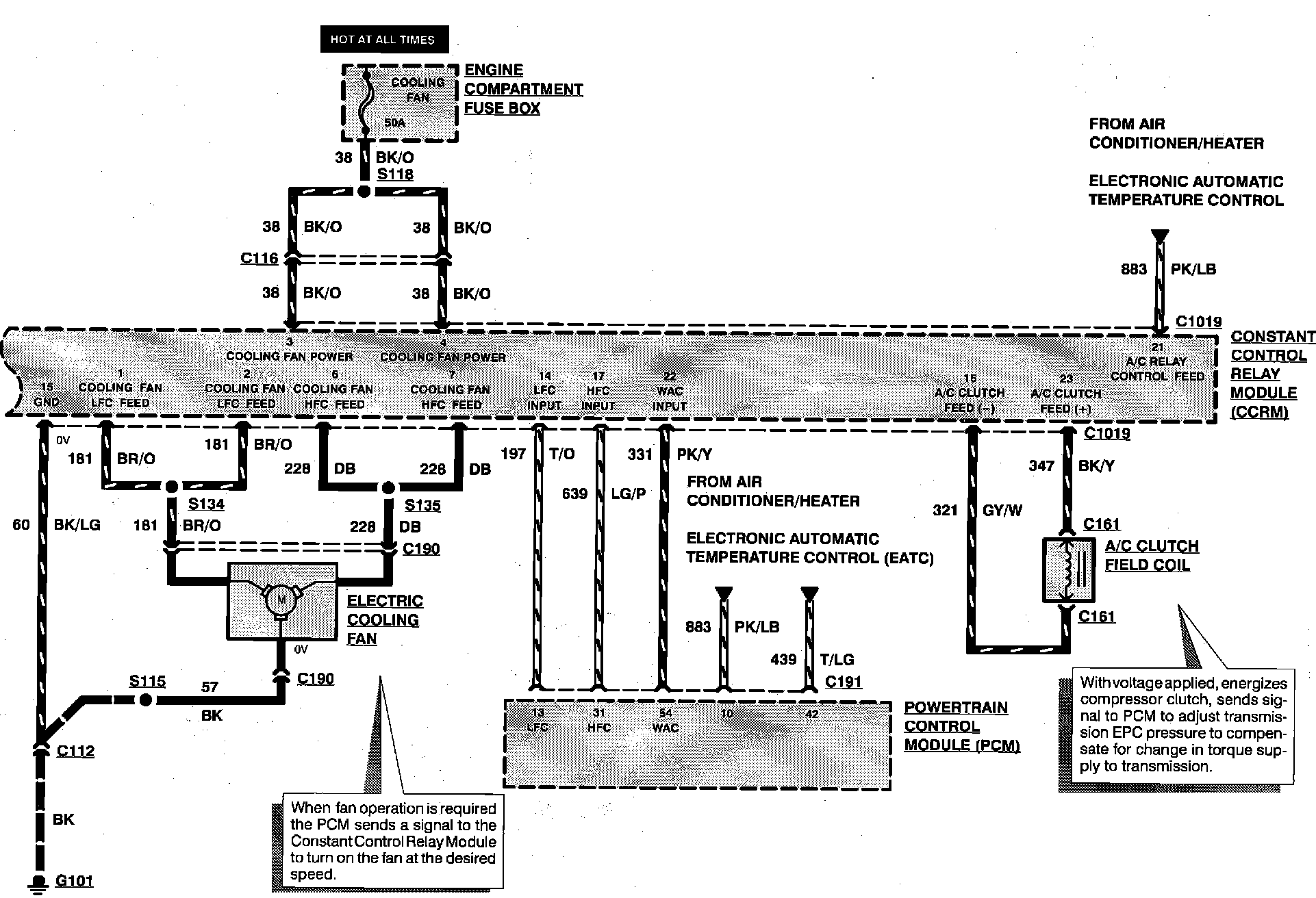

Engine Controls:
A/C CLUTCH FIELD COIL
CONSTANT CONTROL RELAY MODULE
ELECTRIC COOLING FAN
ENGINE COMPARTMENT FUSE BOX
POWERTRAIN CONTROL MODULE
