DL - PFE/DPFE Sensor; EVR Solenoid Testing
>>

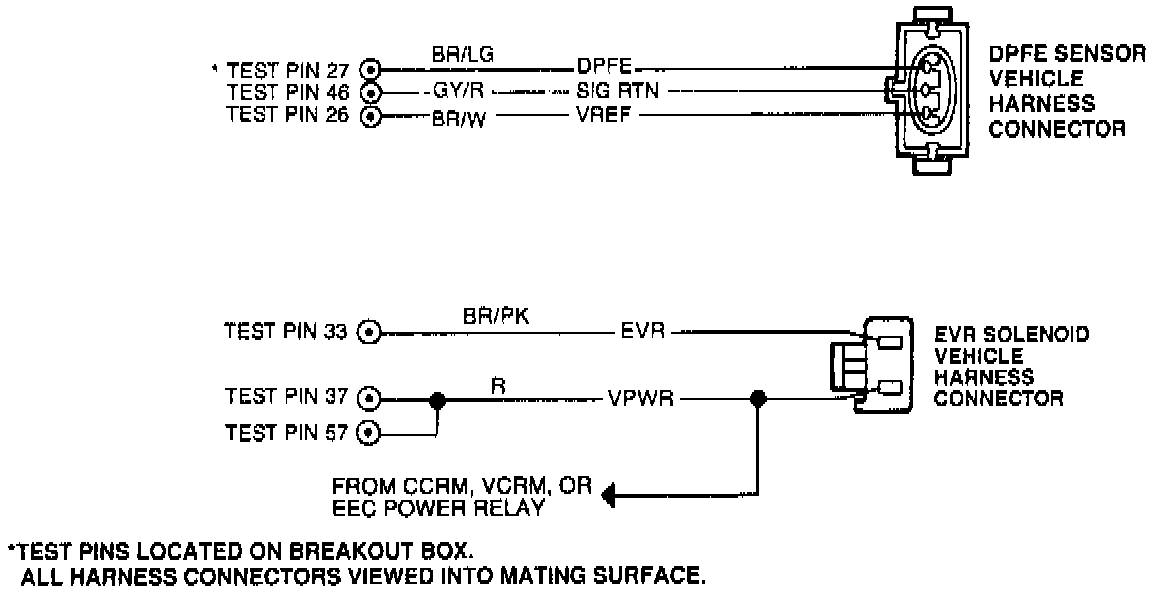

DL - Testing Schematic
>>
DPFE Sensor
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DPFE Sensor
DPFE Harness Connector:
