PFE Sensor

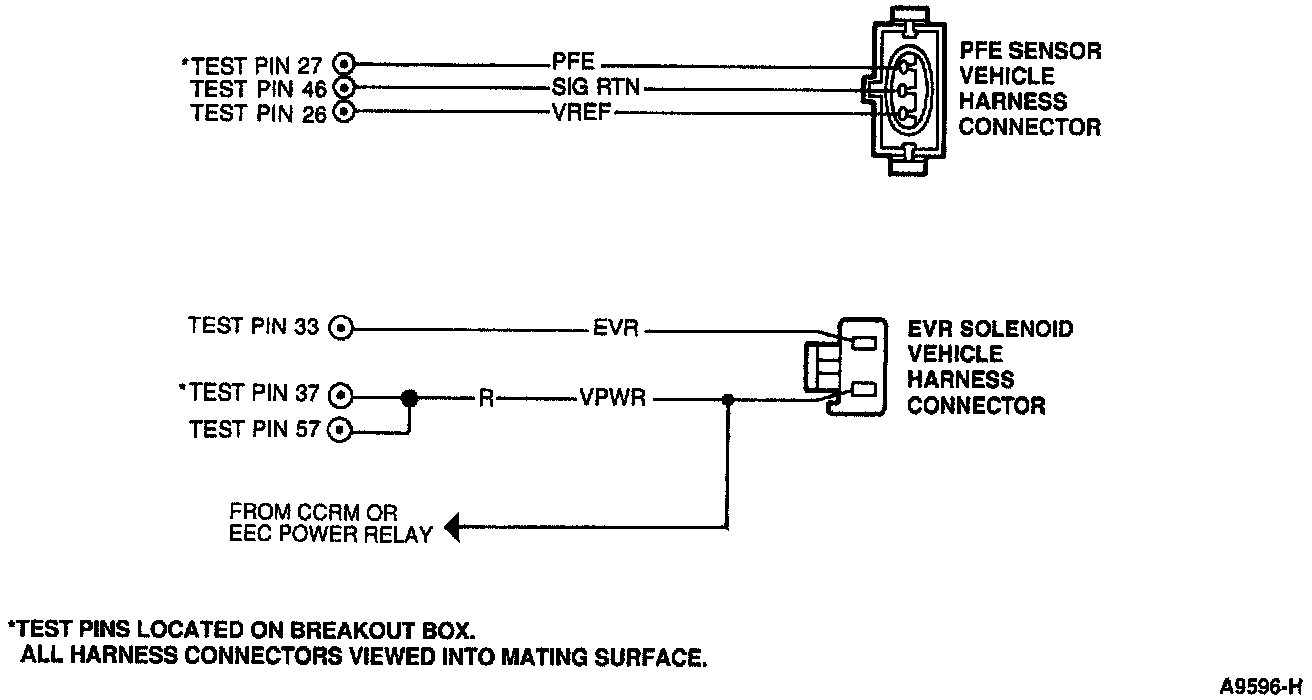

PFE and EVR Connector View:
CIRCUIT / PIN / WIRE COLOR
VREF / 26 / brown/white
EVR / 33 / brown/pink
PFE / 27 / brown/light green
SIG RTN / 46 / gray/red
CIRCUIT / PIN / WIRE COLOR
VREF / 26 / brown/white
EVR / 33 / brown/pink
PFE / 27 / brown/light green
SIG RTN / 46 / gray/red
