H - Test Schematic
Testing Schematic:

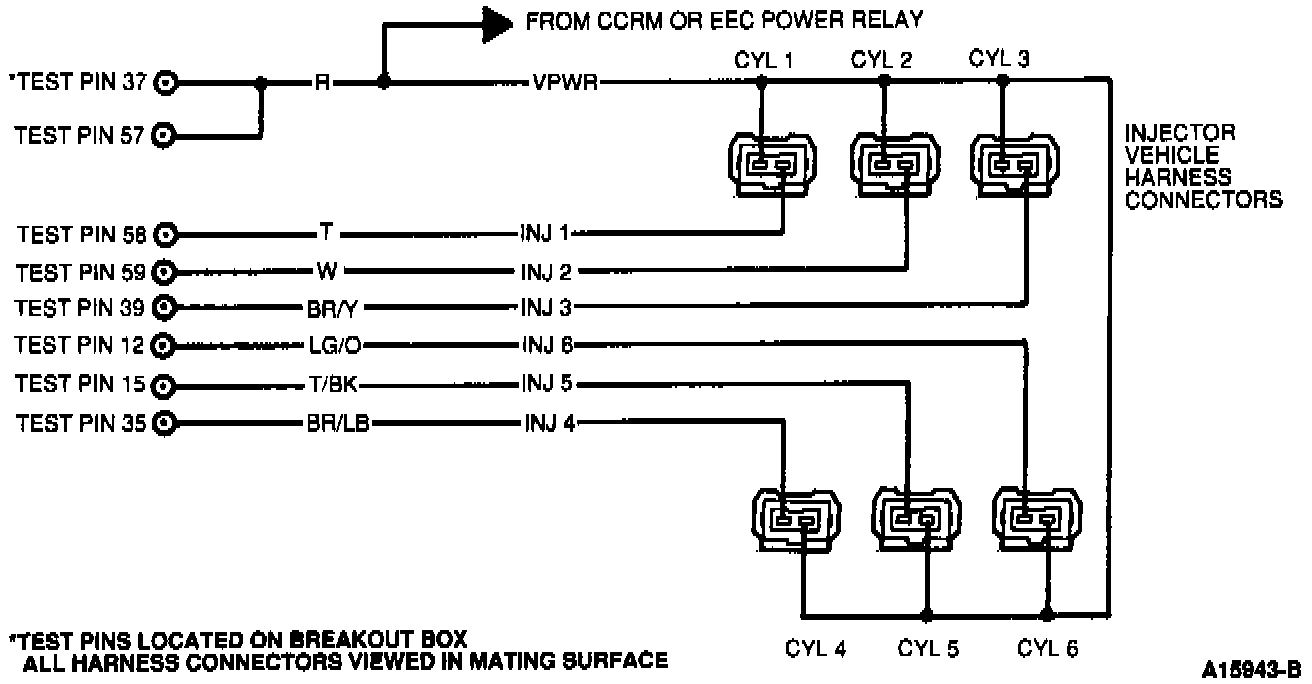

FUEL INJECTOR DIAGRAM
HO2S Diagram:
OXYGEN SENSOR DIAGRAM
CIRCUIT / PIN / WIRE COLOR
HO2S R/R / 44 / dark blue/light green
HO2S L/F / 43 / red/black
FUEL INJECTOR DIAGRAM
OXYGEN SENSOR DIAGRAM
CIRCUIT / PIN / WIRE COLOR
HO2S R/R / 44 / dark blue/light green
HO2S L/F / 43 / red/black
