TG - Electronic Transmission - Continuous Memory Service Codes
>>
TG - Testing Schematic
>>
Position Sensor
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

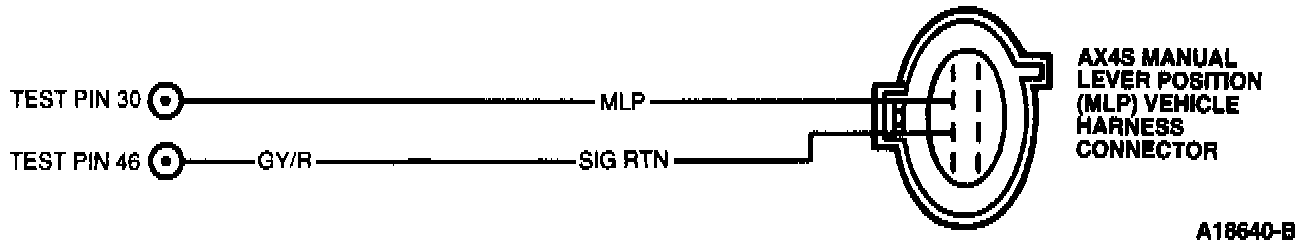

Position Sensor
Testing Schematic:
