Throttle Position Sensor: Diagrams

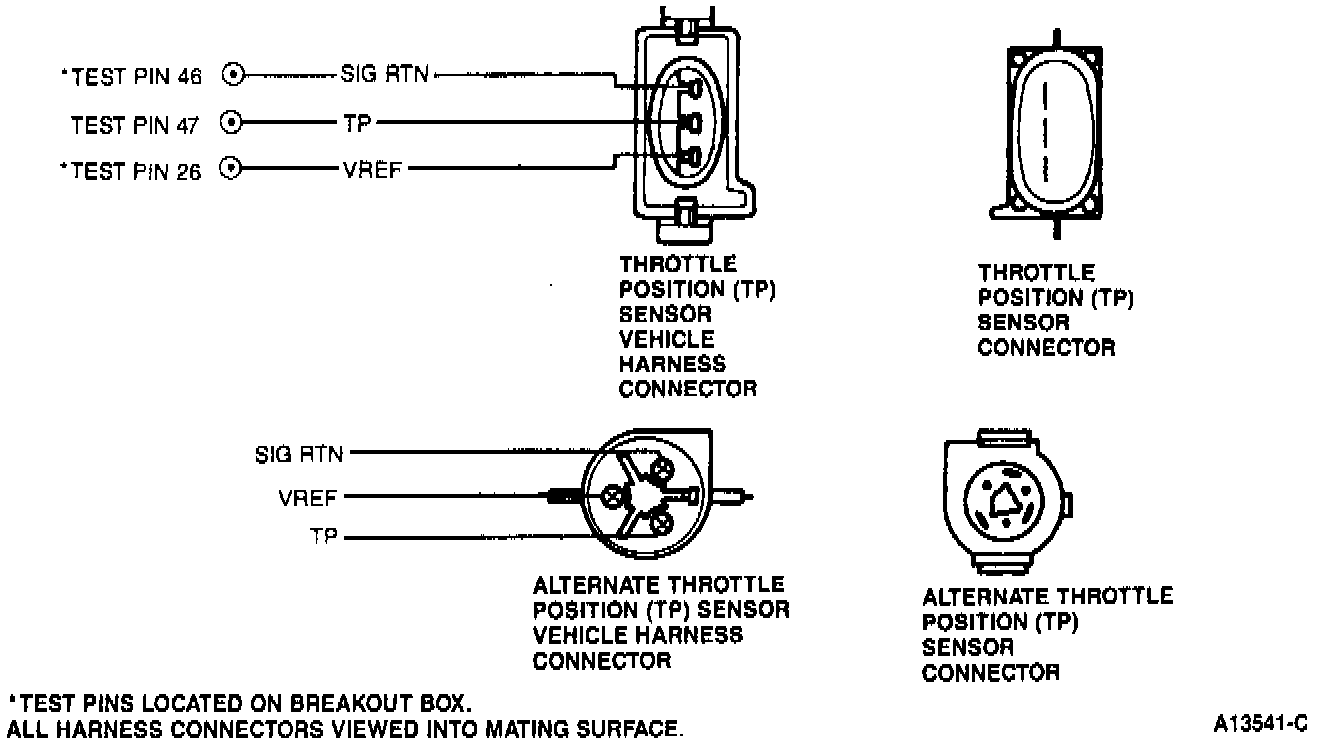

TPS Diagram:






CIRCUIT / WIRE COLOR

TP / gray/white

VREF / brown/white

SIG RTN / gray/red
