Power Window Switch: Testing and Inspection

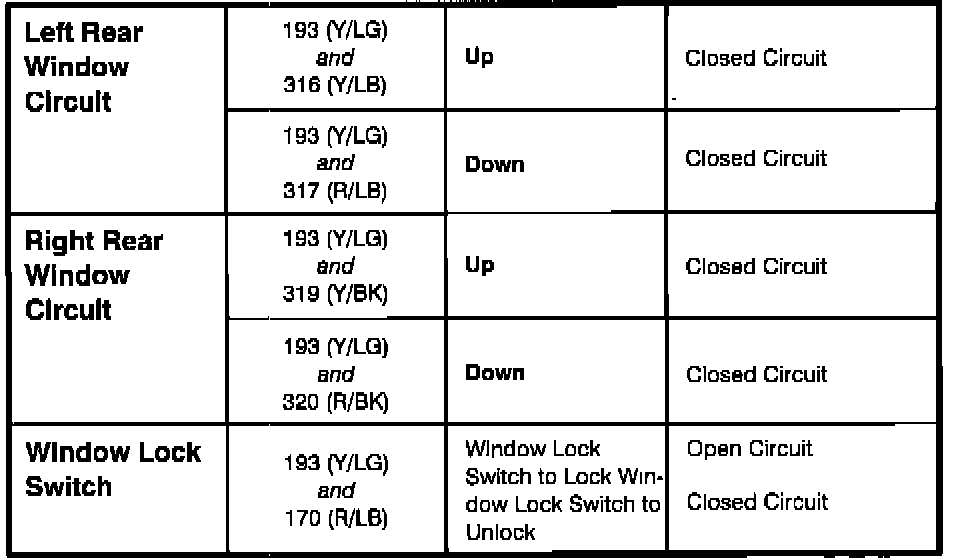

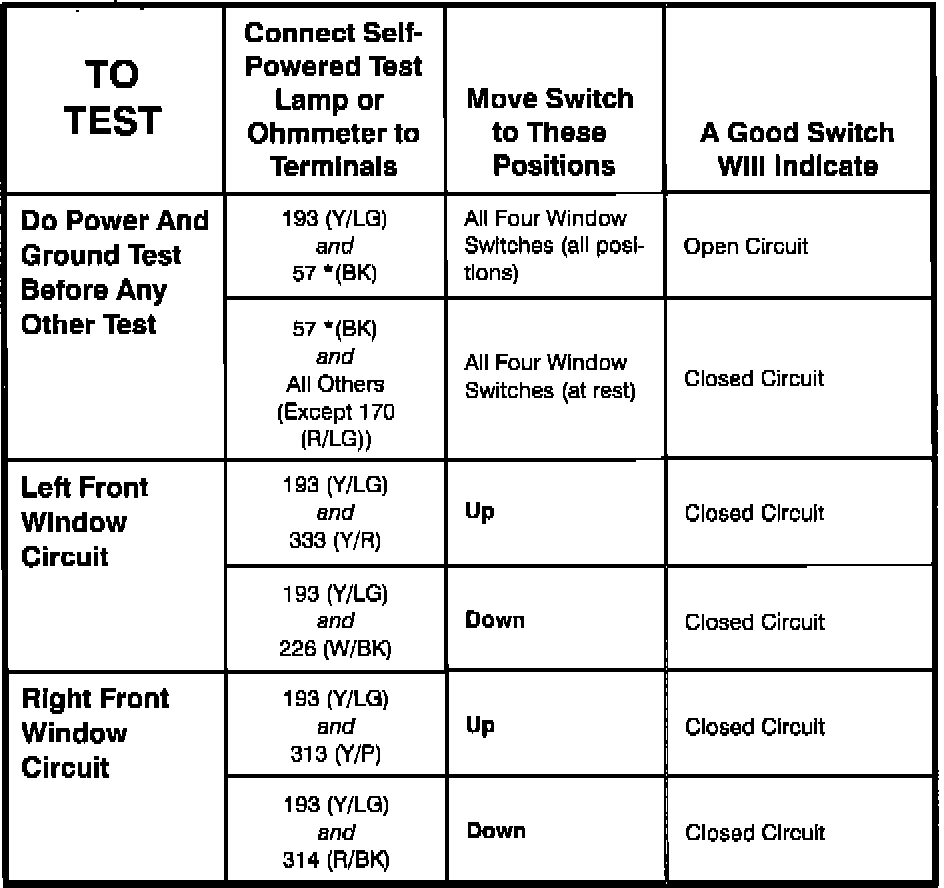

Component Testing Procedure:

COMPONENT TESTING PROCEDURE

Component Testing Procedure:

COMPONENT TESTING PROCEDURE

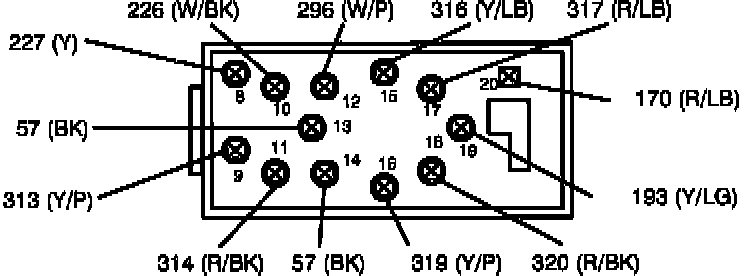

Terminal ID:

TERMINAL IDENTIFICATION

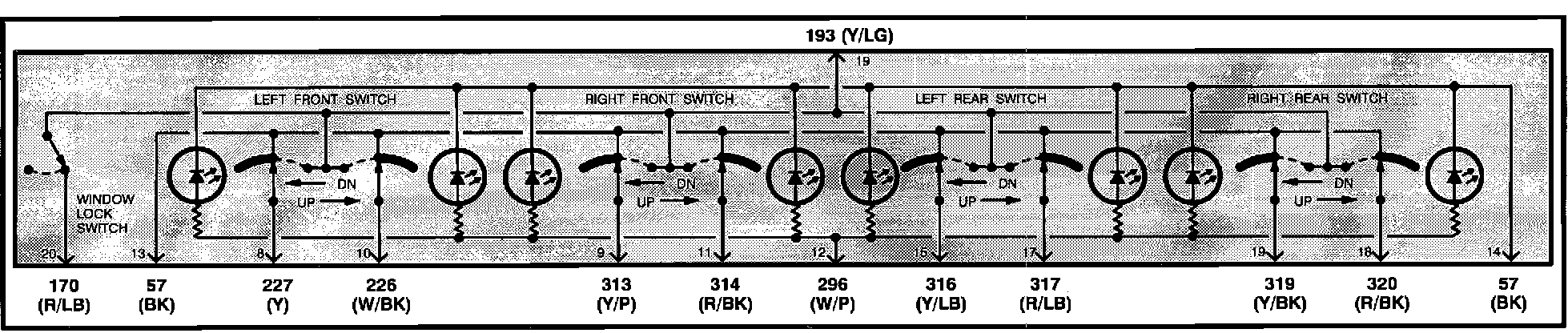

Schematic:

SCHEMATIC
