Thunderbird V6-232 3.8L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
>>
C2015
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

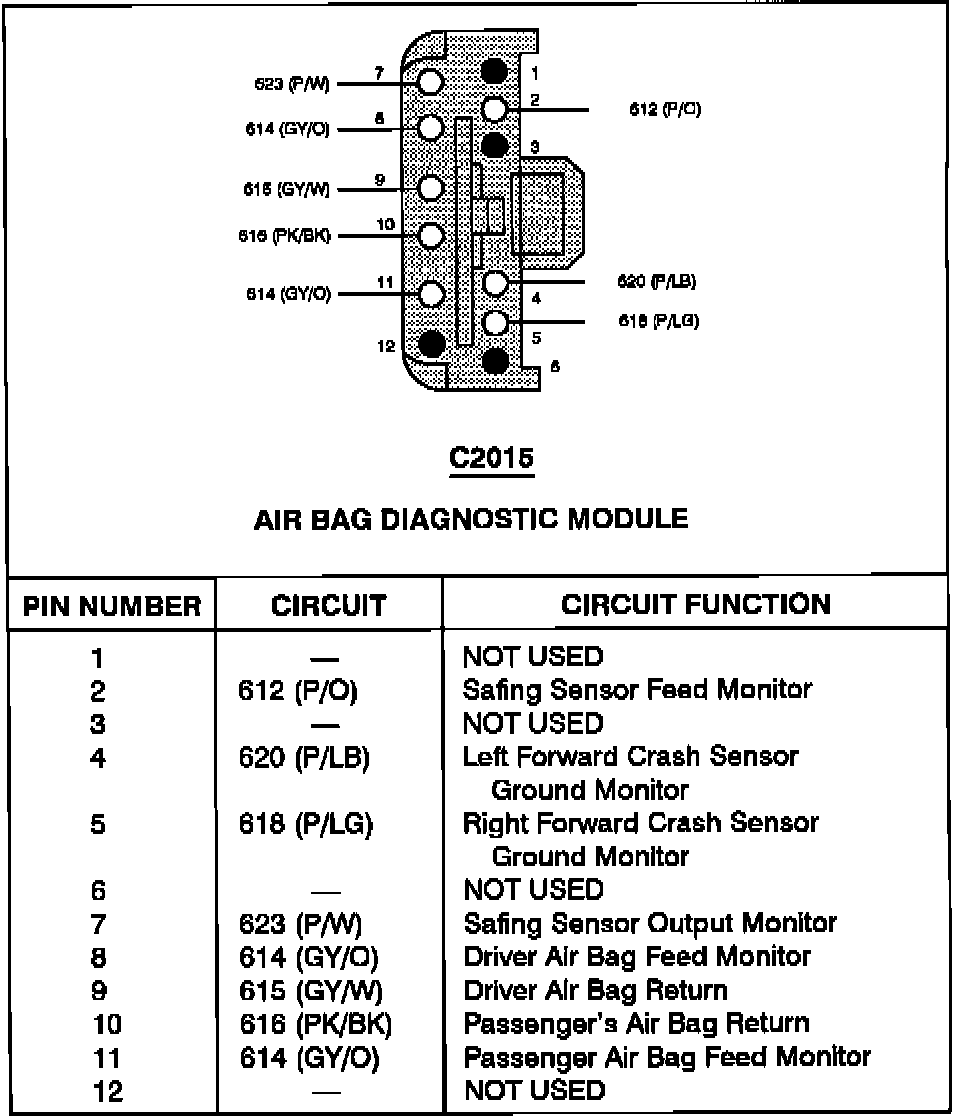

C2015
Air Bag Diagnostic Module:
