M/T Technical Data

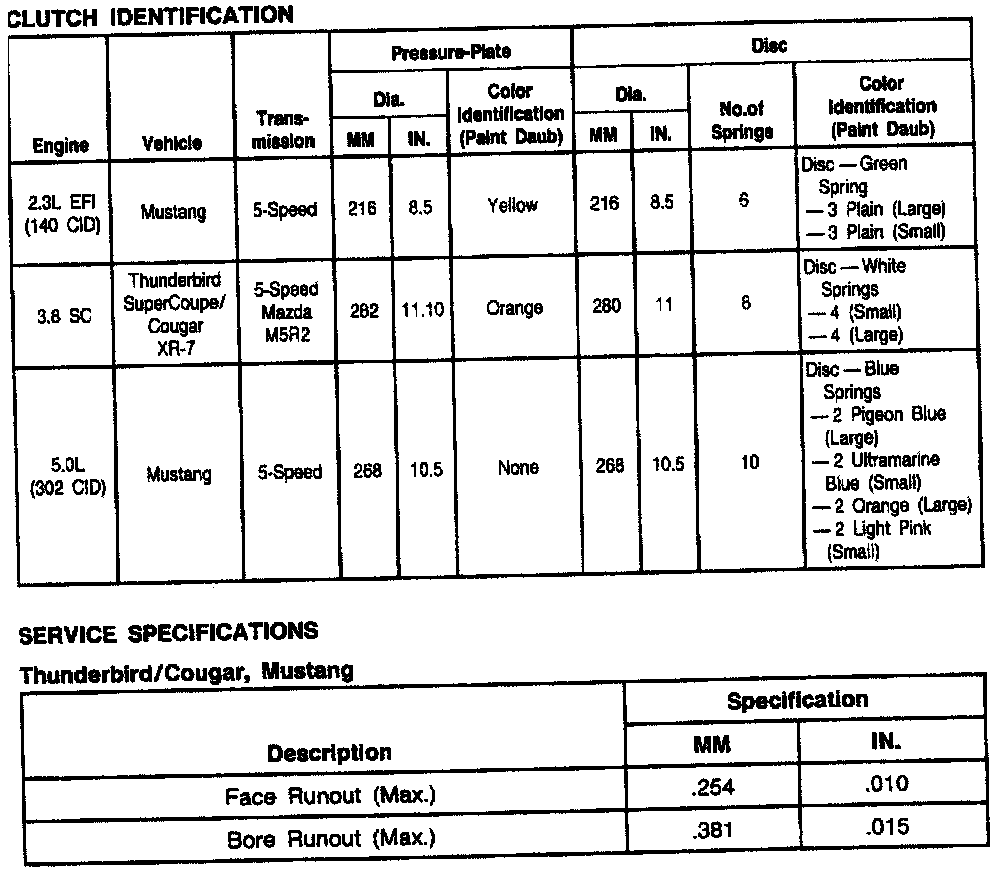

M5R2 5-spd M/T, Clutch/Pressure Plate-Runout:

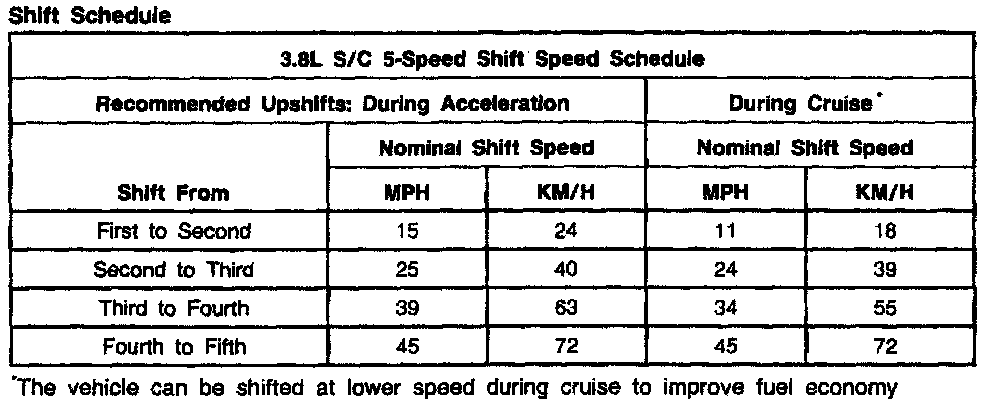

M5R2 5-spd M/T, Shift Speeds (3.8L SC):

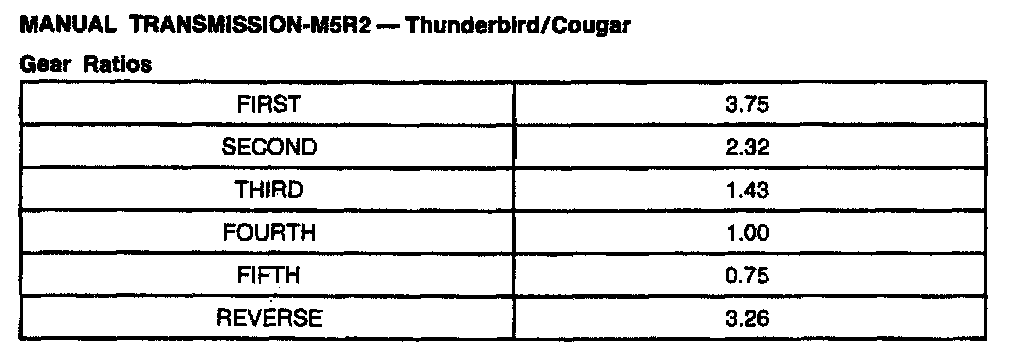

M5R2 5-spd M/T, Gear Ratios:

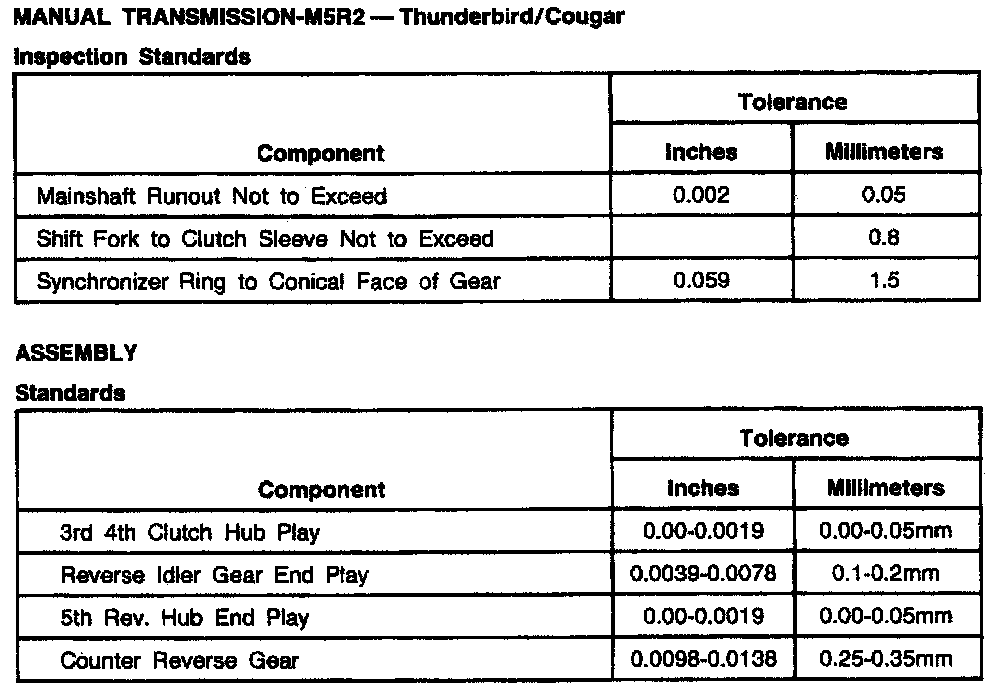

M5R2 5-spd M/T, Mainshaft Runout/Standards:
