Keyless Entry System: Testing: Notes

NOTE: Keep driver's window rolled down when performing tests to prevent being locked out of vehicle.

A New Generation Star (NGS) Tester (007-00500) is required for testing the keyless entry system. The following tests make numerous references to DDM connectors and terminals. See Fig 1 .

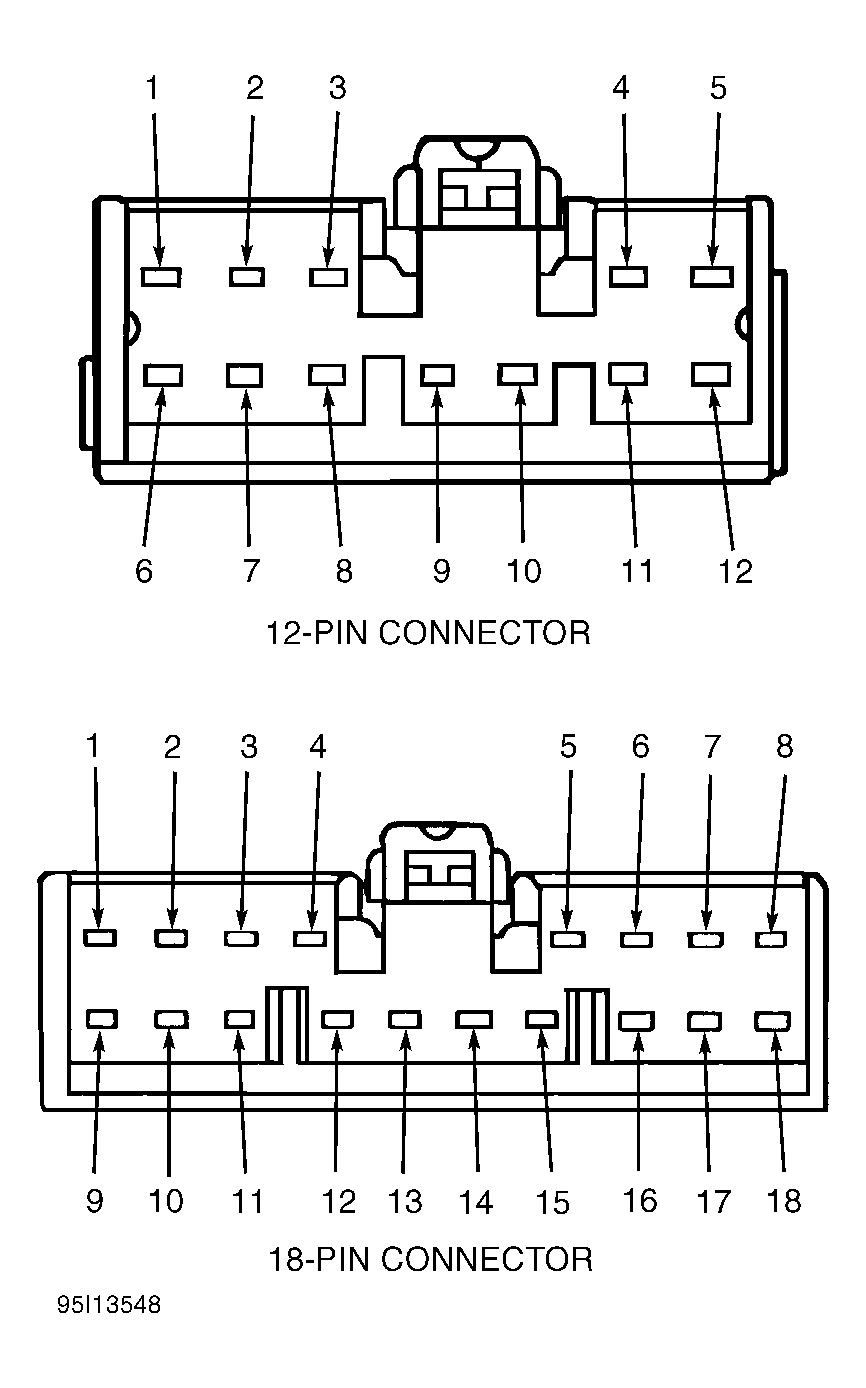

Fig 1: Identifying Driver's Door Module Connector Terminals

Courtesy of FORD MOTOR CO.
