Firing Order & Timing Marks

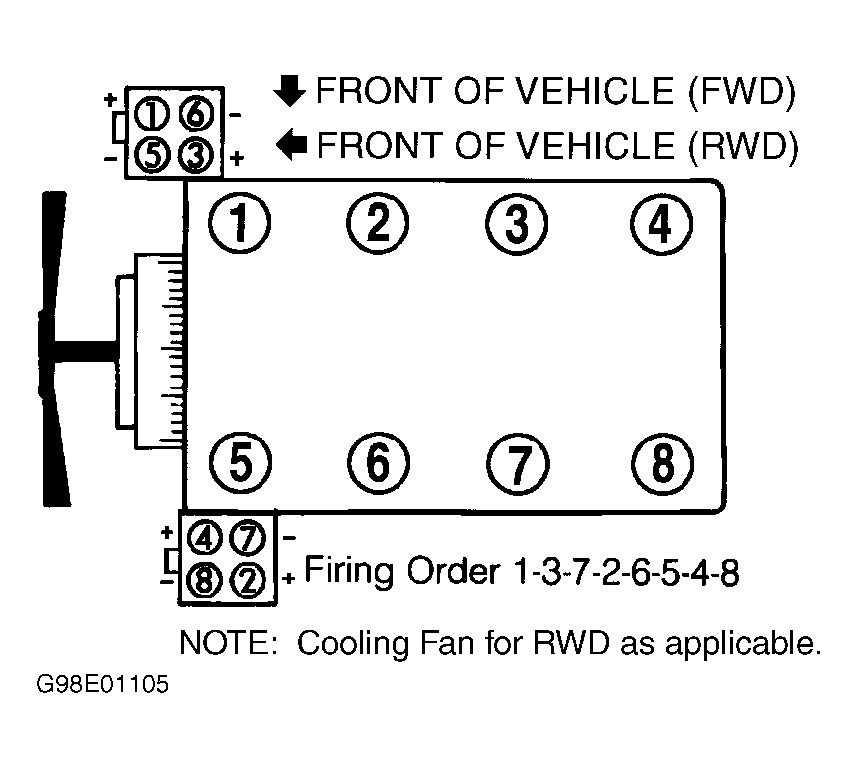

Fig 1: Identifying Firing Order & Timing Marks
G98E01105

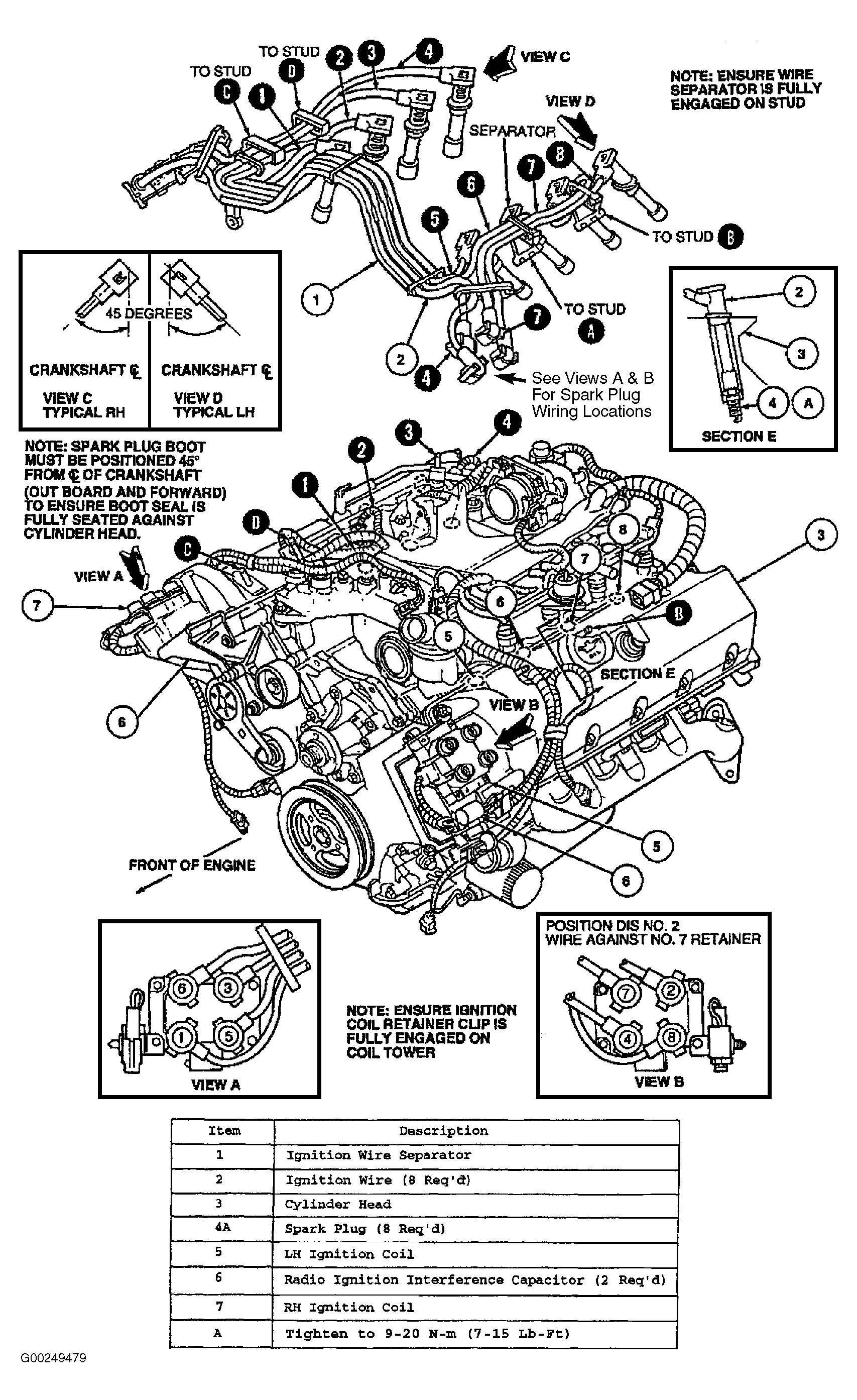

Fig 2: Identifying Spark Plug Wire Routing
G00249479Courtesy of FORD MOTOR CO.
