Component Locations (Ranger)

COMPONENT LOCATIONS (RANGER)

Component

Location

Generic Electronic Module

Behind Center Of Dash. See Fig 1.

Ground G200

Behind Left Side Of Dash. See Fig 3.

Instrument Panel Fuse Panel

Behind Lower Left Side Of Dash. See Fig 1.

Left Hand Window Motor

Lower Center Of Left Hand Door

One Touch Down Module ⁽¹⁾

In Relay Box No. 1, Behind Instrument Panel, To Right Of Steering Column. See Fig 3 & Figure .

Power Window Circuit Breaker (20A)

Left Rear Corner Of Engine Compartment. See Fig 2.

Power Window Relay

Behind Right Side Of Dash, Right Of Glove Box. See Fig 1.

Right Hand Window Motor

Lower Center Of Right Hand Door

⁽¹⁾	One touch down module is also known as a one touch down relay.

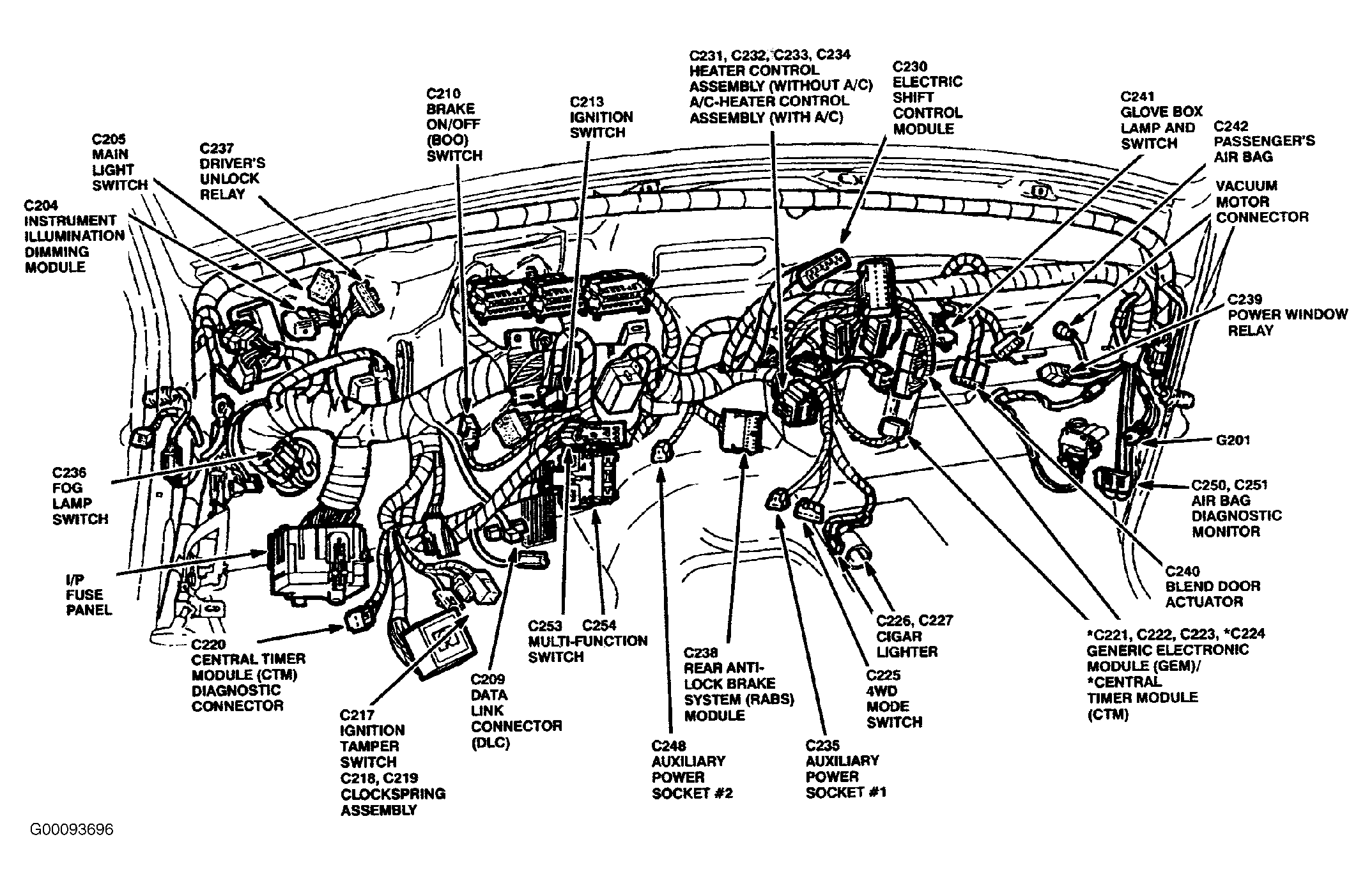

Fig 1: Locating Generic Electronic Module, Instrument Panel Fuse Panel & Power Window Relay (Ranger)

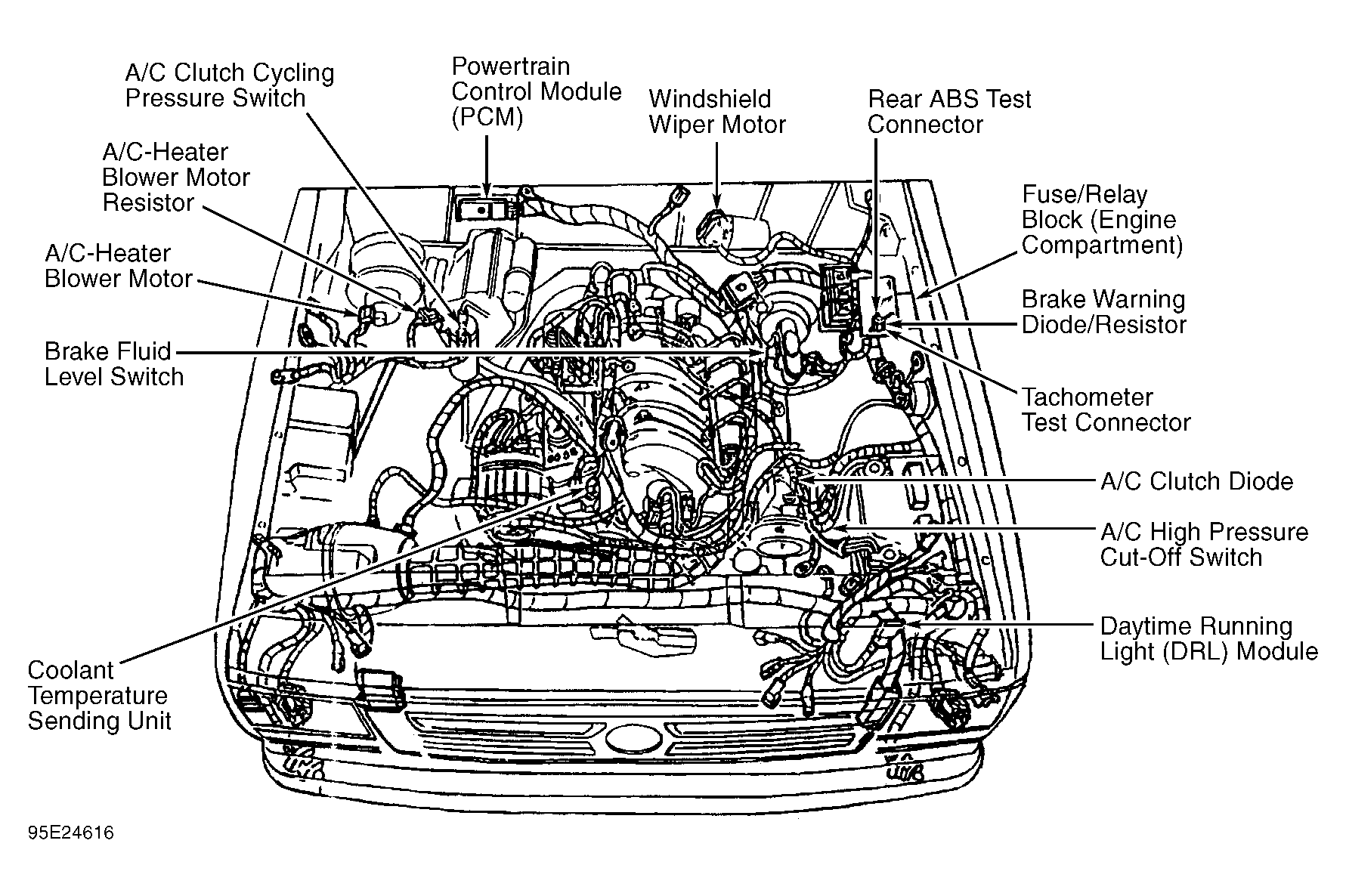

Fig 2: Locating Engine Compartment Fuse/Relay Block (Ranger)

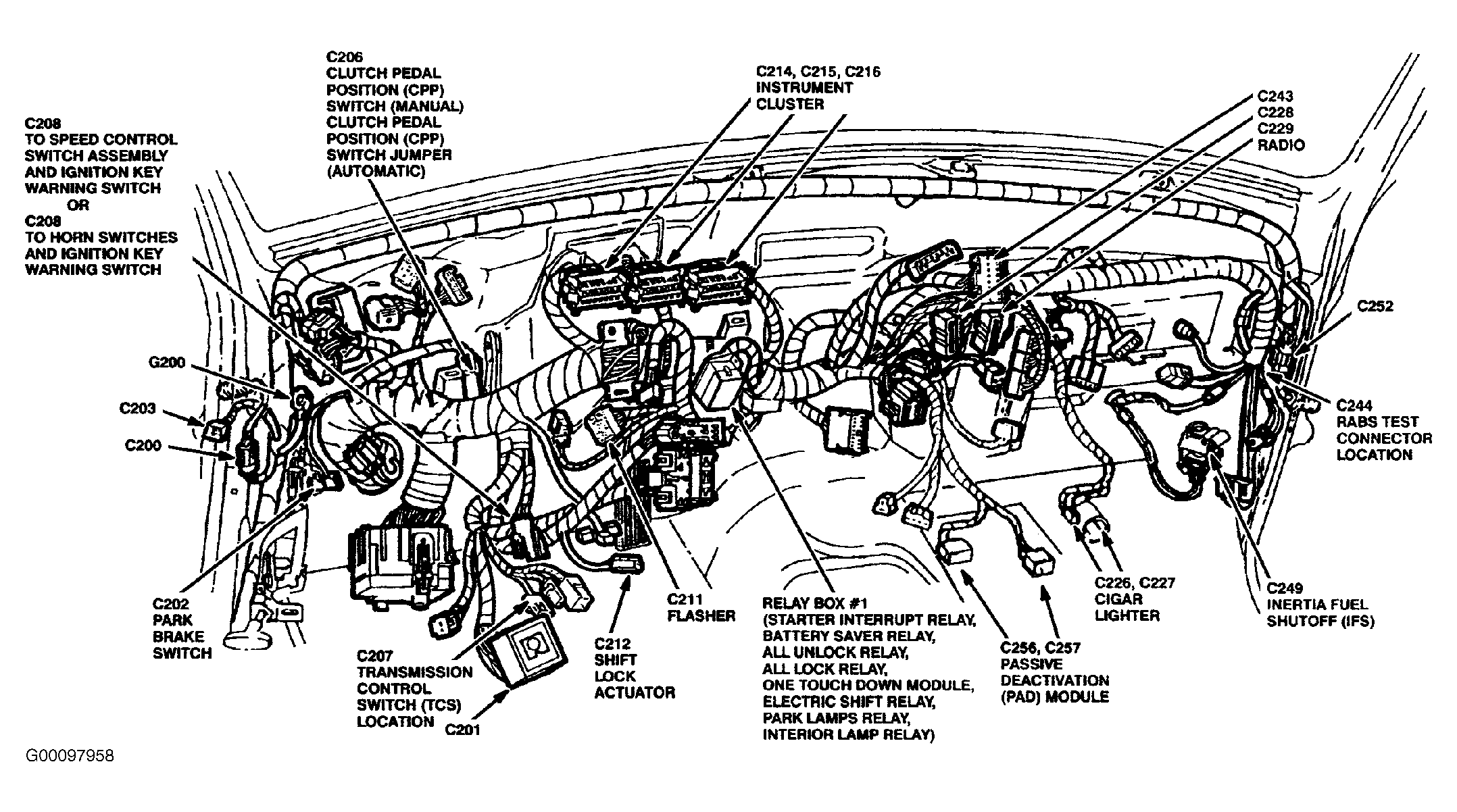

Fig 3: Locating Ground G200 & Relay Box No. 1 (Ranger)

Courtesy of FORD MOTOR CO.
