Generic Electronic Module

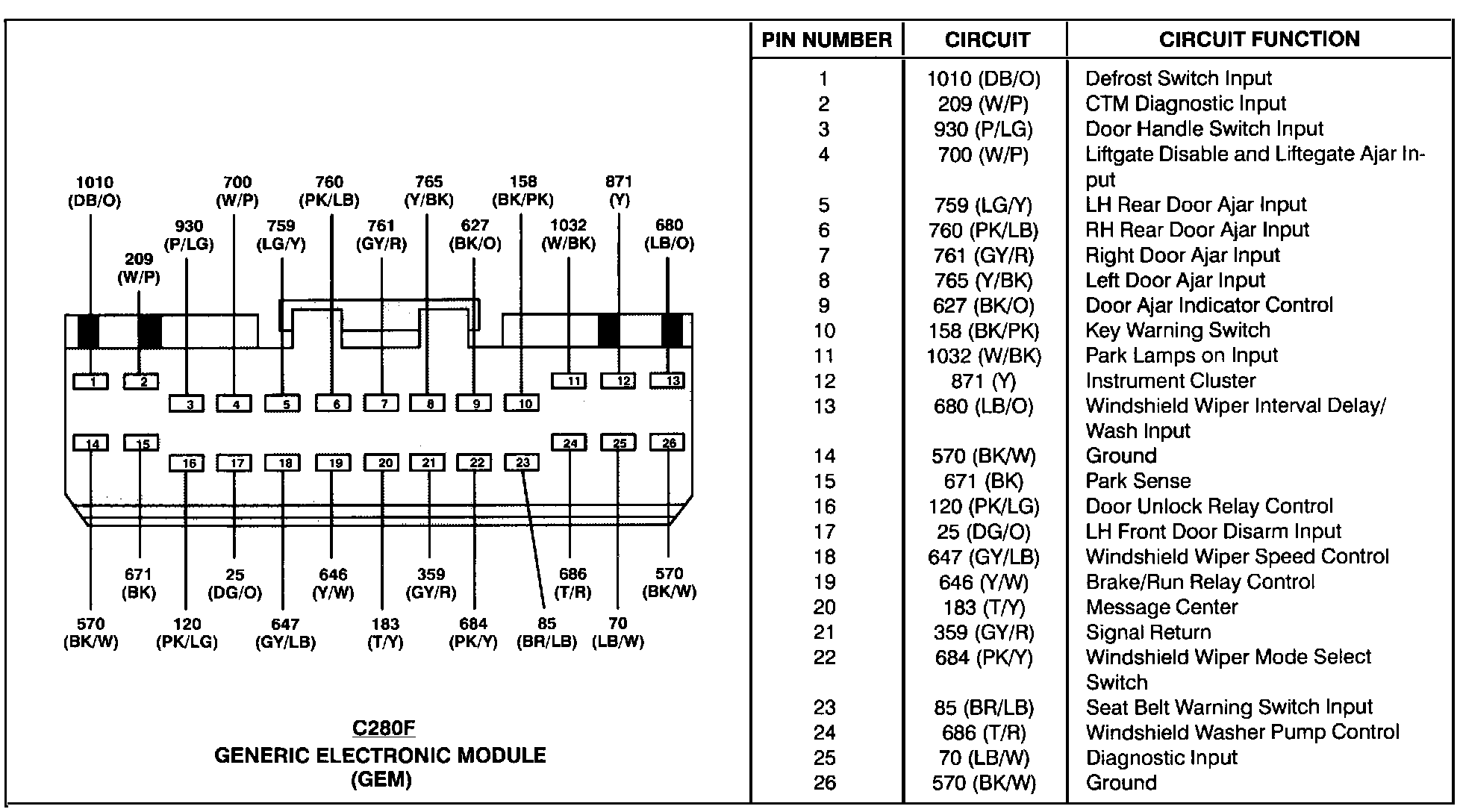

Generic Electronic Module (C280F):

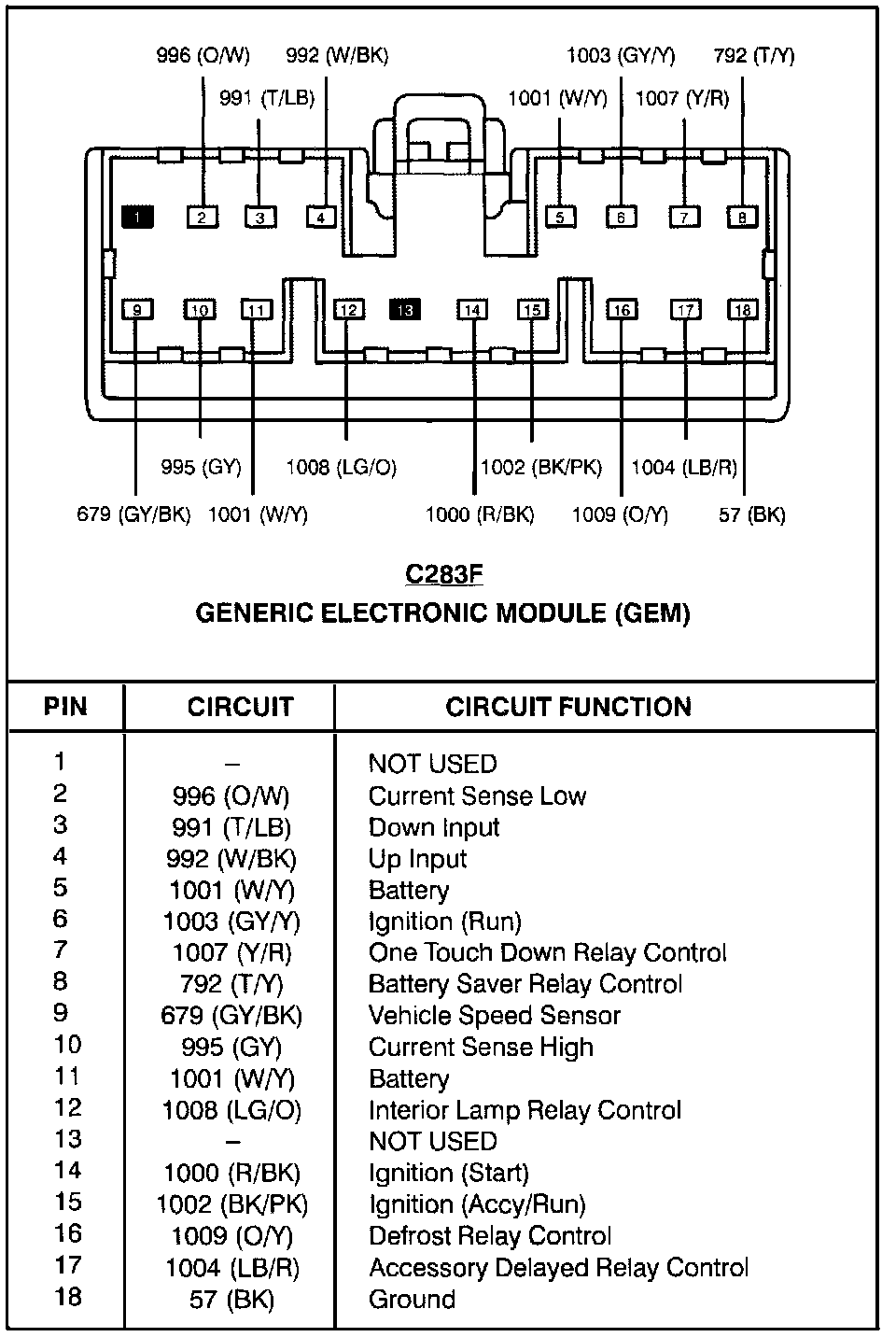

Generic Electronic Module (C283F):

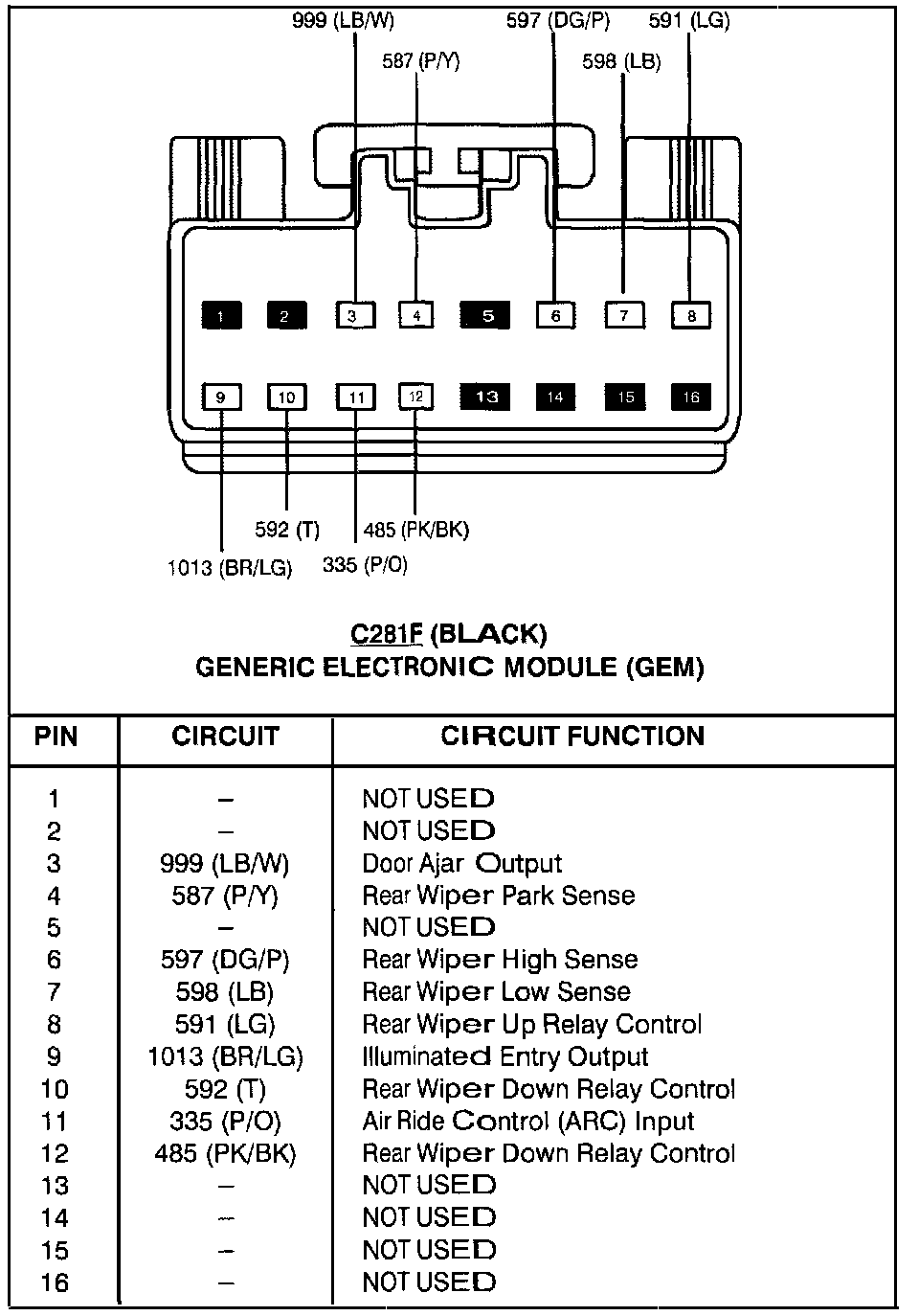

Generic Electronic Module (C281F):

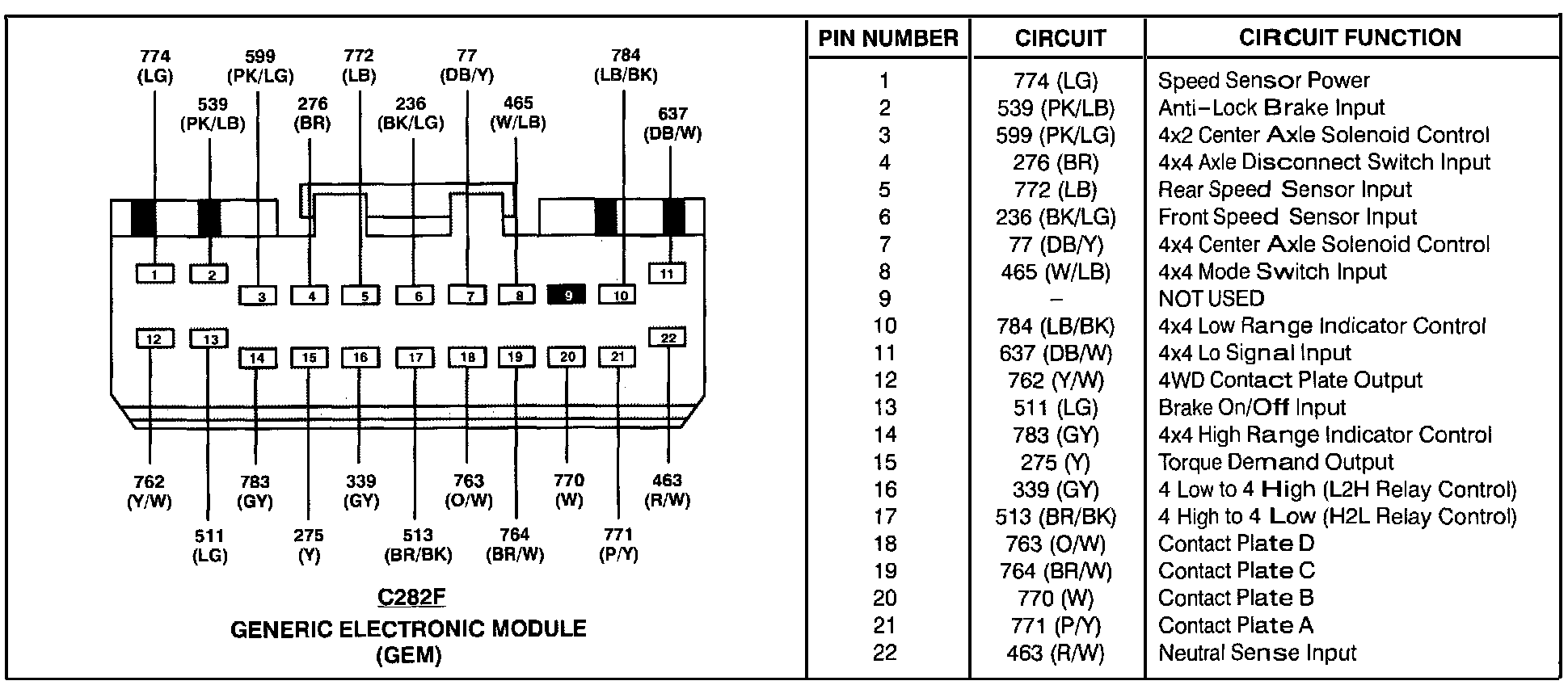

Generic Electronic Module (C282F):
