Ignition Control Module

Ignition Control Module:

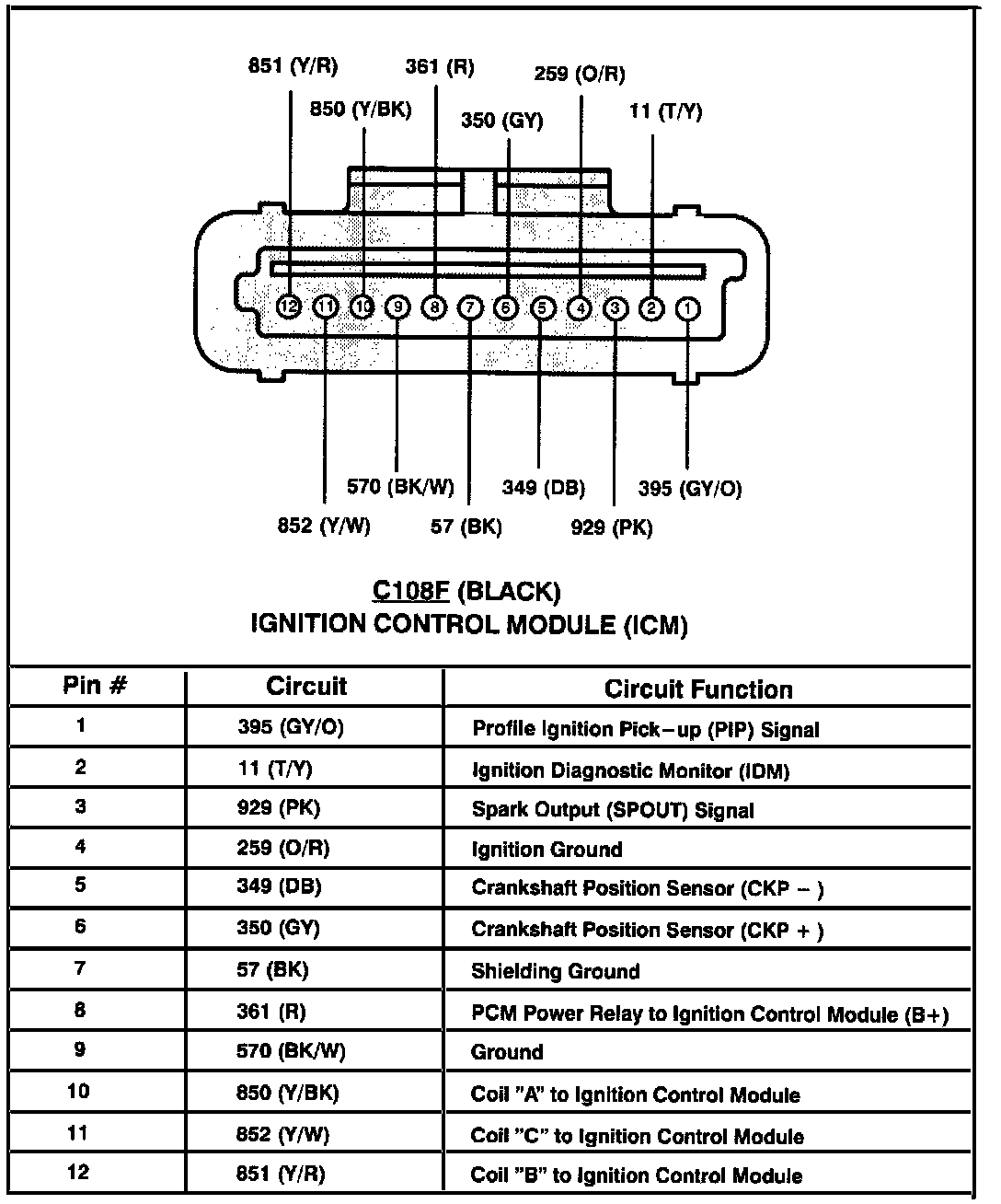

Connector View


Electronic Distributorless Ignition System (EDIS) Module:




Ignition Control Module (ICM)

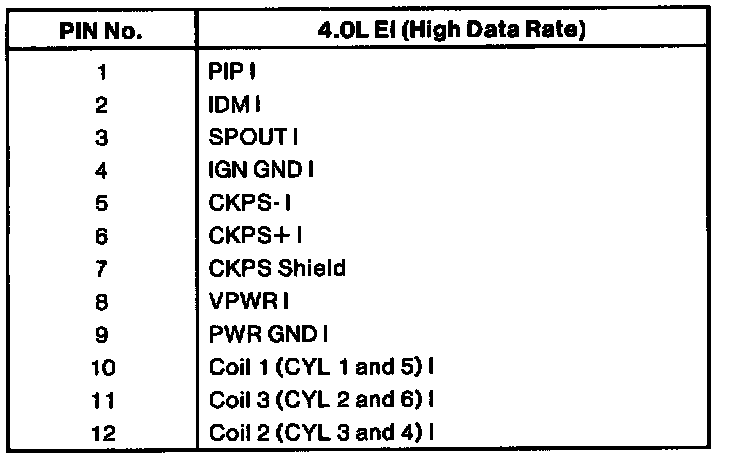

Pin-Out
