Main Relay (Computer/Fuel System): Locations

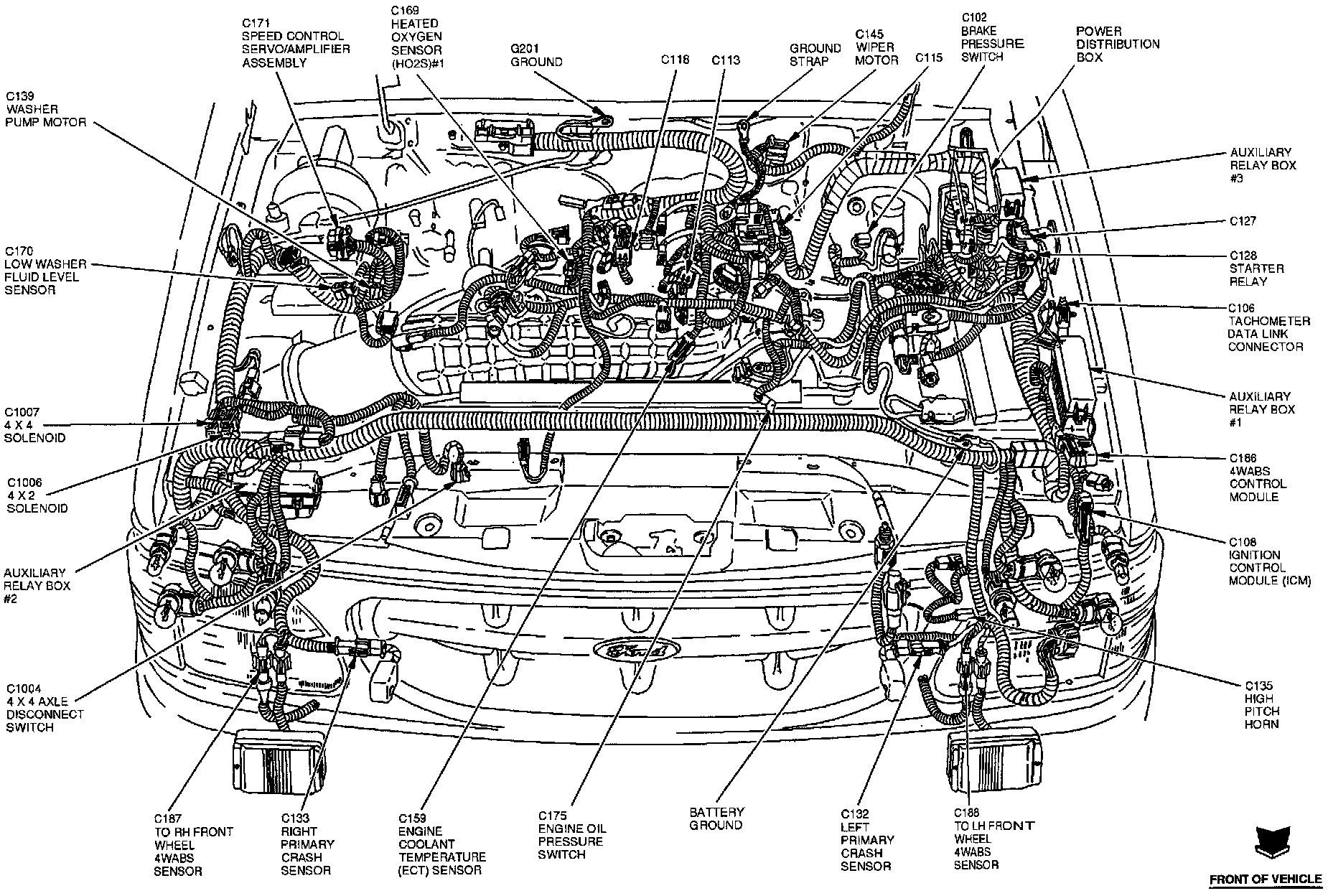

Engine View:

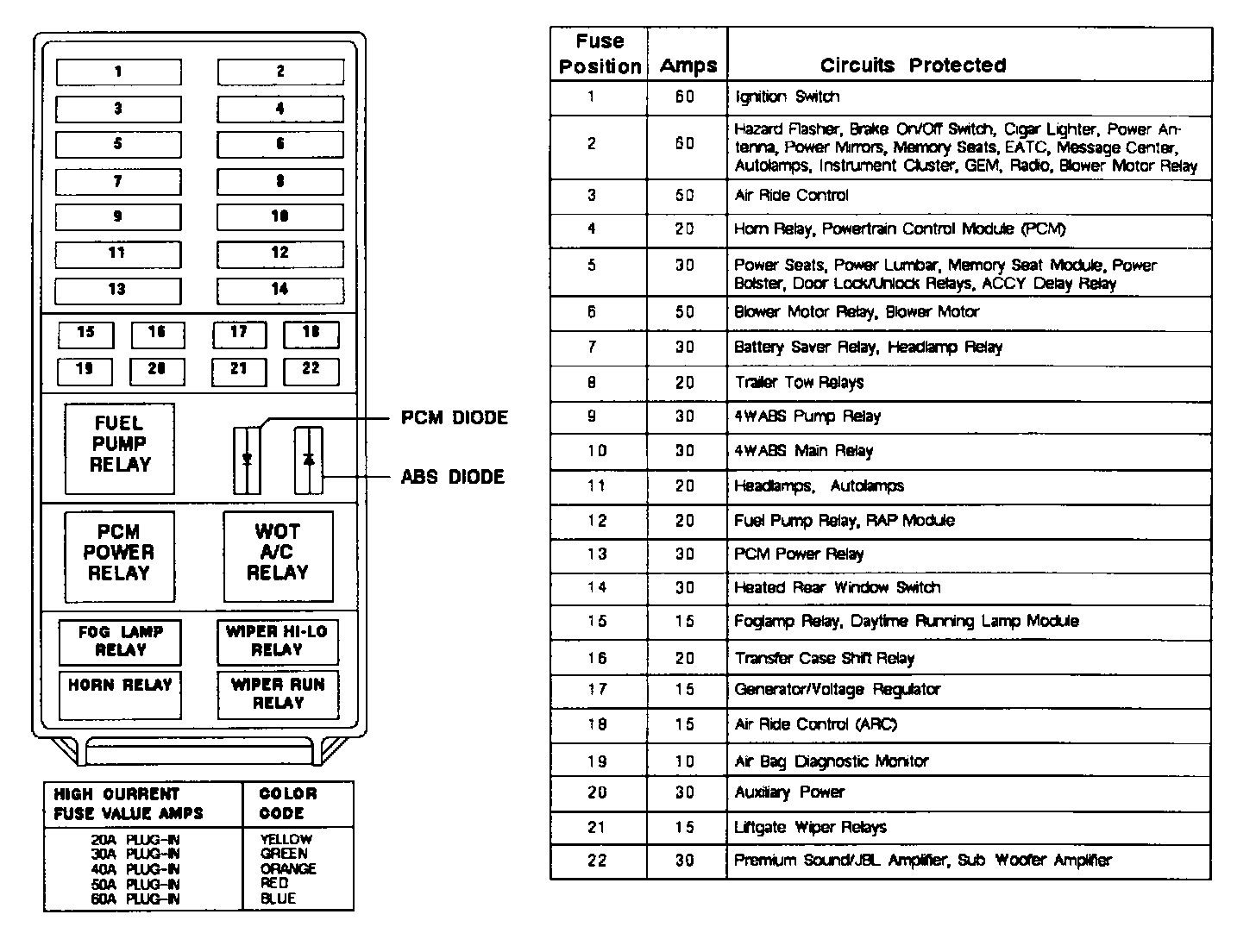

The PCM Power Relay is mounted in the power distribution box at the RH fender apron.
