Interior Fuse Panel Identification: Notes

Fuse panel is located in instrument panel, just to the left of steering column.

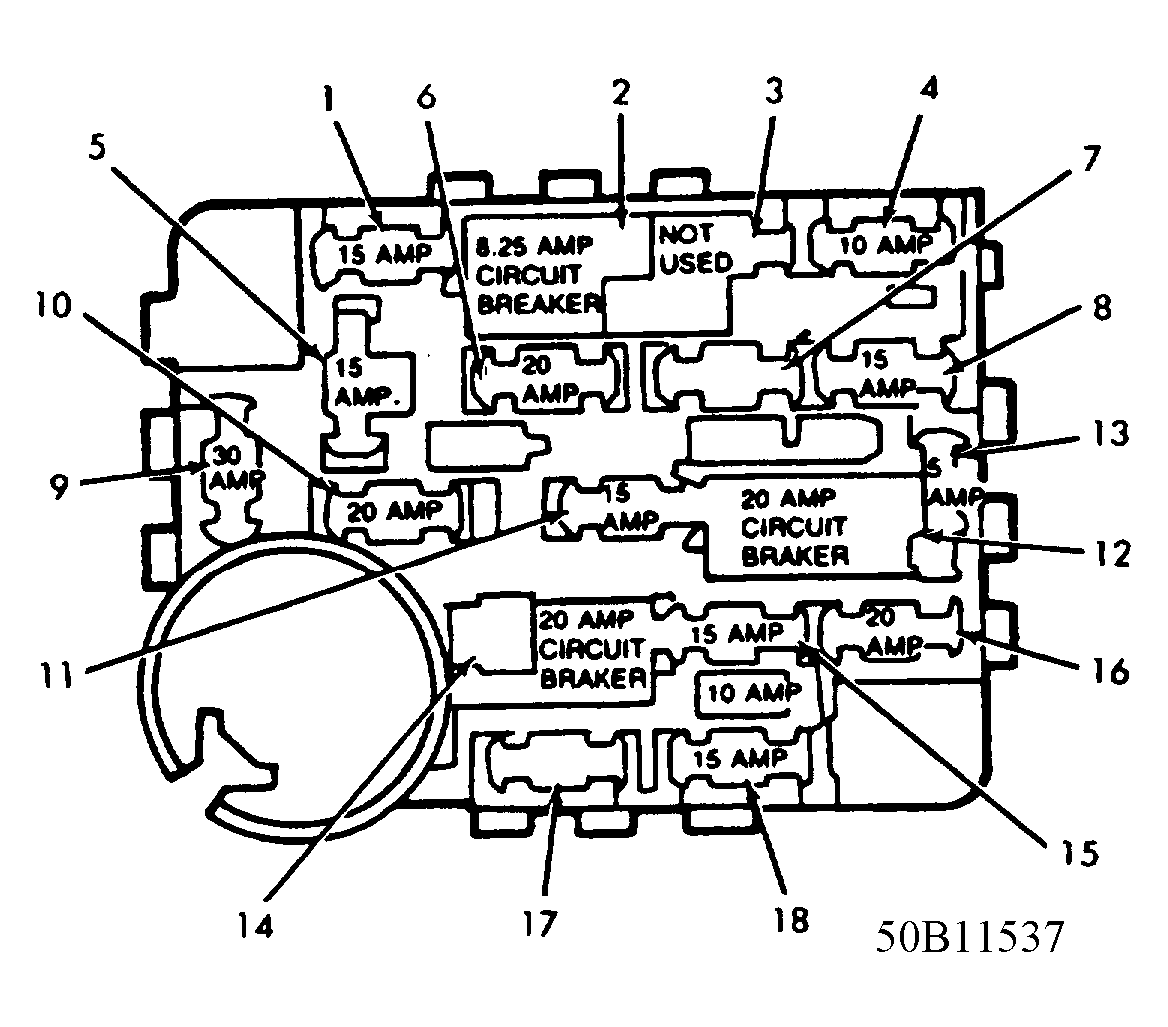

Fig 1: Interior Fuse Panel Identification
G50B11537Courtesy of FORD MOTOR CO.
