A/T Technical Data

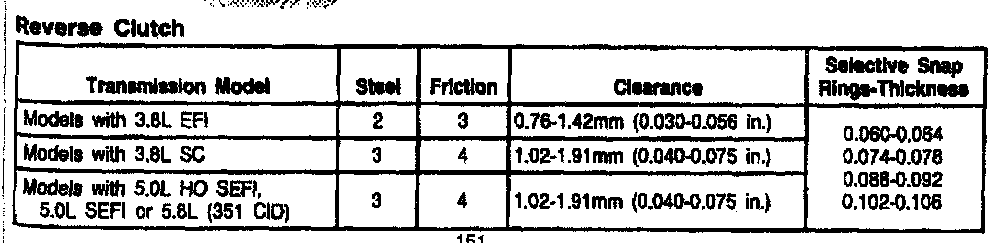

AODE 4-spd A/T, Reverse Clutch (3.8L,5.0L,5.8L):

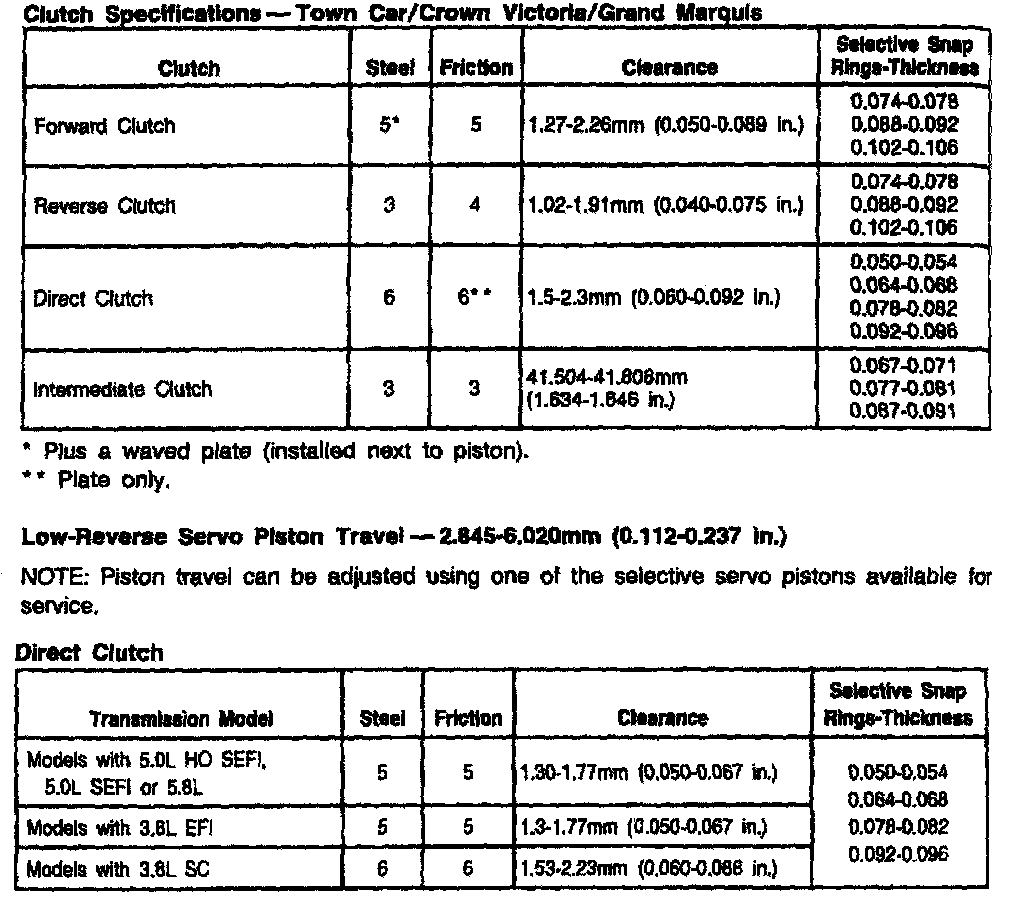

AODE 4-spd A/T, Clutch/Servo (Town Car/ Crown Vic/Grand Marquis):

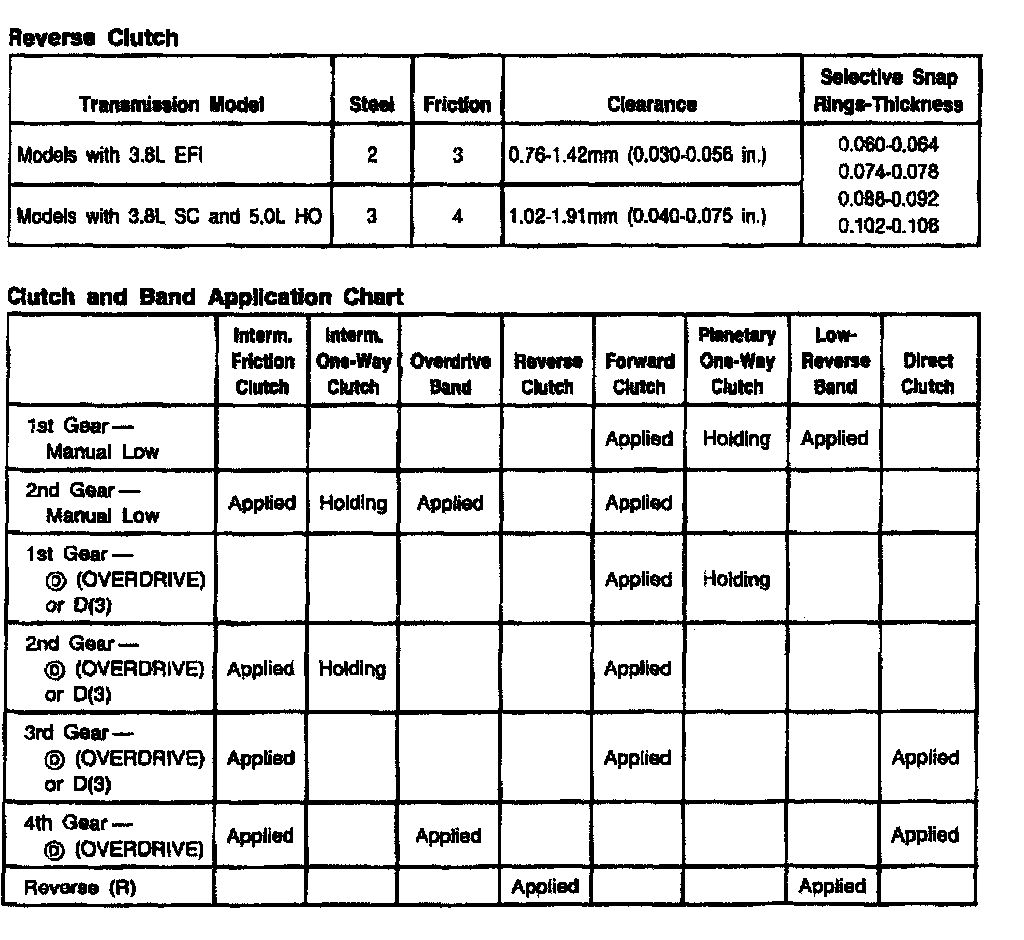

AODE 4-spd A/T, Thrust/Clutch/Band Application:

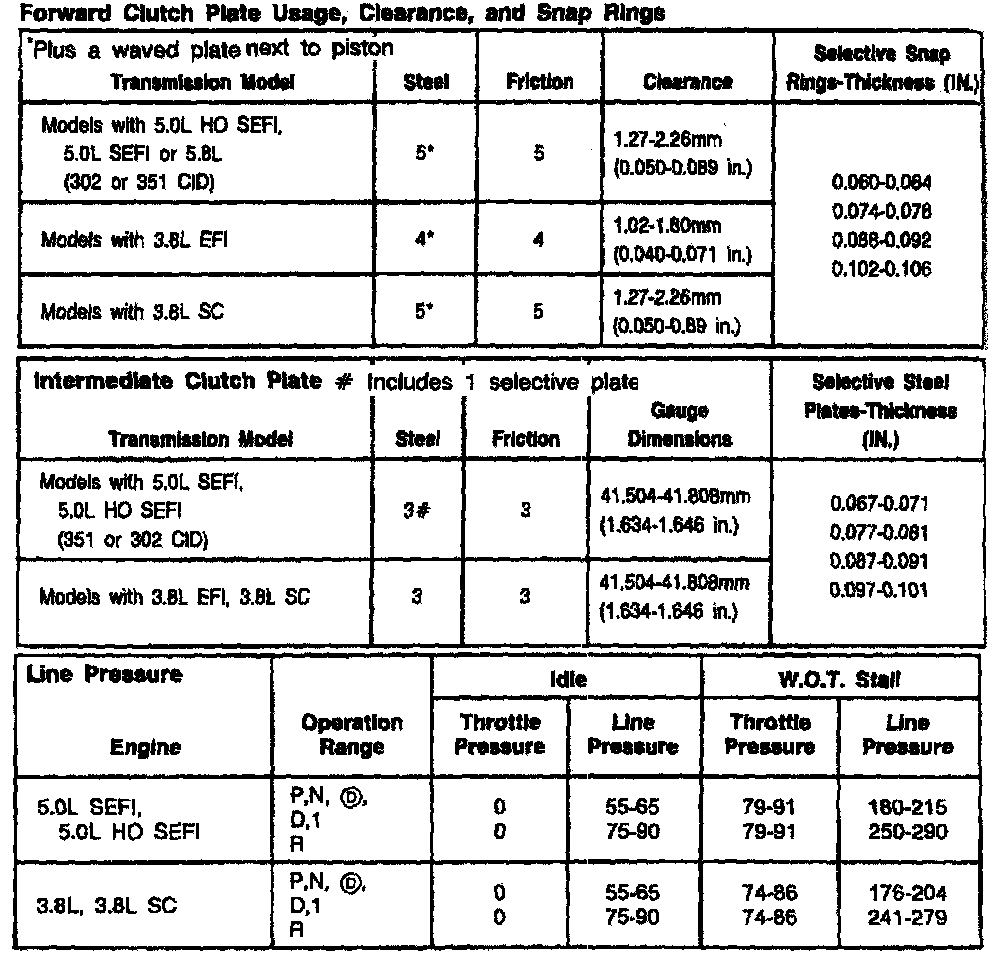

AODE 4-spd A/T, Clutch Plate/Line Pressure:

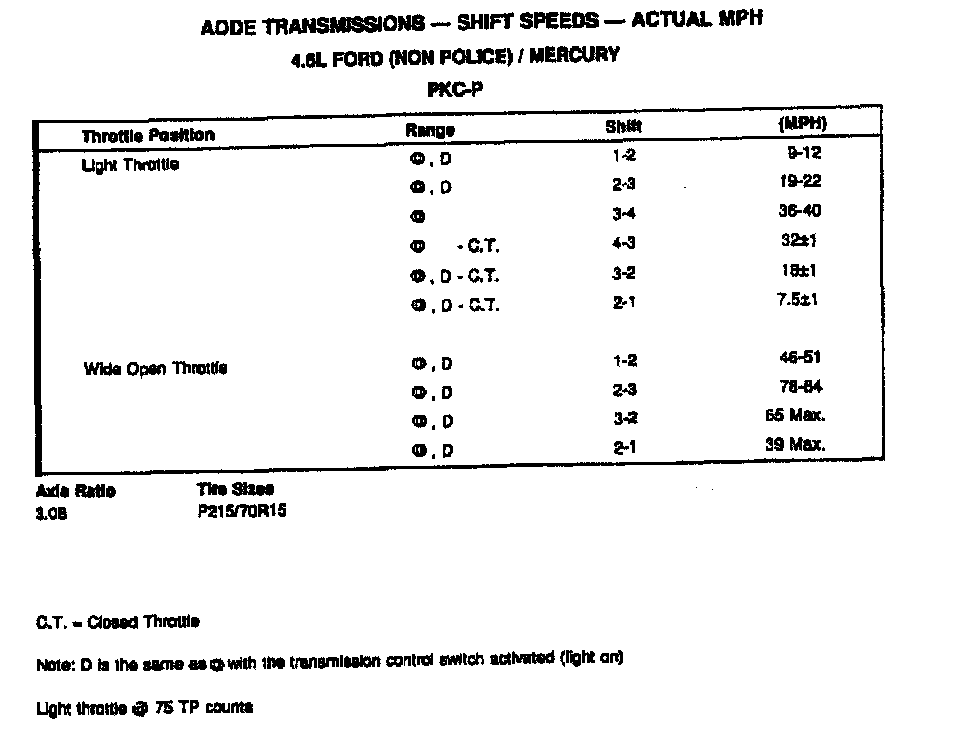

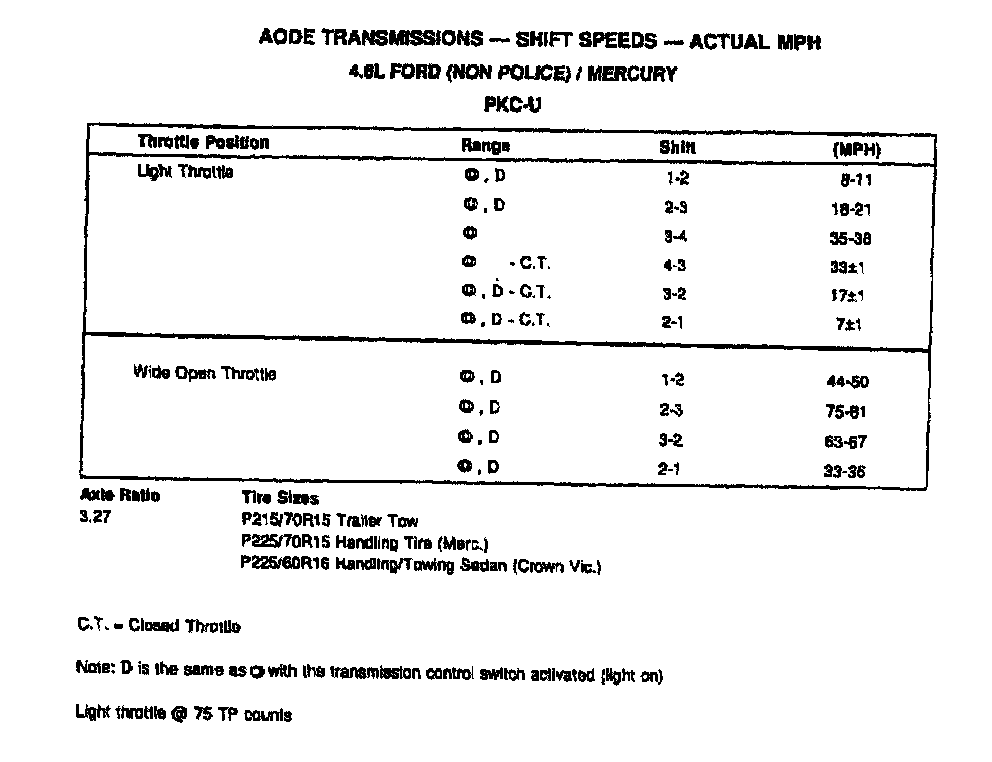

AODE 4-spd A/T, Shift Speeds (4.6L Ford/Mercury):

AODE 4-spd A/T, Shift Speeds (4.6L Ford/Mercury):

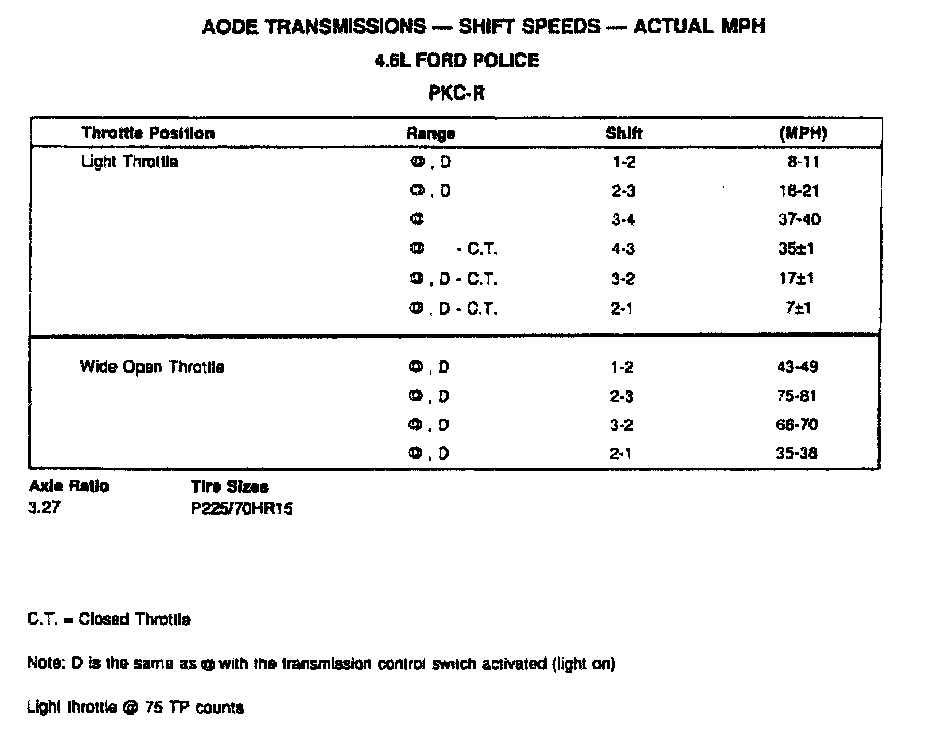

AODE 4-spd A/T, Shift Speeds (4.6L Ford Police):

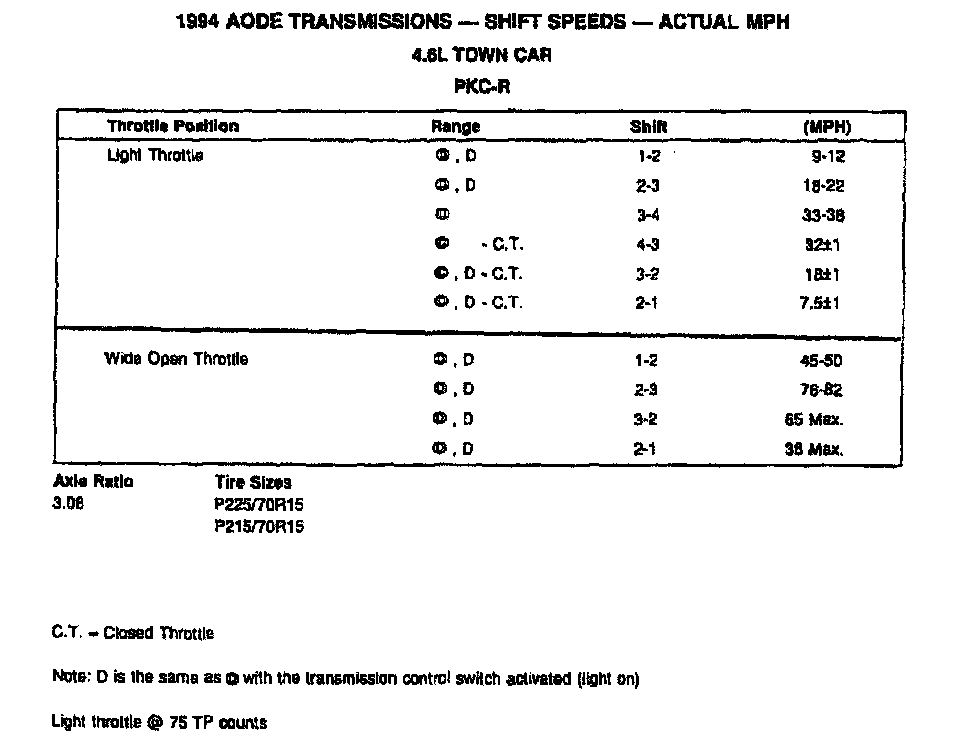

AODE 4-spd A/T, Shift Speeds (4.6L Town Car):

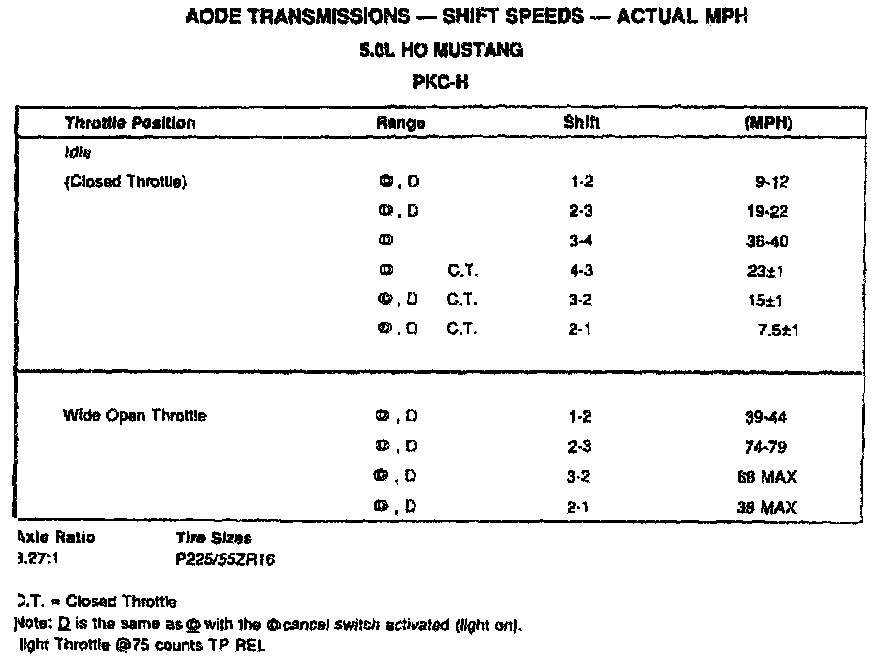

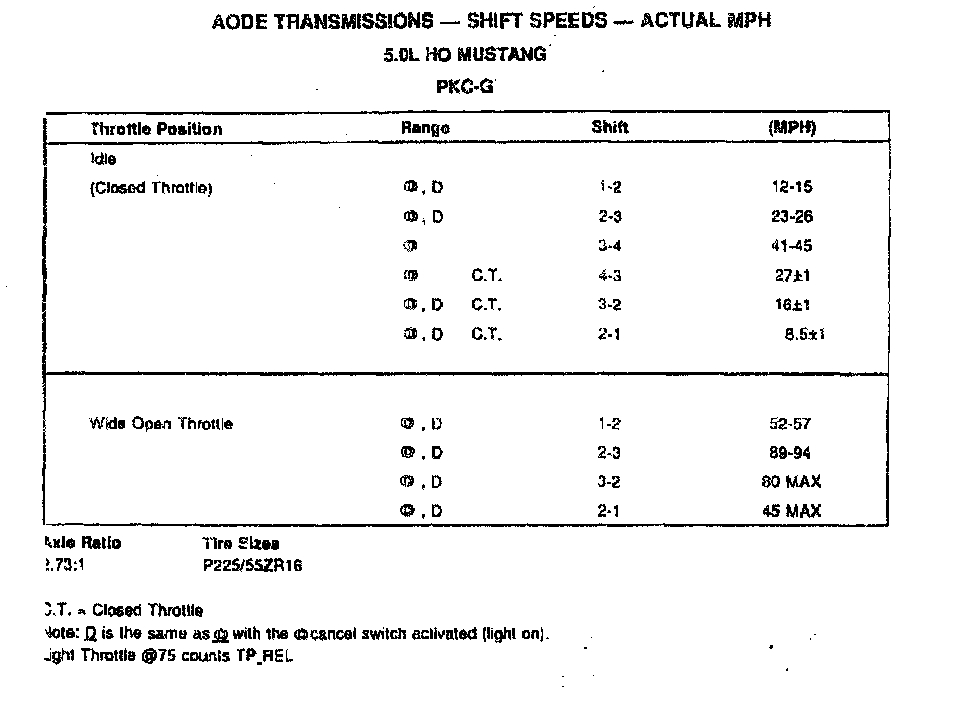

AODE 4-spd A/T, Shift Speeds (5.0L HO Mustang):

AODE 4-spd A/T, Shift Speeds (5.0L HO Mustang):

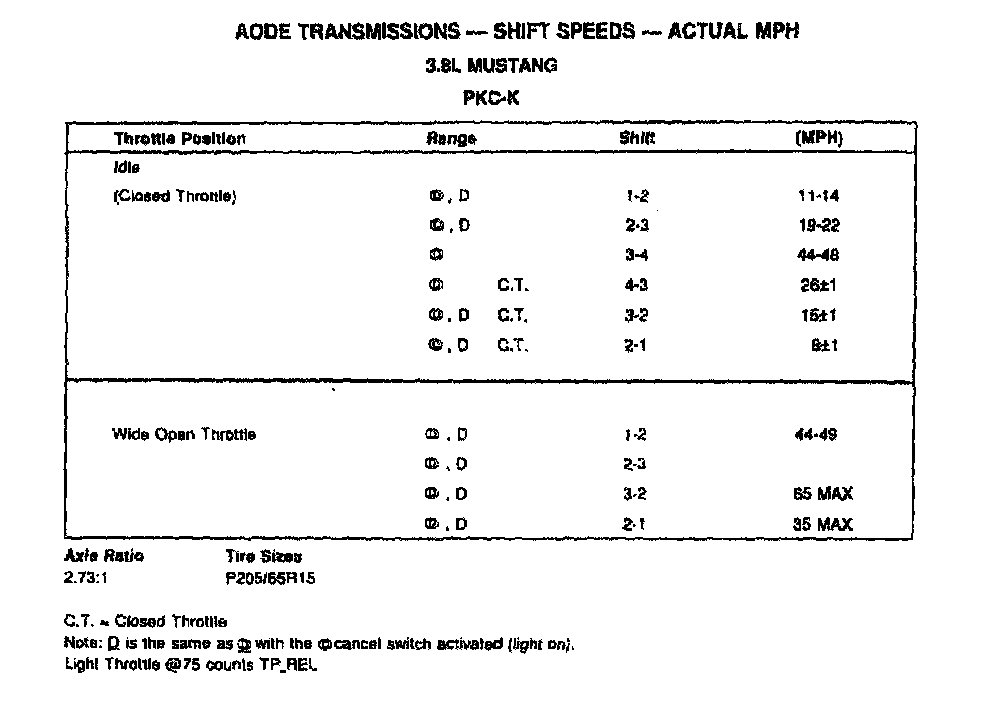

AODE 4-spd A/T, Shift Speeds (3.8L Mustang):
