Control Module: Locations

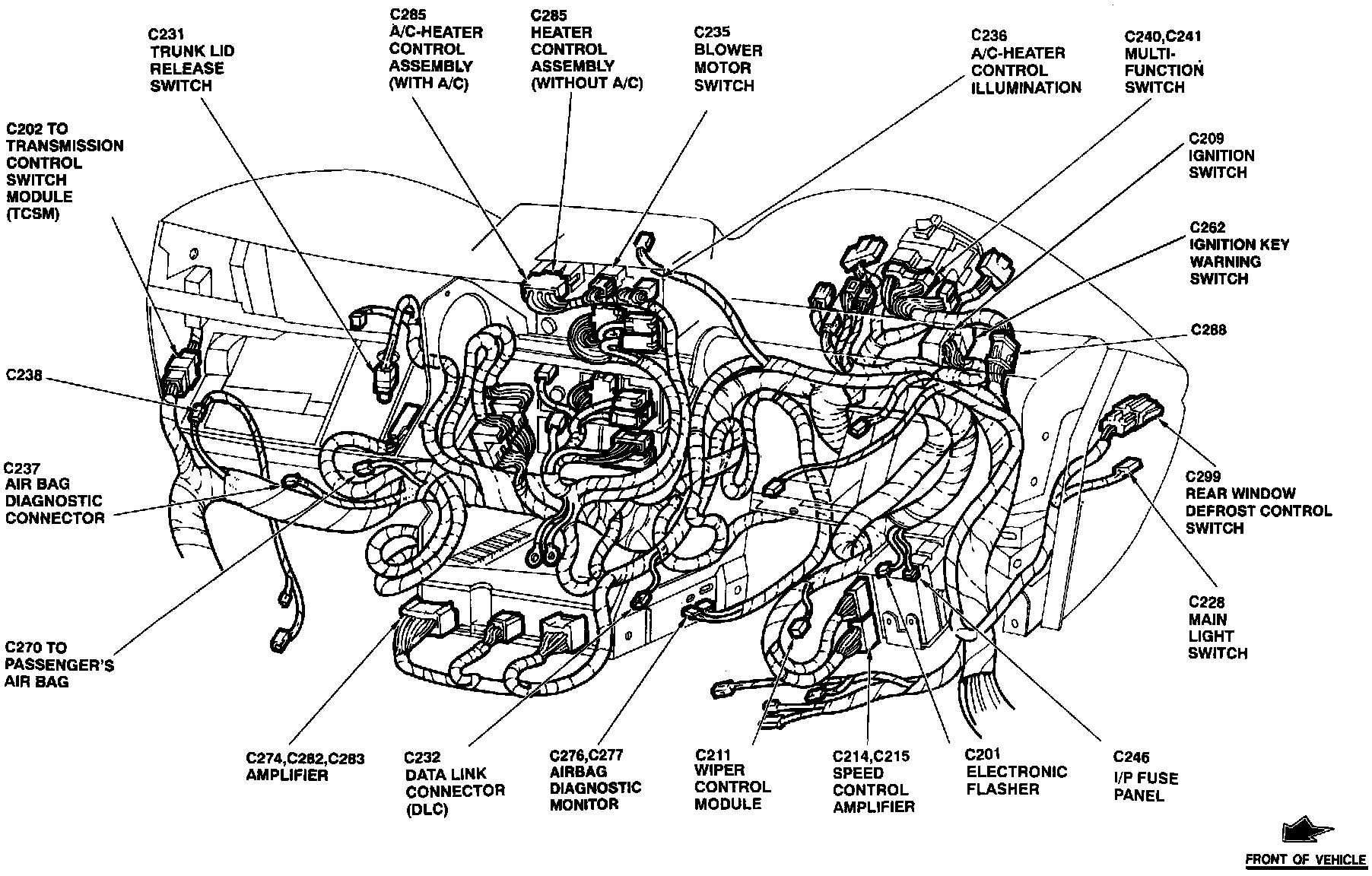

Instrument Panel View:





The Transmission Control Switch Module is located behind RH side of the instrument panel.
