Connector Identification

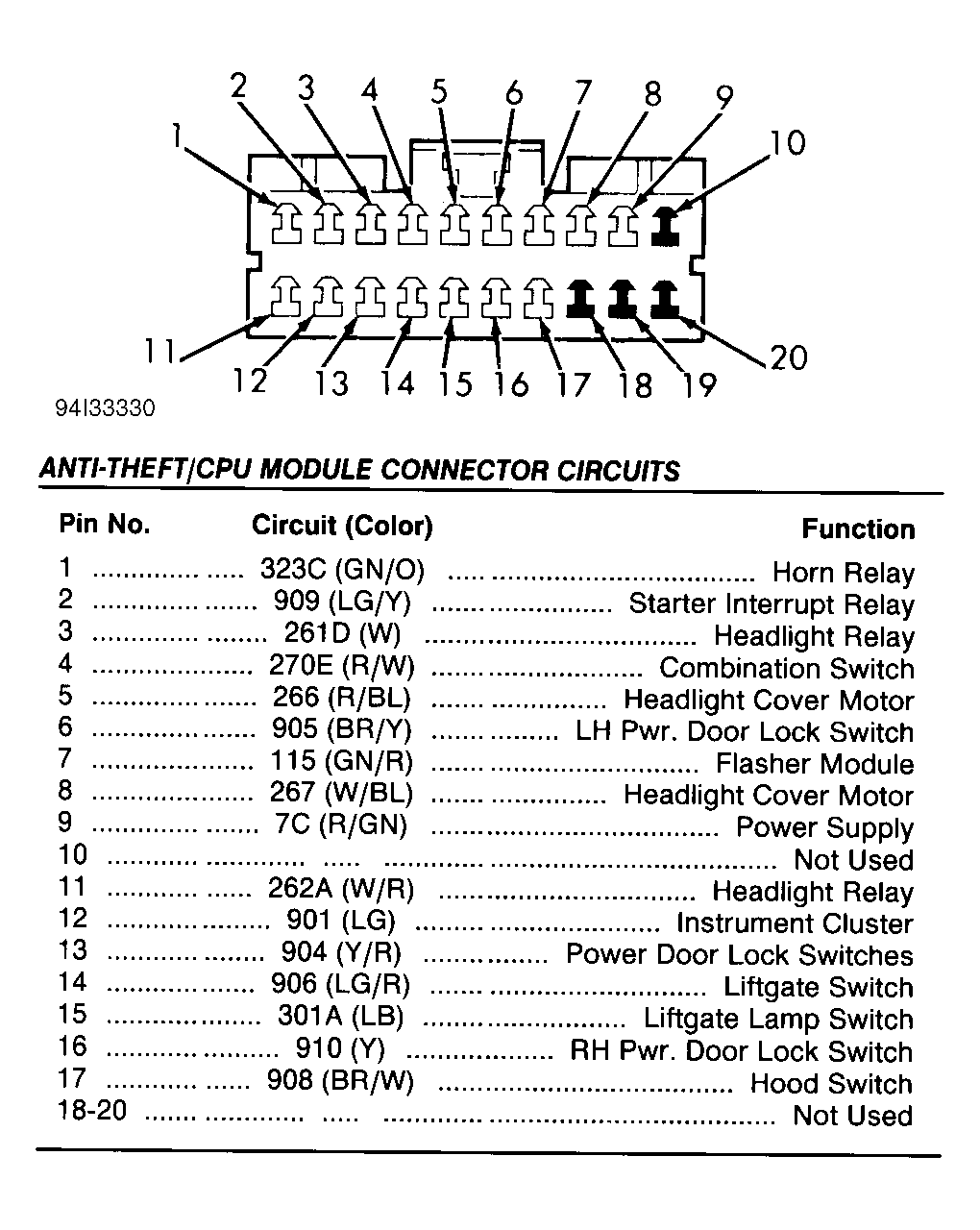

Fig 1: Identifying Anti-Theft/CPU Connector Terminals
G94I33330

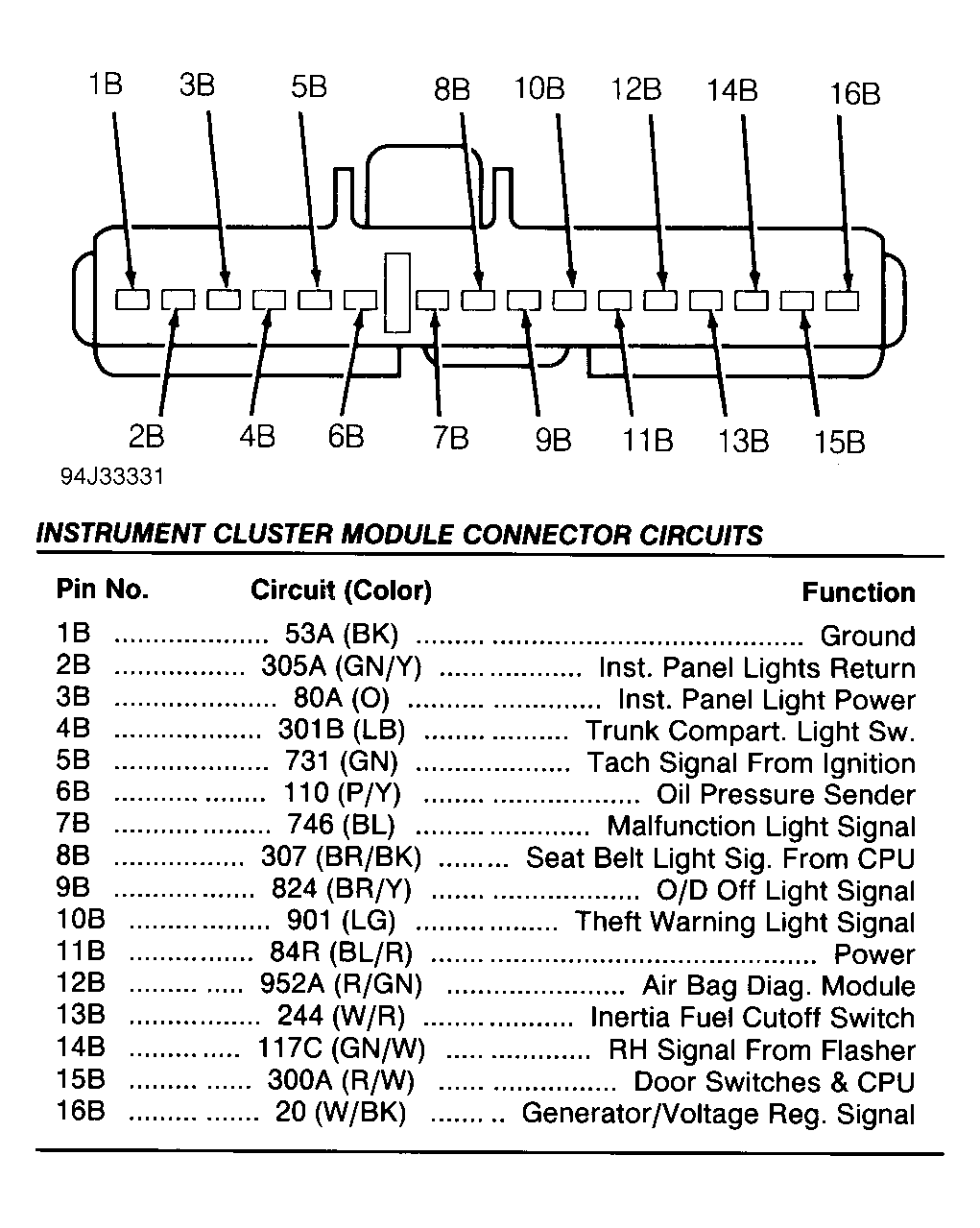

Fig 2: Identifying Instrument Cluster Module Connector Terminals
G94J33331

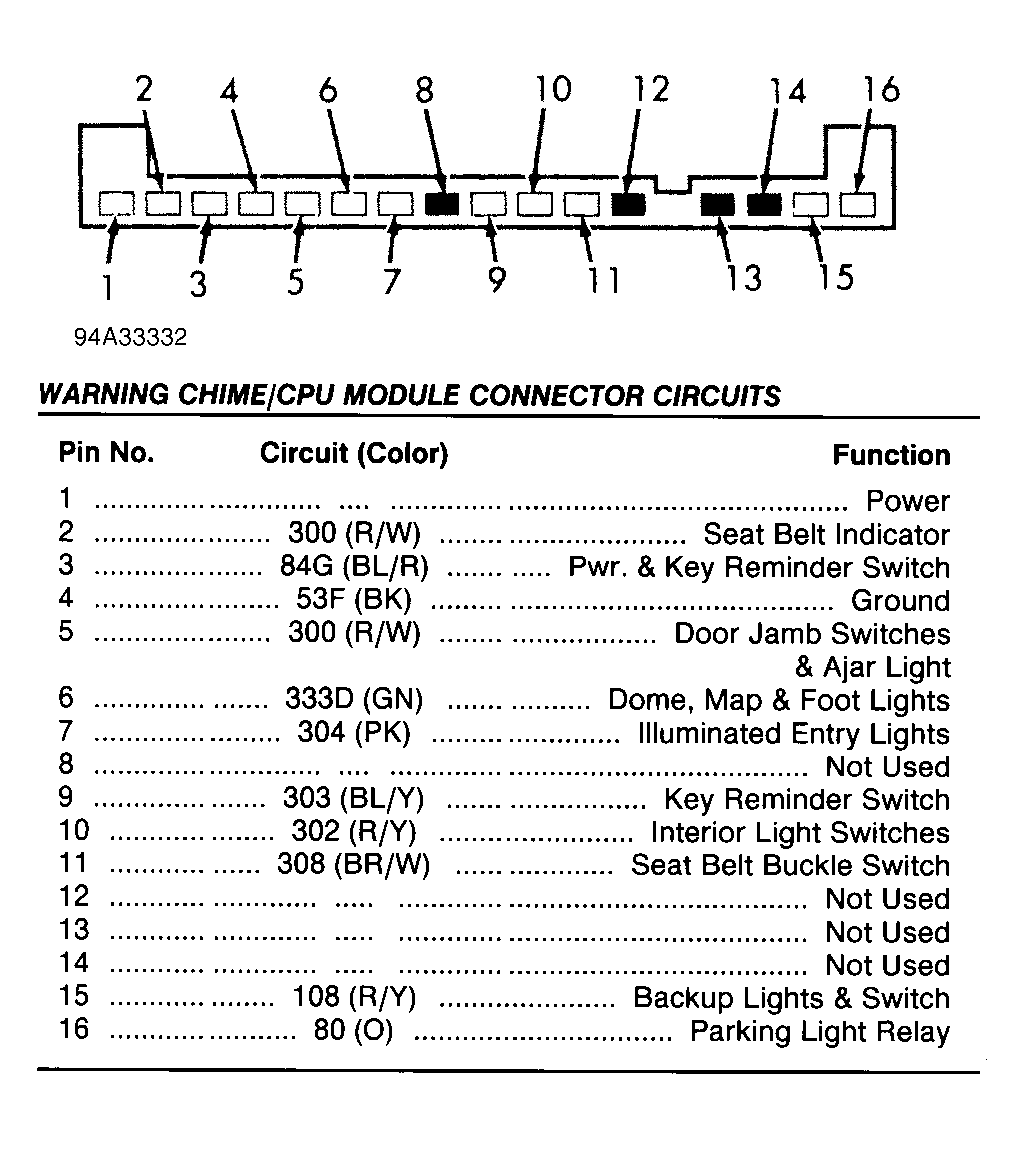

Fig 3: Identifying Warning Chime/CPU Module Connector Terminals
G94A33332

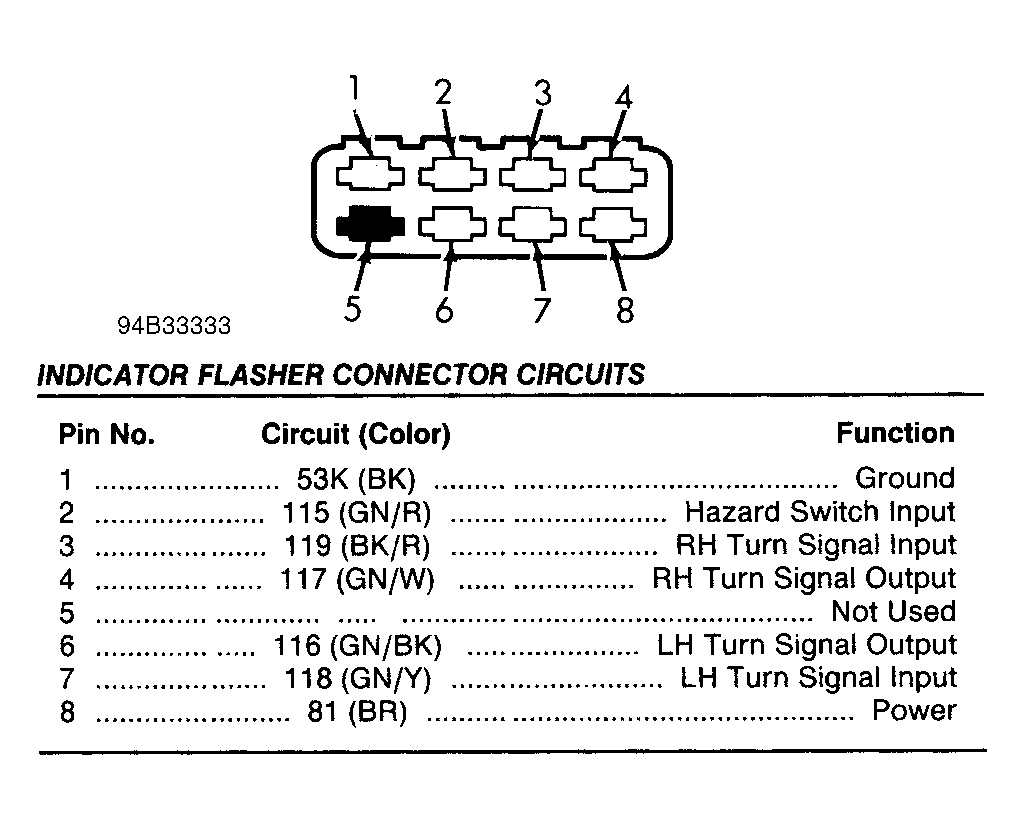

Fig 4: Identifying Flasher Module Connector Terminals
G94B33333

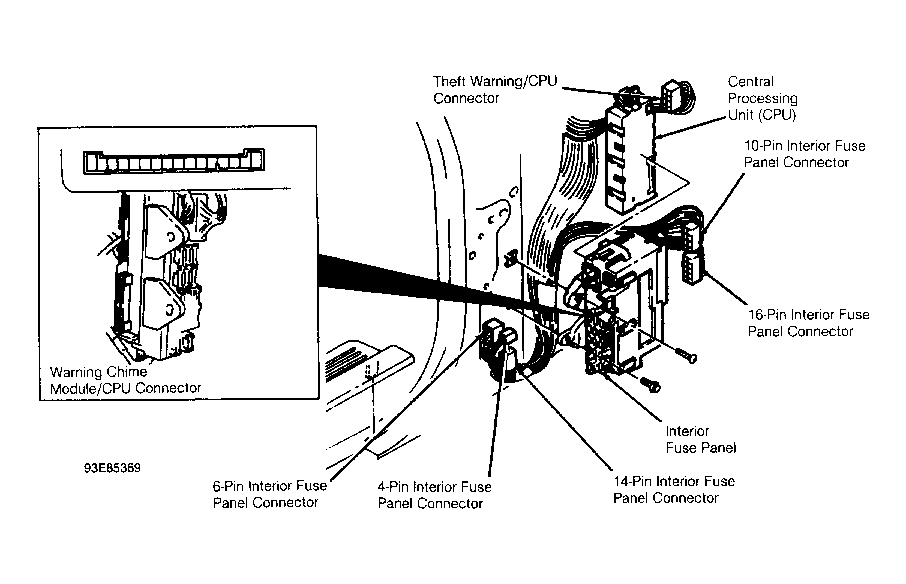

Fig 5: Locating Anti-Theft System Connectors
G93E85369
