Ignition Control Module: Diagrams
Ignition Control Module (C1068):

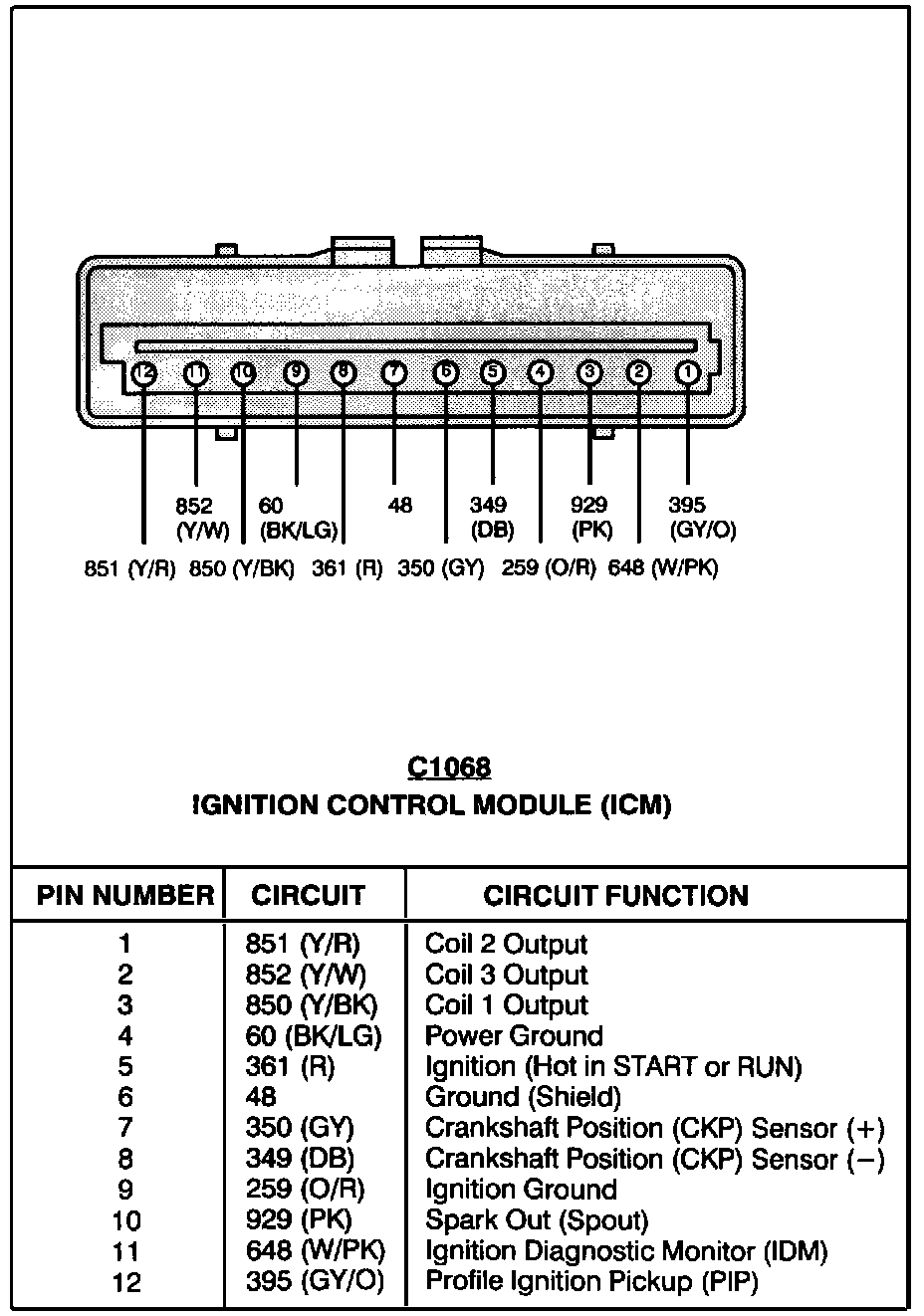

Connector View
Electronic Distributorless Ignition System (EDIS) Module:
Ignition Control Module
(ICM)

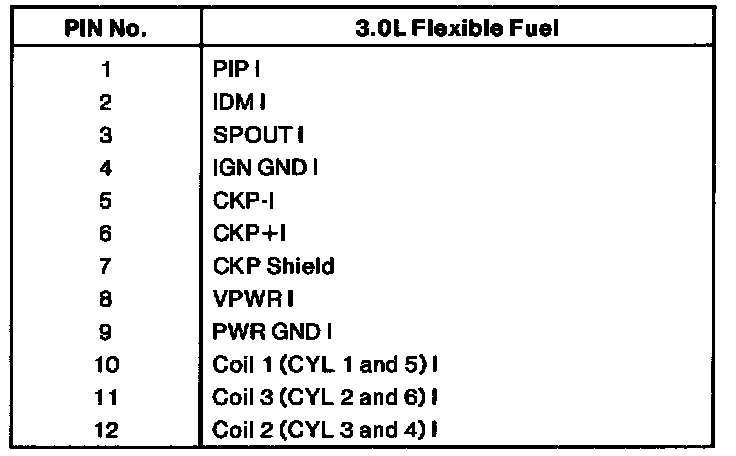

Pin-Out:
Pin-Out
