Compressor Clutch

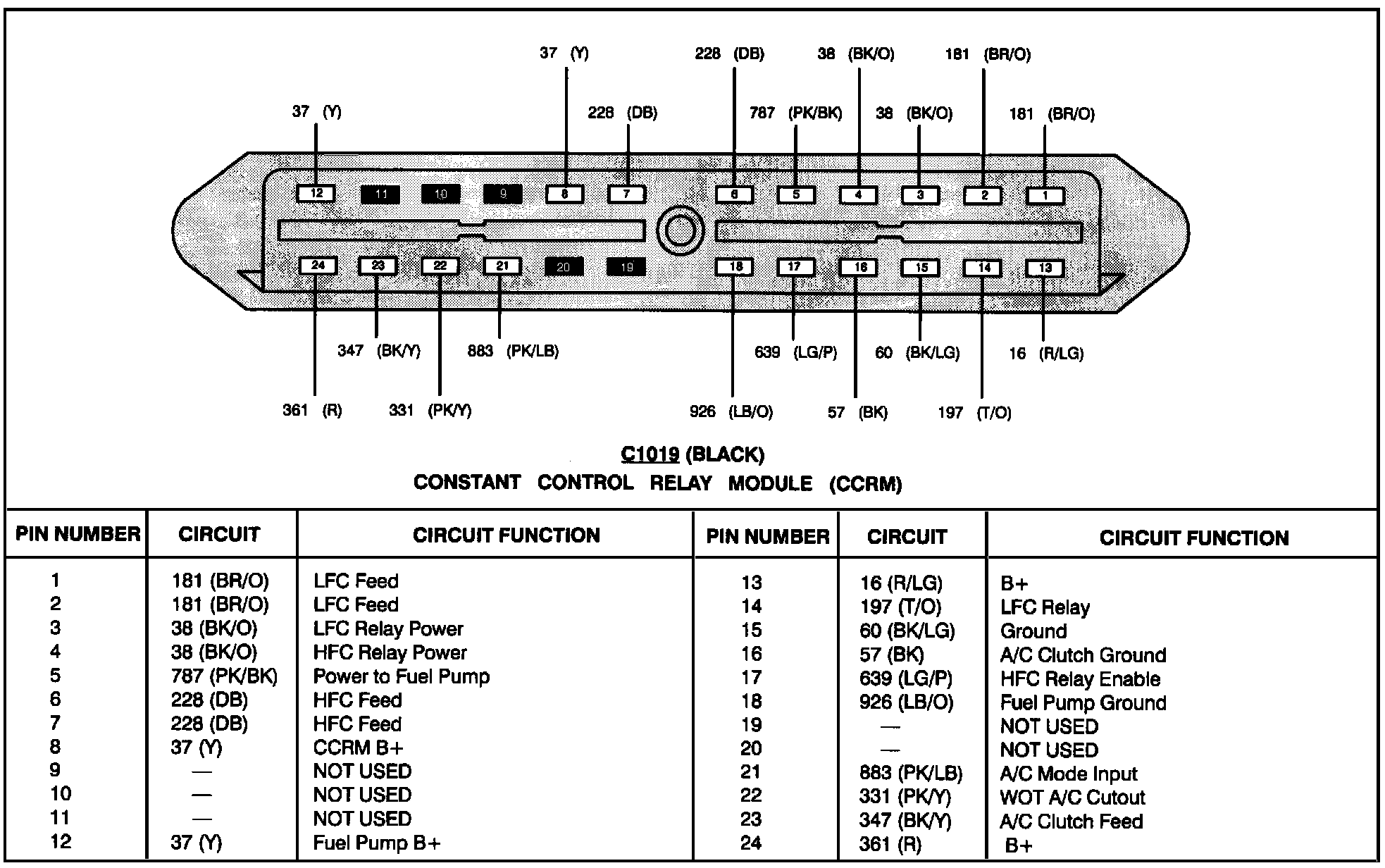

Constant Control Relay Module:
Constant Control Relay Module:
Constant Control Relay Module:
